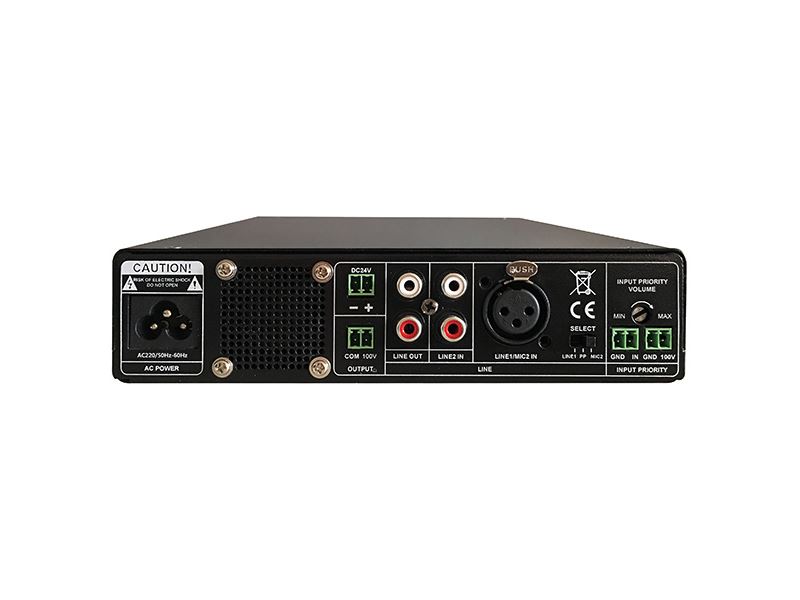

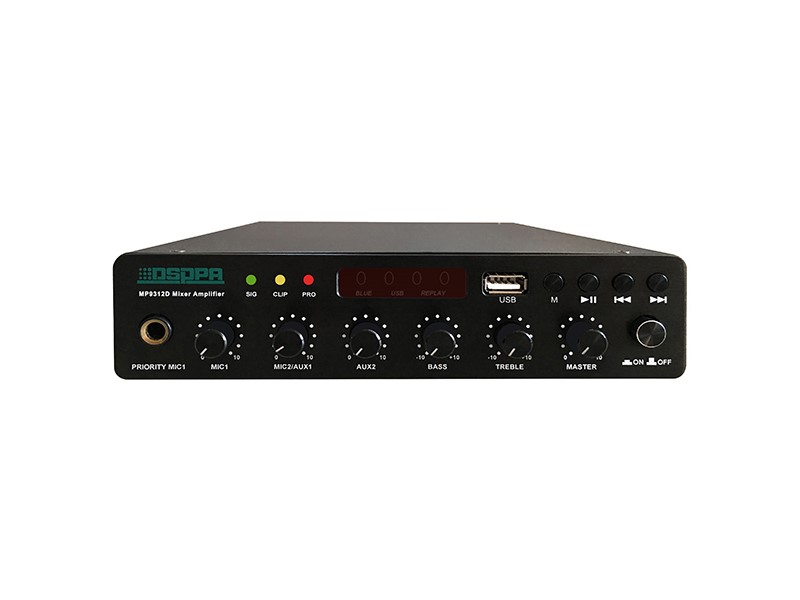

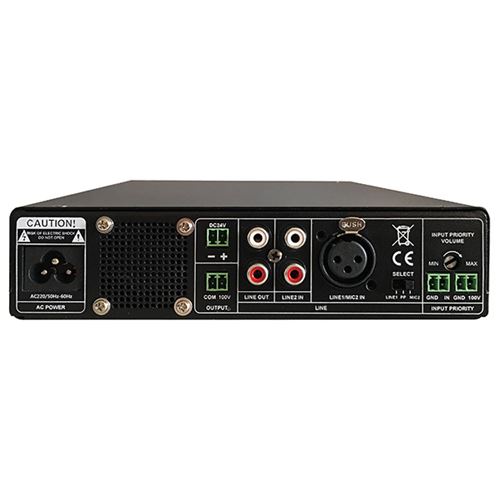

DSPPA 120 Watts Ultra Thin Digital Mixer Amplifier with Bluetooth & USB

MP-9312D

DSPPA

Whatsapp for enquiry Email for enquiry






This MP9312D Digital Mixer Amplifier is Built-in digital amplifier module, high efficiency (85%). This product is supported 2 AUX & 2 Mic inputs & 1 AUX output for power extension, Each AUX & Mic input with individual volume control and 100V speaker output for long distance transfer. It's called digital audio amplifier or dc voltage amplifier.


Features

● Built-in digital amplifier module, high efficiency (85%)
● Support Bluetooth and USB
● 2 AUX & 2 Mic inputs & 1 AUX output for power extension
● Each AUX & Mic input with individual volume control
● Mic 1 of 6.35mm in front panel, with priority & muting
● With priority input and 100V input
● Support both AC power and DC 24V power input
● 100V speaker output for long distance transfer


Model

MP9306D

MP9312D

Rated Power

60W

120W

Speaker Output

100V

Sensibility

MIC 1

0.005±1mV

MIC 2

0.006±1mV

Line, Priority in

0.3±20mV)VRMS

Priority in 100V

100 VRMS

SNR

MIC, Line 1

≥74db(Maximum)

Line 2, Priority in

≥80dBMaximum

Frequency Response

80Hz-15kHz±3dB

Distortion

≤0.5 %

Power Supply

DC24V, AC180-250V/50-60Hz

Tone

Bass

±10dB 100Hz

Treble

±10dB 100Hz

Power Consumption

180W

90W

Packing SizeW×H×L

310×275×120mm

Product SizeW×H×L

200×190×44mm

Net Weight

1.5kg

Gross Weight

2kg
