SWITCHCRAFT QUALITY XLRs WITH A SPACE SAVING DESIGN

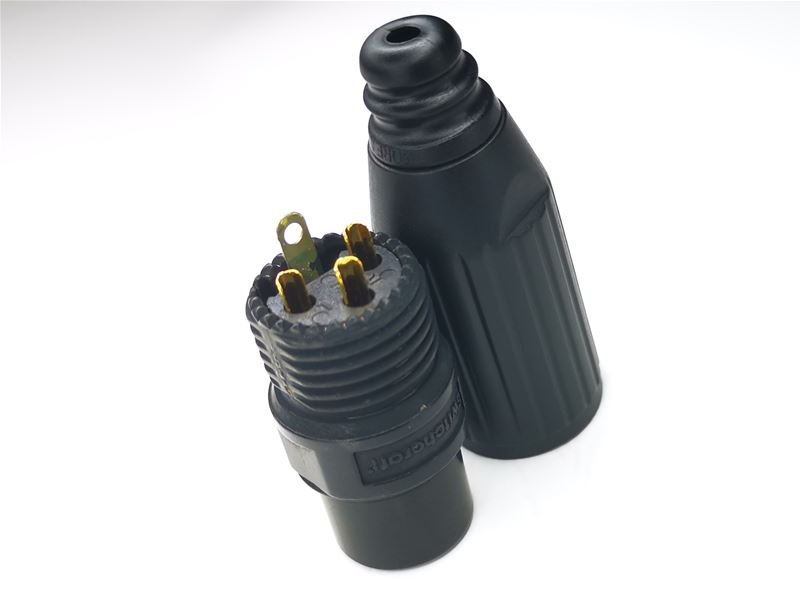

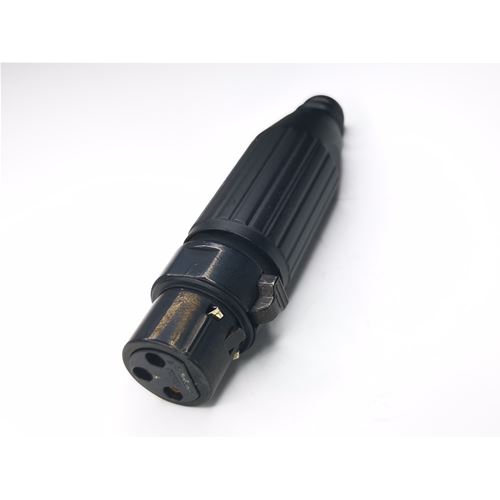

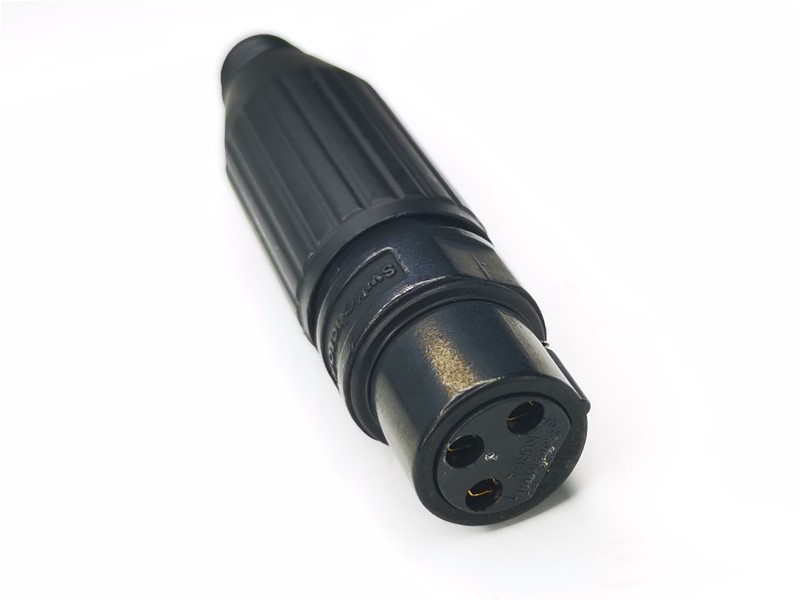

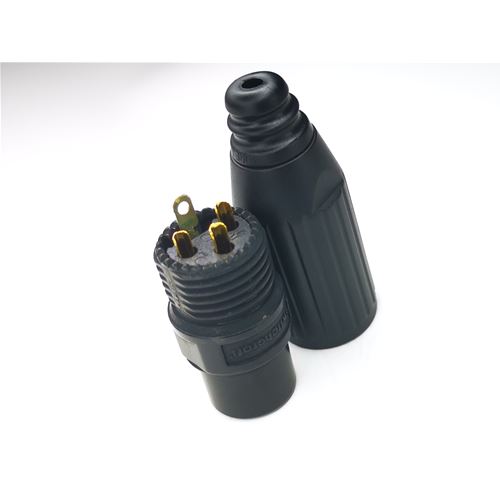

AAA Series XLRs from Switchcraft are known for their durability and ease of use. This new low-profile design pairs the same connector body with a smaller plastic backshell for applications where small size and low weight are critial. 3-7 position connectors with male or female contacts are available in 4 different colors. Other colors and combinations are available from the factory.
Configuration
- Number of Conductors: 3
- Product Line: QG
- Mounting Type: Cord
- Mounting Feature: Chuck-Style Strain Relief
- Gender: Female
- Contact Size: 14 AWG
- Termination Style: Solder Cup
- Contact Plating: Gold
- Color: Black
- Locking: Locking
- Handle Material: Zinc
- Packaging Type: Bulk
- Standard Connector Type: XLR
Electrical
- Contact Resistance: 0.05 Ohms
- Dielectric Withstanding Voltage: 1000 Volts
- Insulation Resistance: 1000 MOhms
- Current Rating: 15 Amps
Mechanical
- Operating Force: 7 lbs
- Coupling Locking Style: Button Latch
Environmental
- Shielding: Shielded
Certification
- RoHS Compliant: Compliant
- REACH Compliant: Compliant
- Brand: Switchcraft
Dimensional
- Cable Opening: 0.22 in
Material
- Contact Material: Copper Alloy
- Contact Plating Type: Gold
- Insert Material Type: Molded Thermoplastic
