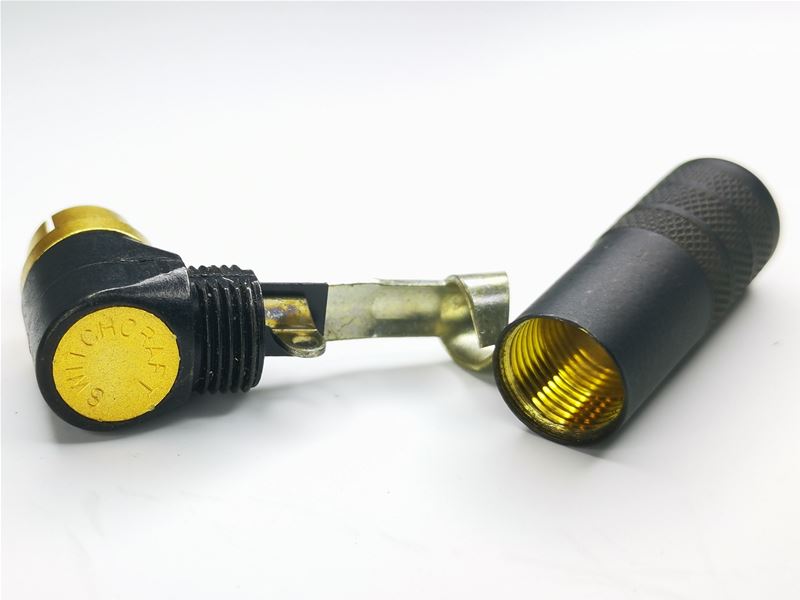

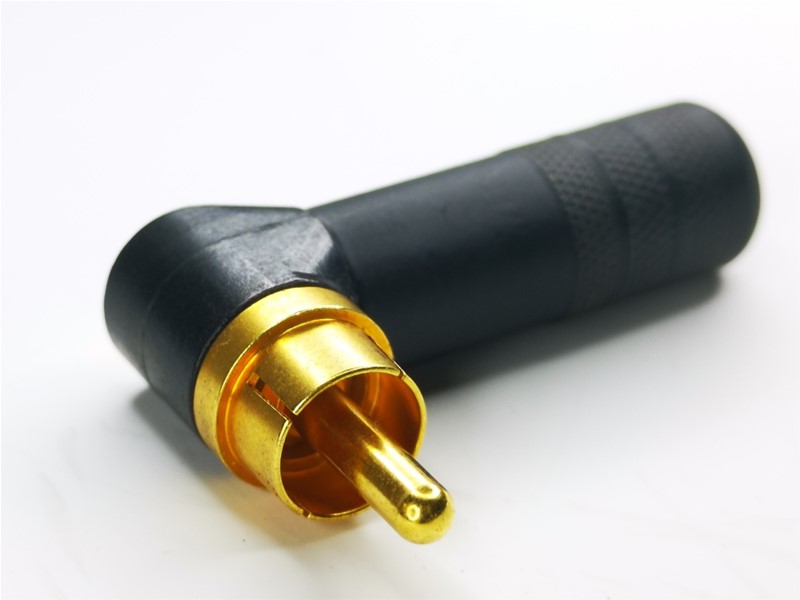

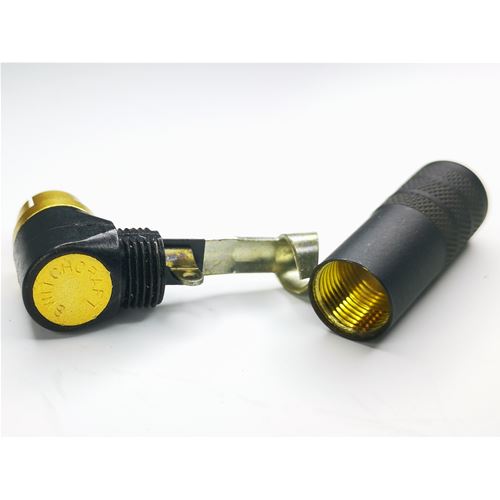

SWITCHCRAFT’S RCA PLUGS feature an easy-to-assemble construction: a handle and plug assembly. The plug features a solid-pin design and large solder terminals that make termination faster and easier. The reduced profile makes it perfect for use behind equipment where space is at a premium. The larger cable clamp and handle will accommodate a variety of cable sizes.
Configuration
- Number of Conductors: 2
- Mounting Type: Cord
- Termination Style: Solder Cup
- Contact Plating: Gold
- Color: Black
- Handle Material: Brass
- Standard Connector Type: RCA
- Jack-Plug Type: Plug
Electrical
- Contact Resistance: 0.02 Ohms
- Dielectric Withstanding Voltage: 500 Volts
- Insulation Resistance: 1000 MOhms
- Voltage Rating: 250 Volts
- Current Rating: 6 Amps
Environmental
- Maxiumum Temperature: 85 C
Certification
- RoHS Compliant: Compliant
- REACH Compliant: Compliant
- Brand: Switchcraft
Material
- Contact Material: Copper Alloy
