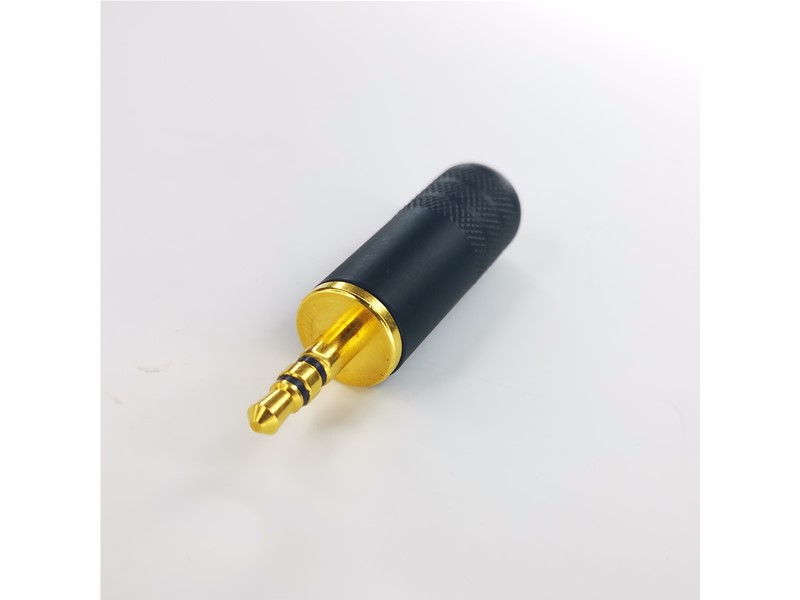

Features:
- One piece tip rod with flat for easy solderability.
- Compliments current line of 3.5 mm jacks.
- Insert molded plug finger.

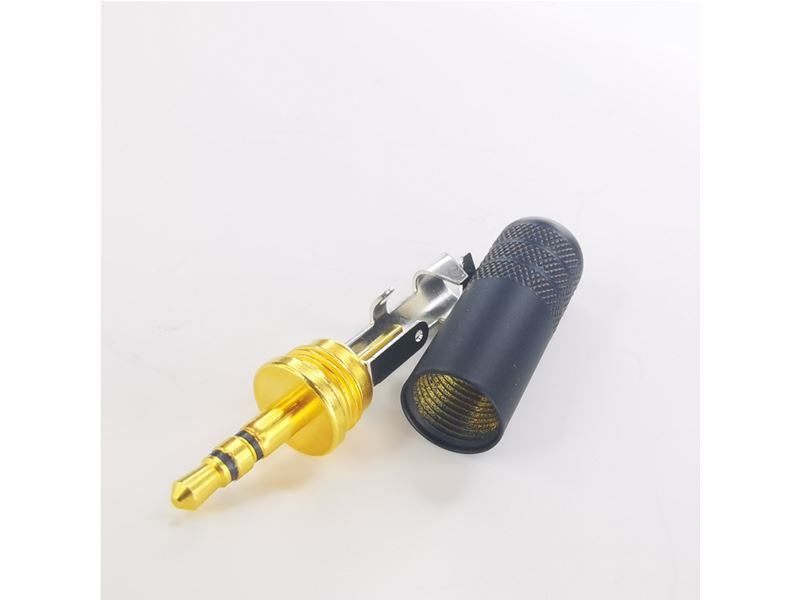

- Heavy Duty cable clamp provides better strain relief for larger cables
- Longer cable clamp for easier plug assembly and more room for solder connections
- Knurl on the back of handle provides ergonomic gripping surface to tighten plug
- Tubular insulator included to prevent solder joints from contacting handle
- Longer handle for improved gripping surface and easy plug withdrawal from jack
- Large solder terminal for easy solderability
Configuration
- Number of Conductors: 3
- Product Line: 35HD
- Mounting Type: Cord
- Termination Style: Solder
- Color: Black
- Locking: Non-Locking
- Sealed: Not Sealed
- Packaging Type: Bulk
- Standard Connector Type: 3.5mm Jacks & Plugs
- Jack-Plug Type: Plug
Electrical
- Contact Resistance: 0.02 Ohms
- Dielectric Withstanding Voltage: 250 Volts
- Insulation Resistance: 2000 MOhms
- Voltage Rating: 250 Volts
- Current Rating: 4 Amps
Mechanical
- Life Cycle: 5000 Cycles
- Operating Force: 2.5 lbs
Environmental
- Shielding: Shielded
- Mechanical Shock: MIL-STD-202F Method 107G
- Vibration: MIL-STD-202 Method 201
- Maxiumum Temperature: 66 C
Certification
- RoHS Compliant: 1
- REACH Compliant: 1
- Brand: Switchcraft
Dimensional
- Cable Opening: 0.29 in
Material
- Contact Plating Type: Gold
- Terminal Material: Copper Alloy Tin-Plated
