DSSPA Chairman Microphone with Voting Function

D6221

DSPPA

Whatsapp for enquiry Email for enquiry

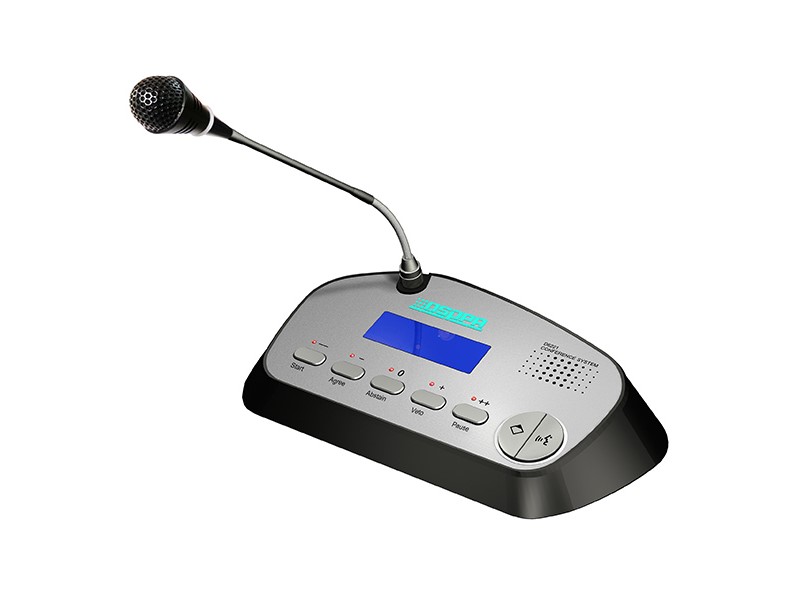

D6221 Desktop Chairman Speech/Vote Unit provides functions such as speech, vote, check-in and self-checking. This chairman speaker adopt goose-neck microphone, built-in magnetic loudspeaker, headphone jack, and also provide power-on indicating light and button and light indicators. In VOICE mode, it can realize voice controller on/off function. The chairman loudspeaker has high speed digital processors and HiFi audio circuits, and can indicate the work status of LCD screen. Chairman unit has the priority to deliver speeches and the authority to approve speech application from delegates. It can call for voting and is free from limitations on number of spokesman. It has the full authority to take control on the discipline at the conference site; in a D62 series digital conference system, it allows 2 chairman units at a same time, and the position of chairman units is free from position restrictions. Conference units are passive equipment and are powered by the controllers. The input voltage is 24V; they are easy to use, with clear voice and easy to install with fashionable appearance.


Features

● Speech and voting functions integrated
● Built-in magnet HiFi speaker
● High brightness LCD screen
● 5 vote buttons and chairman priority button
● Conference check-in function
● Automatic camera tracking function when used with camera
● Approve applications of delegates for speeches
● Removable goose-neck.
● Goose-neck length: 315/320/415/430 mm


Model

D6221/D6222

Structure and Type

Desktop

Output frequency response

45Hz-18kHz-3dB

Speaker Power

1.5W

Static power consumption

<1W

Max. power consumption

2W

SNR

>80dB

Crosstalk Attenuation

>80dB

Harmonic distortion

<0.5%

Headphone Output

9dBu, 8-32Ω, 3.5mm

Working Power Supply

DC 24V power supply

Port on the unit

8pin DIN socket

Microphone

Type of microphone

Electret, heart-shaped, condenser type

Frequency response

40Hz-20kHz-3dB

Sensitivity

-45dBV/pa

Input impedance

2kΩ

Equivalent Noise

20dB (SPL)

Max SPL

125dB (THD<3%)
