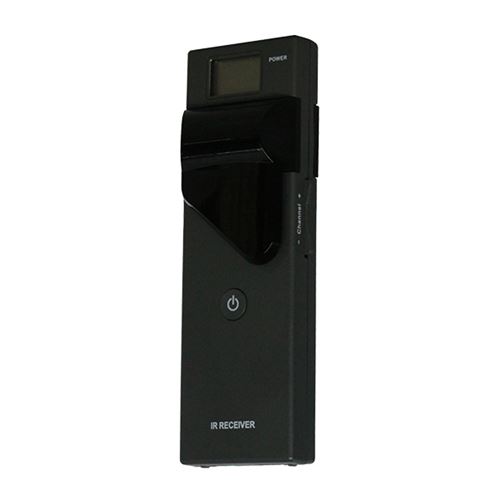

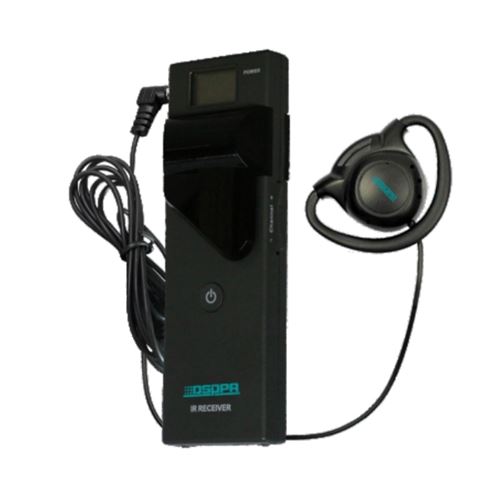

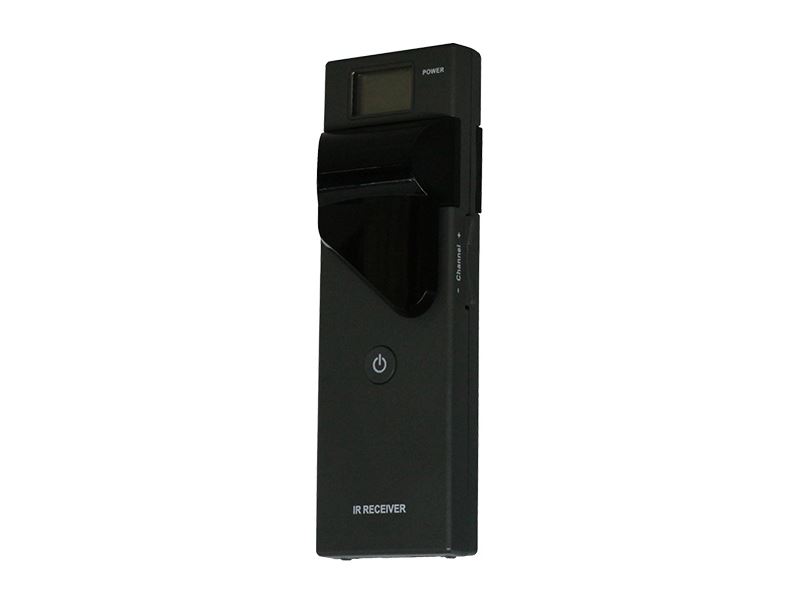

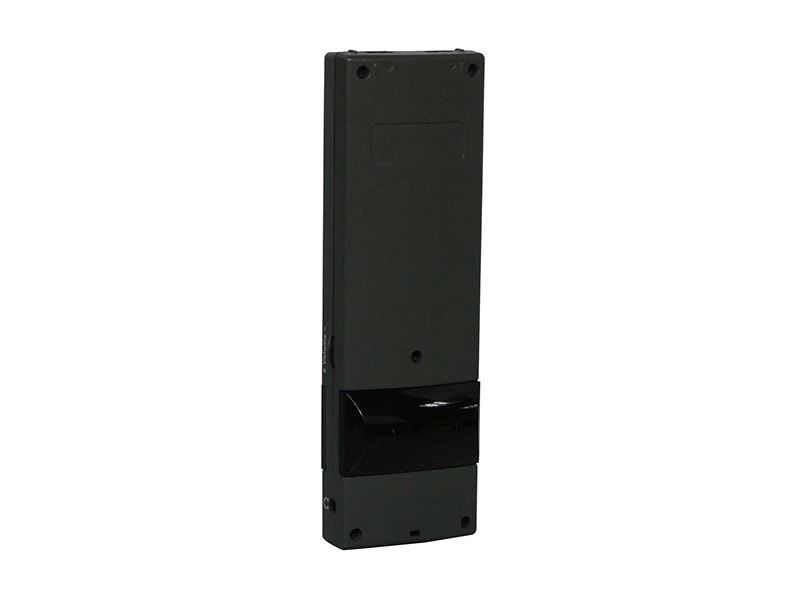

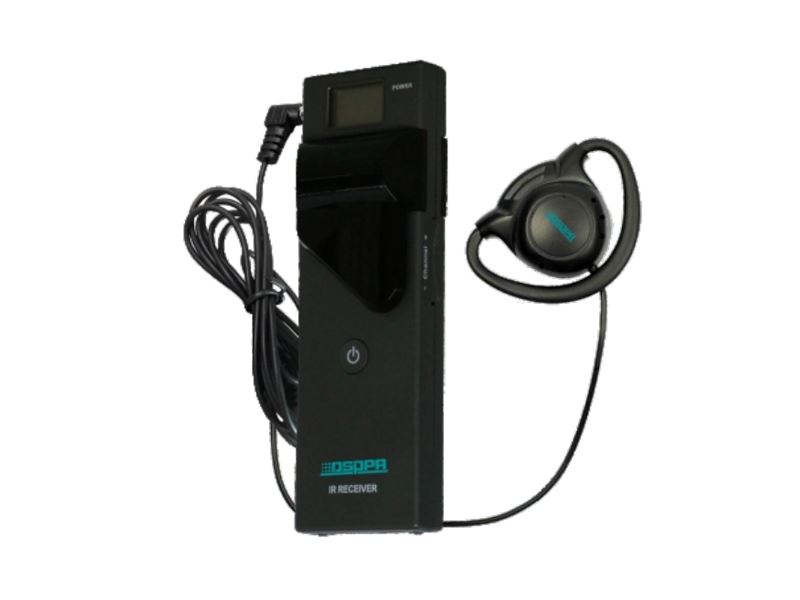

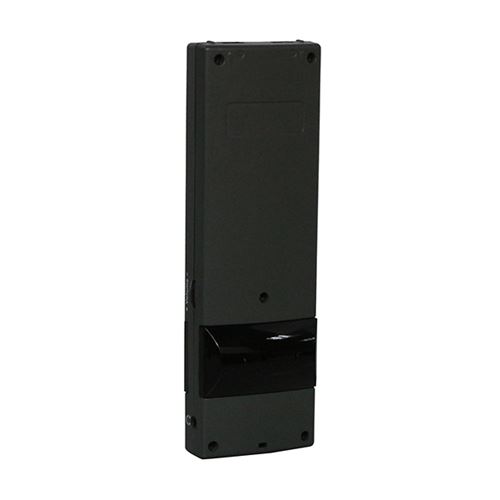

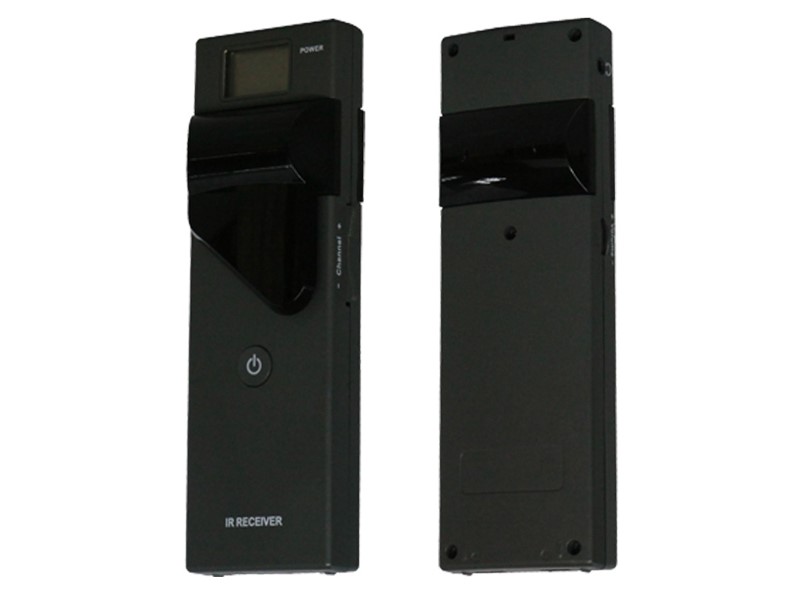

DSPPA 12 Channel Infrared Receiving Unit

D6325

DSPPA

Whatsapp for enquiry Email for enquiry






D6325 is a receiving unit with super infrared receiving capability. It can receive up to 12 channels, without interference to each other. LCD display function can show the channel number. When the electricity is seriously insufficient, the device automatically shuts off. It plays a role in protecting the battery and prolongs the service lifespan of the battery.


Features

● With head mounted double sided headphones, easy to wear and comfortable;
● With more powerful MCU, the control performance of the whole machine is further improved;
● Not contain a microphone, only the receiver, the microphone is quoted separately


Model

D6325

Total harmonic distortion

<1%

Signal-to-noise ratio(S/N)

>80dB

Frequency response

8KHz

Am suppression

>45dB

Distortion

<1.5%

Received power

2M~20MHz

Intermediate frequency(IF)

10.7MHz

Modulation

FM

Rated frequency difference

±6KHz

Signal reduction

150s

Power Supply

The built-in lithium battery,3.7V/750mA

Dimension(L×W×H mm)

105×50×19

Net weight

0.15kg
