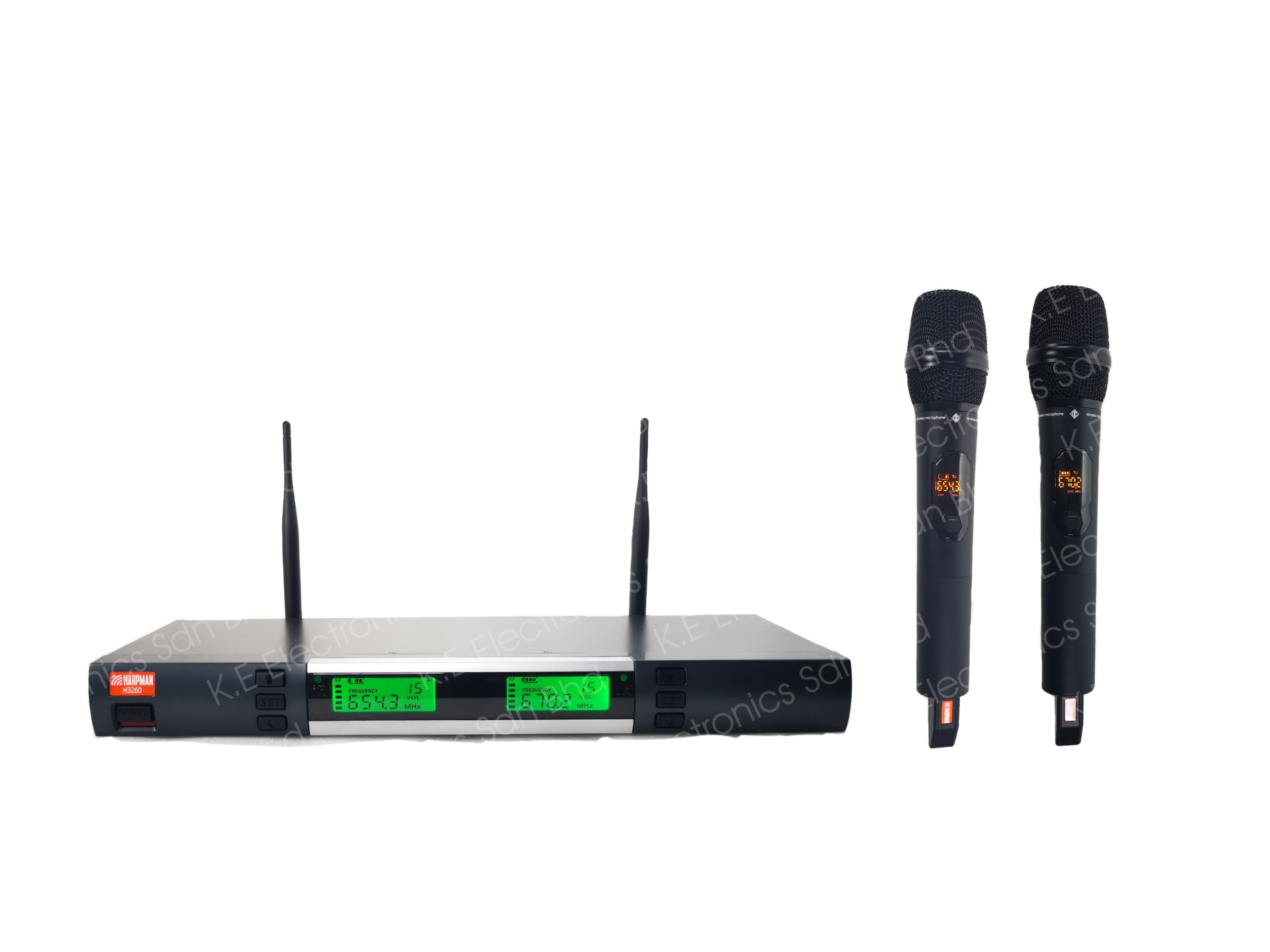

Introducing the Harpman H-3260H Dual Channel Handheld UHF Wireless Microphone System, this wireless microphone system is suitable for any type of scenario, whether it is on live event, surau/masjid or even home use, it fits them all. The Harpman H-3260H also provide independent volume control knob for 2 channel and 2 balanced output (XLR) & 1 unbalanced output (1'/4" Plug) depending on the user demands. It also comes with 2x microphone holder, 4x AA size battery and 1 meter 1/4" (6.35mm) mono to mono audio cable.
Comprehensive Characteristics
| Carrier Frequency Range: | 640MHz-690MHz |
| Bandwidth: | 60MHz |
| Modulation Method: | FM Frequency Modulation |
| Maximum Frequency Deviation: | ±45KHz |
| Frequency Response: | 100Hz-300Hz |
| Signal-to-noise ratio (S/N): | >50dB |
| Distortion (1kDz): | <5% |
| Working Temperature: | -10°C ~ 55°C |
| Power Consumption: | 8W |
| Static Power: | 3W |

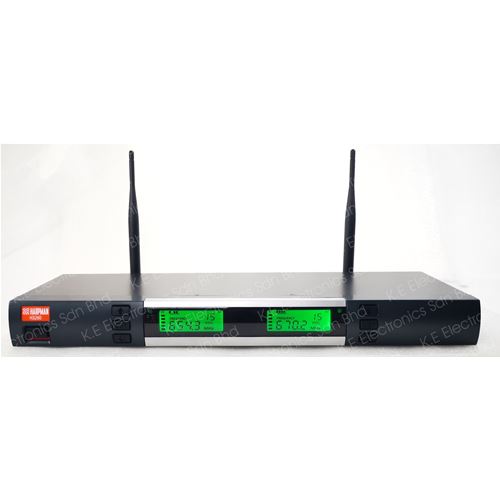

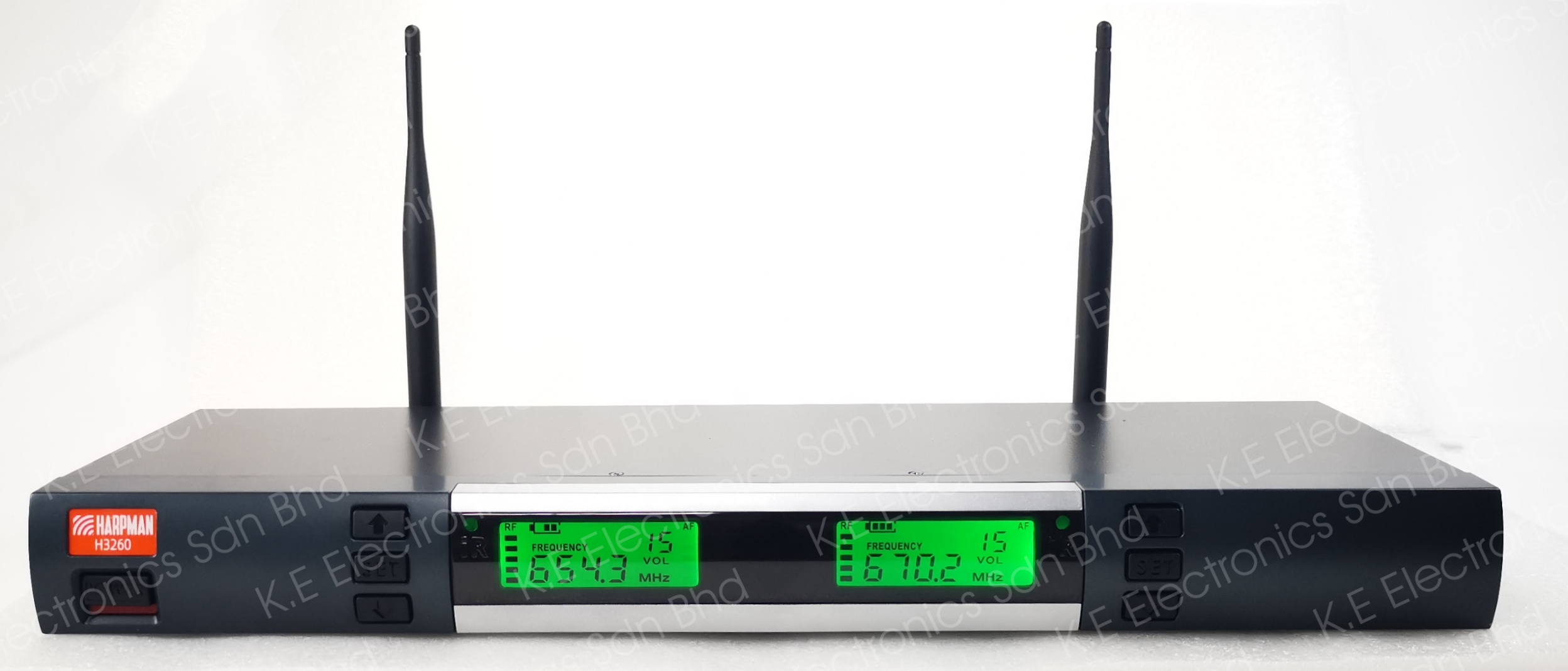

Receiver
| Oscillation Mode: | PLL (Digital Synthesizer) |
| Spurious Suppression: | ≥50dB |
| Image Rejection: | ≥50dB |
| Sensitivity: | 5dBuV |
| Audio Output Level: |
|
| Balanced Output (XLR Output Jack) | 250mV/600Ω |
| Unbalanced Output (1/4" Output Jack): | 400mV/3KΩ |
| Working Voltage: | DC 12-18V |
| Working Current: | ≤350mA |
| Chassis Size: | 420(W) x 155(D) x 42(H) mm |

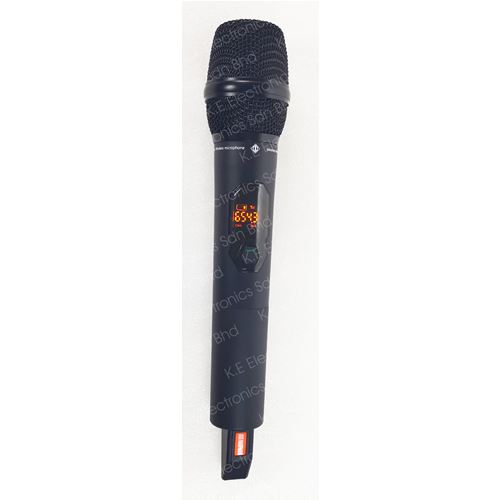

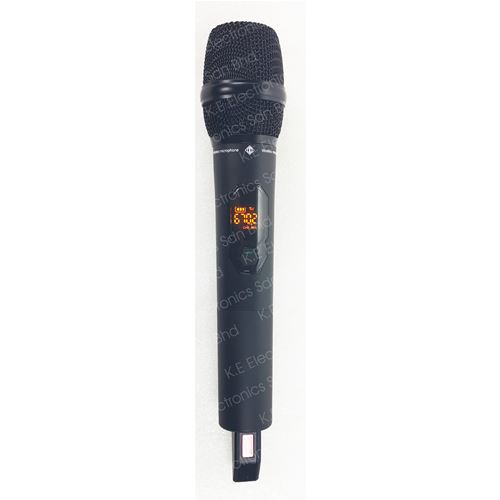

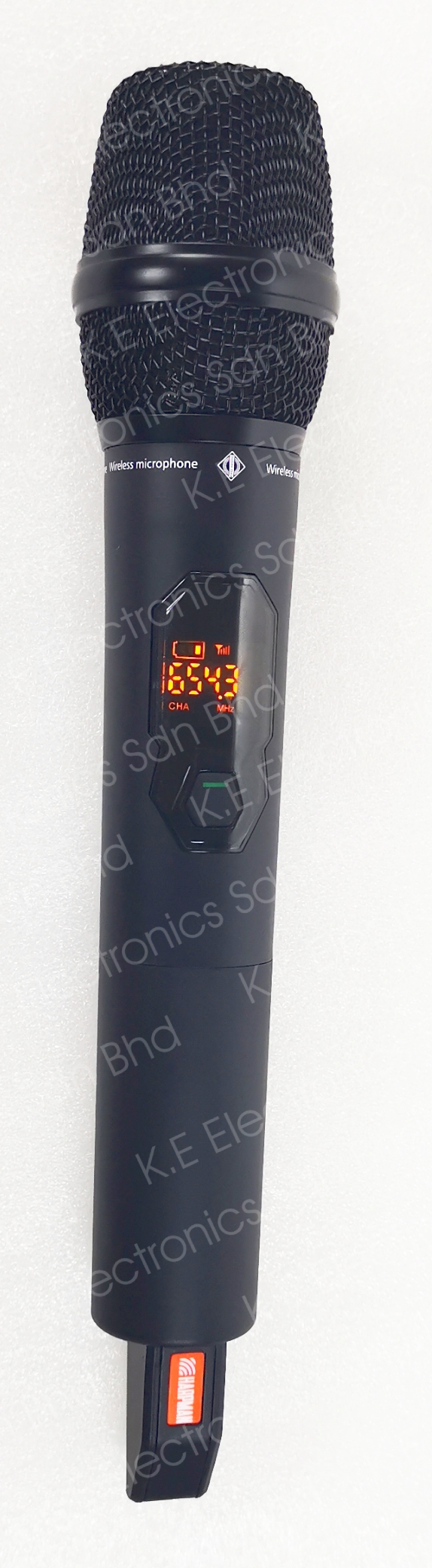

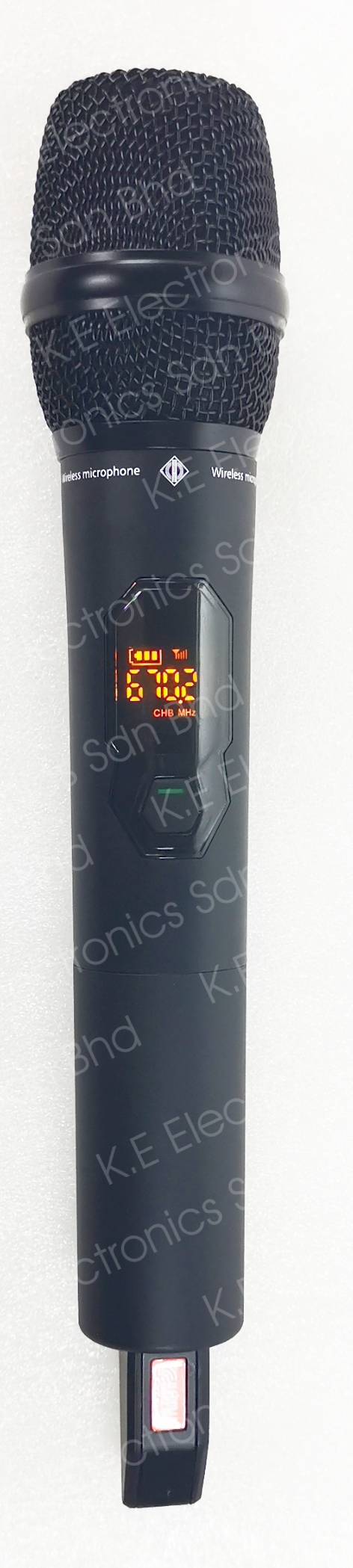

Handheld Transmitter
| RF Power Output: | 30mW max |
| Oscillation Mode: | PLL (Digital Synthesizer) |
| Transmit Frequency Stability: | <30ppm |
| Dynamic Range: | ≥50dB(A) |
| Frequency Response: | 100Hz-300Hz |
| Maximum Input Sound Pressure: | 130dB SPL |
| Radiation Pickup: | Moving Coil |
| Power Supply: | 2 AA Size Akaline Batteries |
Bodypack Transmitter
| RF Power Output: | 300mW max |
| Oscillation Mode: | PLL (Digital Synthesizer) |
| Transmit Frequency Stability: | <30ppm |
| Dynamic Range: | ≥50dB(A) |
| Frequency Response: | 100Hz-300Hz |
| Maximum Input Sound Pressure: | 130dB SPL |
| Microphone Pickup: | Condenser |
| Power Source: | 2 AA Alkaline Batteries |
