Harpman TD1300 Dual Channel 1300 Watts Power Amplifier with TFT Display

HP-TD1300

harpman

Whatsapp for enquiry Email for enquiry

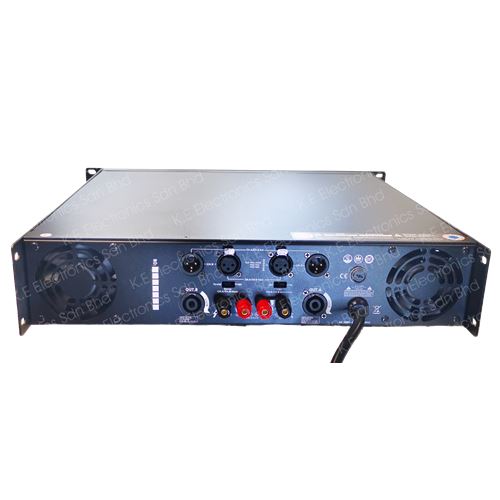

The Harpman TD1300 is a dual channel 1300 watts power amplifier that's suitable for pretty much any type of events. It has TFT Display that's able to monitor individual channel's temperature as well as fan condition and what mode it's running currently. It also has 2 channel XLR inputs, 2 channel XLR outputs, 2 channel speakON outputs and 2 channel terminals output, making it has a very versatile connection due to its variety inputs/outputs.


Specifications:

8 Ohm Output Power: 1300 Watts

4 Ohm Output Power: 1800 Watts

2 Ohm Output Power: 2250 Watts

8 Ohm Bridge Power: 3500 Watts

4 Ohm Bridge Power: 4400 Watts

THD+N (20Hz - 20KHz): <0.1%

Type: Class H

Crosstalk: >70dB

Frequency Response: 10Hz - 20KHz, +0.5/-1.5dB

Input Sensitivity: 0.775V/1V/1.44V (Selectable)

Input Impedance: Balanced (20k Ohm)/Unbalanced (10k Ohm)

Damping Factor: ≥300

Gain: 44dB

S/N Rate: ≥110dB

Indicators: Protect, Clip, Signal, Active

Protect: Soft Start, DC, Over Voltage, Over Heat, Short Circuit, Overload, Peak Clipping

Dimensions: 590mm x 575mm x 15.8mm

Gross Weight: 23.7kg

Input Voltage: 230V 50-60Hz
