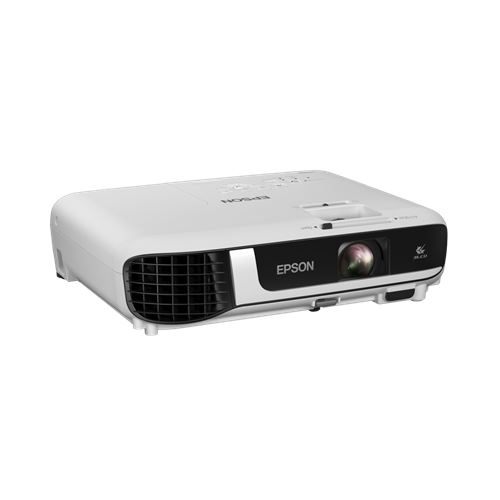

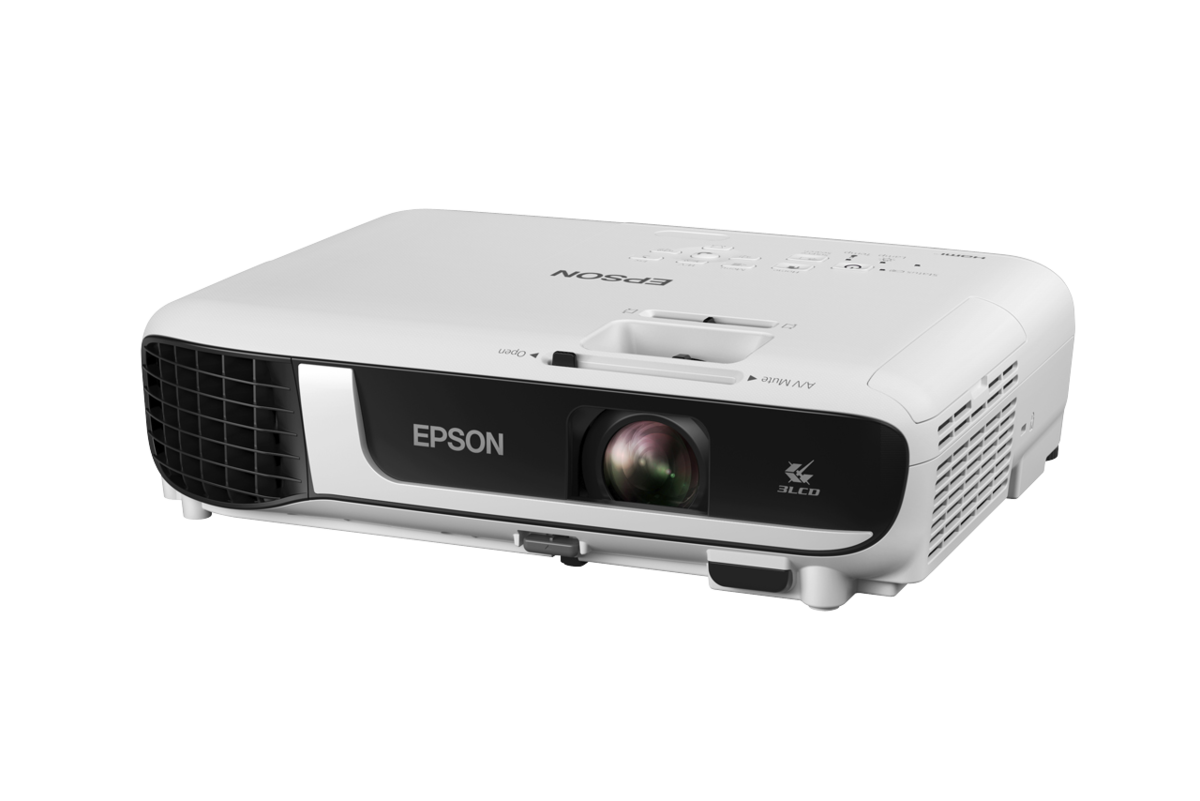

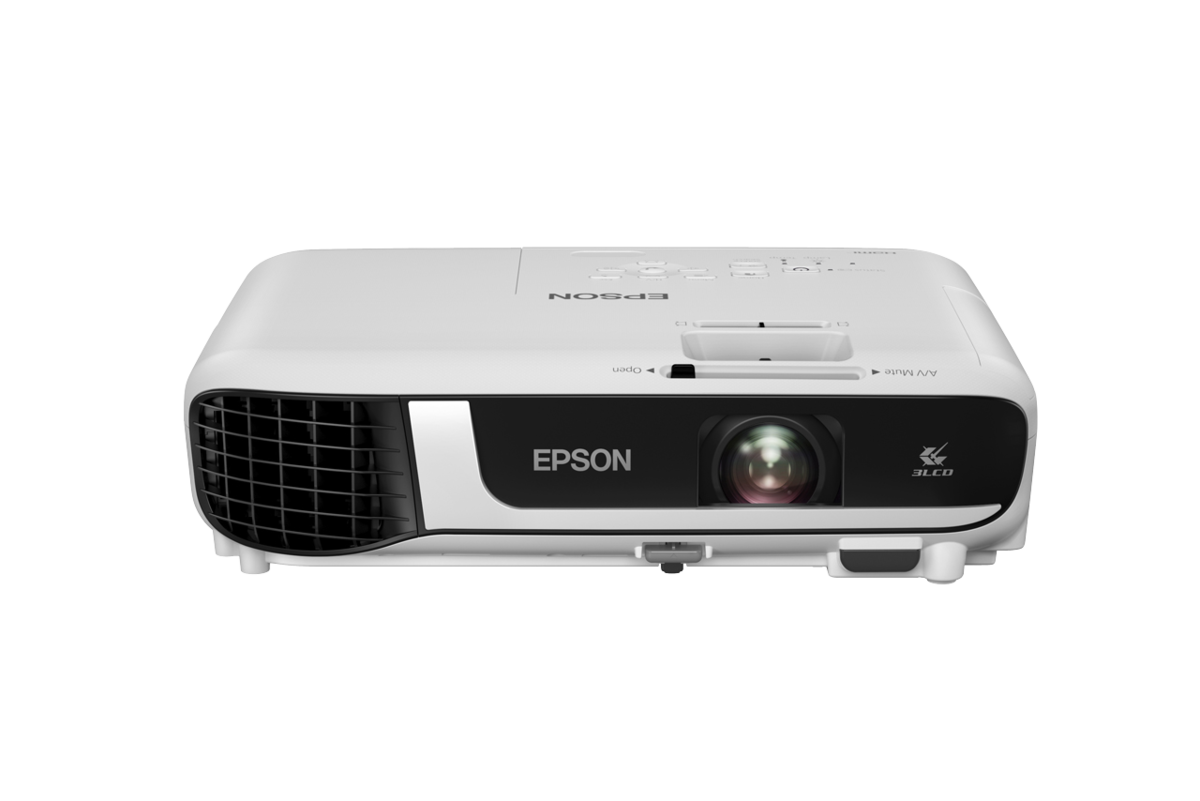

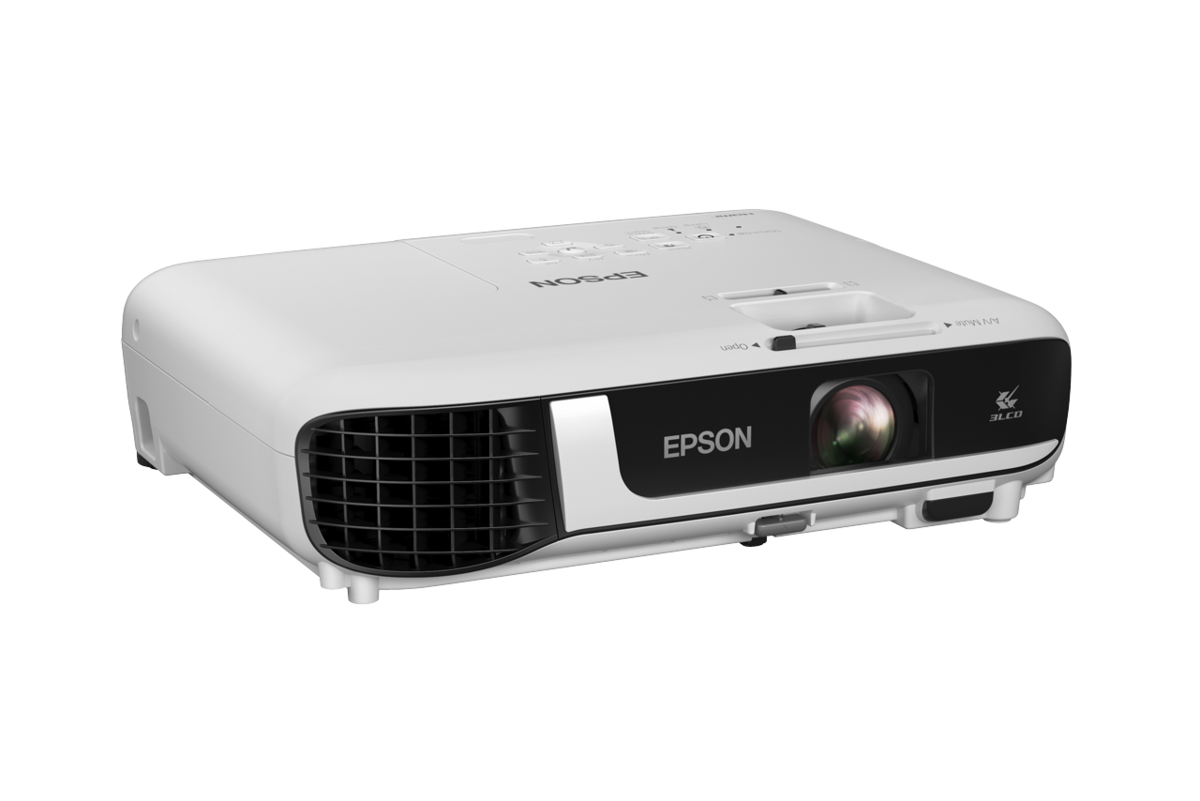

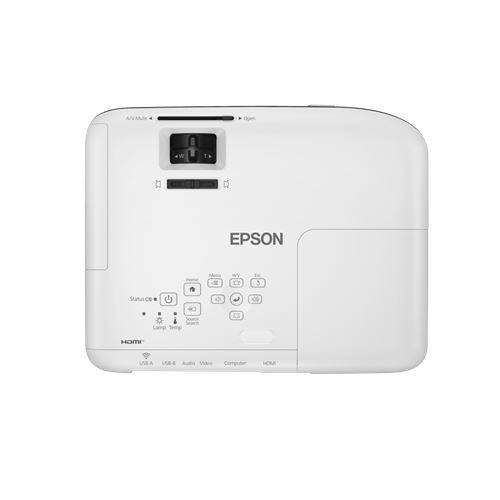

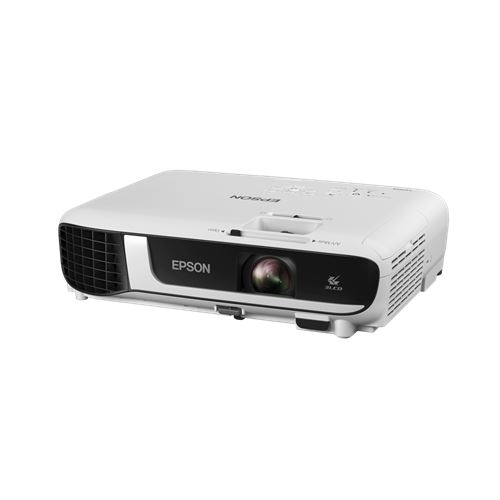

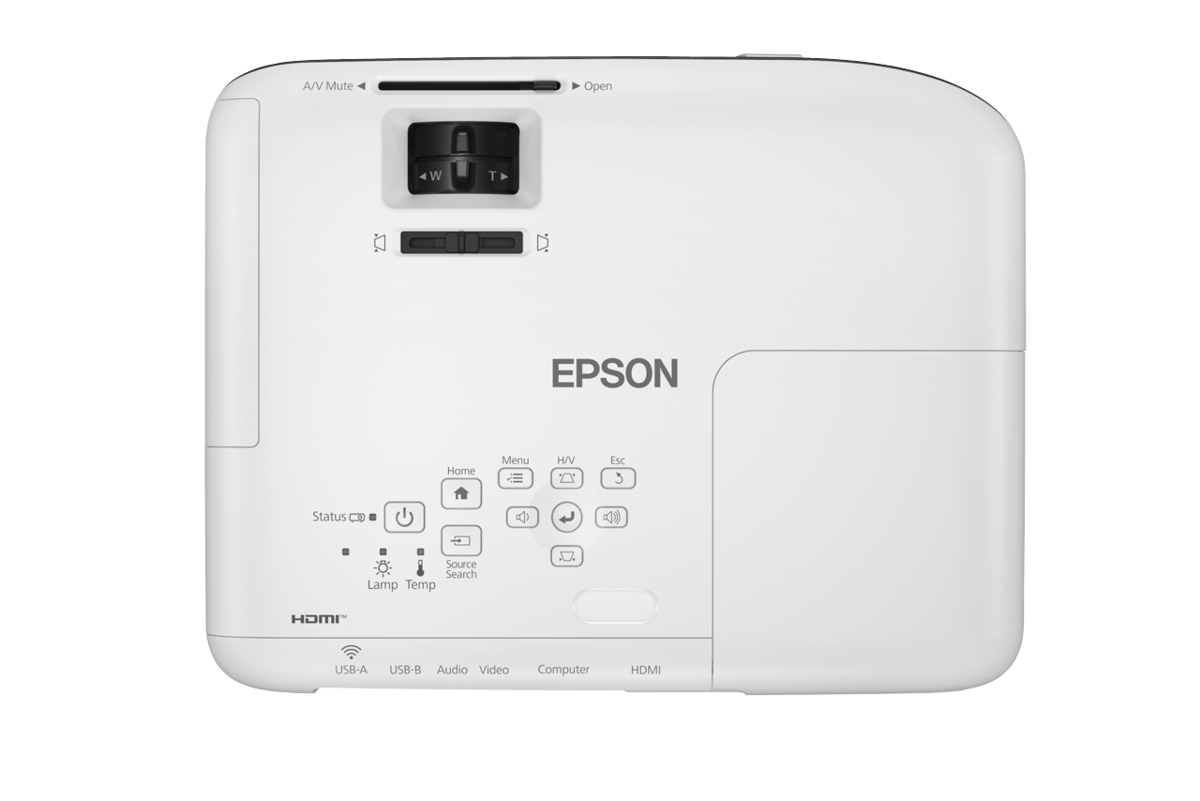

EPSON | EB-X51 | EPSON 3800 Lumens XGA 3LCD Proejector

Larger, Sharper, More Impact Viewing Experience.

Create engaging classroom displays with the dynamic EB-X51 projector. Offering advanced 3LCD technology, this ultra bright projector delivers eye-catching, 3,800-lumen displays with native XGA resolution. Designed to enhance in-class collaboration, the EB-X51 projects from smart devices and laptops, and features a built-in Moderator function that allows up to 50 users to connect to the display simultaneously 3(using iprojection). Built to last, this durable projector provides a long lamp life of up to 12,000 hours in ECO Mode, plus HDMI connectivity and convenient positioning flexibility for easy projection from anywhere in the classroom.

3,800 lumens of color and white brightness1
Native XGA resolution and 4:3 performance
Long lamp life up to 12,000 hours in ECO Mode
Built-in Moderator function3 for easy sharing using iProjection
Advanced network connectivity

Projection Technology:

Projection Technology:RGB liquid crystal shutter projection system (3LCD)

Brightness2:

White Light Output (Normal/Eco):3,800 lmColour Light Output:3,800 lm

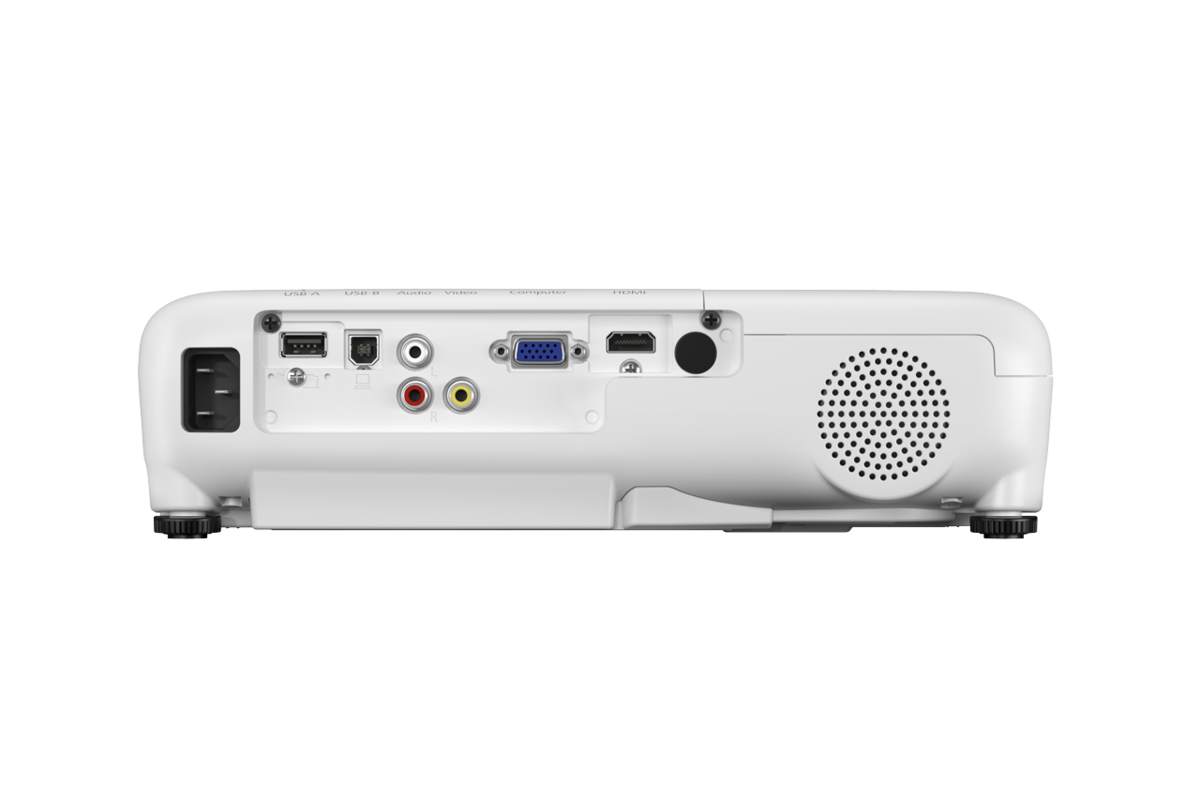

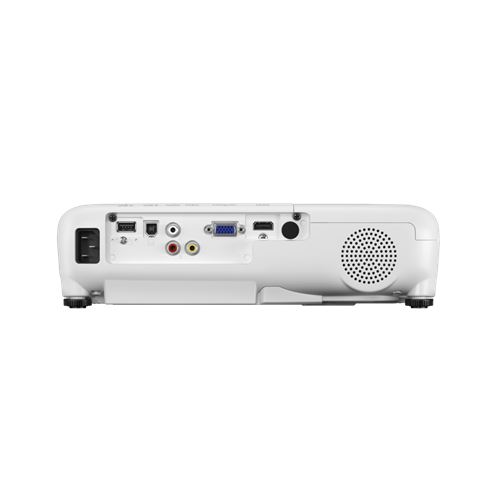

Connectivity:

USB Interface:USB Type A: 1 (For Wireless LAN, Firmware Update, Copy OSD Settings)
USB Type B: 1 (For Firmware Update, Copy OSD Settings)Network:Wireless: Optional (ELPAP11)Analog Input:Composite: 1 RCA
D-Sub 15pin: 1Digital Input:HDMI: 1 (MHL not supported)Audio Input:2 RCA: 1

Contrast Ratio:

Contrast Ratio:16,000:1

Screen Size (Projected Distance):

Standard Size:Tele: 30” to 300” [1.07 to 10.95 m]
Wide: 30” to 300” [0.89 to 9.12 m]

Geometric Correction:

Vertical/Horizontal Keystone:±30° / ±30° (Auto Vertical Keystone only)Quick Corner:Yes

Operating Temperature:

Operating Temperature:Low Altitude: 5 – 40 °C <41 – 104 °F> High Altitude: 5 – 35 °C <41 – 95 °F>
(20% – 80% Humidity, No Condensation)

Operating Altitude:

Operating Altitude:0 – 3,048 m <0 – 10,000 ft>

Start-Up Period:

Start-Up Period:Up to 6 seconds, Warm-up Period: 30 seconds

Cool Down Period:

Cool Down Period:Instant Off

Direct Power On/Off:

Direct Power On/Off:Yes

Dimension Excluding Feet (W x H x D):

Dimension Excluding Feet (W x H x D):302 x 77 x 234 mm

Weight:

Weight:Approx. 2.5 kg

Air Filter:

Type:High Efficiency FilterMaintenance Cycle:6,000 / 12,000 hours*3

Fan Noise:

Fan Noise (Normal / Eco):37dB / 28dB

Power:

Power Supply Voltage:100 - 240 V AC ±10%, 50/60 Hz

Projectors Facets:

Resolution, Projectors Facets:XGAContrast Ratio, Projectors Facets:16,000:1Brightness Range Lumens, Projectors Facets:2000Features, Projectors Facets:Wifi
Quick CornerLaser / Lamp, Projectors Facets:Lamp

Optional Wireless Specifications:

Supported Speed for Each Mode:IEEE 802.11b (2.4GHz): 11 Mbps*2
IEEE 802.11g (2.4GHz): 54 Mbps*2
IEEE 802.11n (2.4GHz): 72.2 Mbps*2
IEEE 802.11a (5GHz): 54Mbps*2
IEEE 802.11n (5GHz): 150 Mbps*2Wireless LAN Security:Infrastructure: OPEN, WPA2/WPA3-PSK
Access Point: OPEN, WPA2-PSK (AES)

Specifications of Main Parts:

LCD:Native Resolution: XGA (1024 x 768)
Size: 0.55” (C2fine)Lightsource:Type: 210W UHE
Life (Normal / Eco): 6,000 / 12,000 hoursAspect Ratio:4:3Projection Lens:Type: Optical Zoom (Manual) / Focus (Manual)
F-Number: 1.49 – 1.72
Focal Length: 16.90 – 20.28 mm
Zoom Ratio: 1 – 1.2
Throw Ratio: 1.48 – 1.77 (Wide to Tele)
