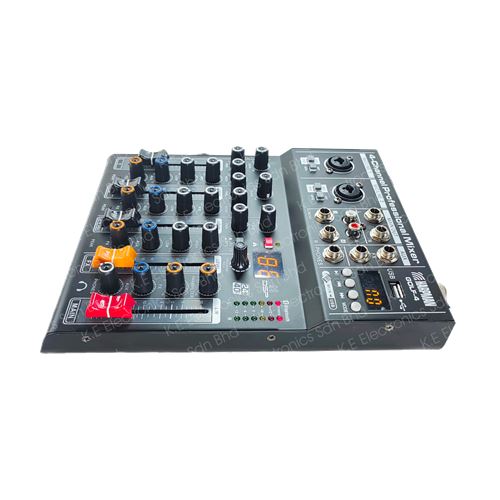

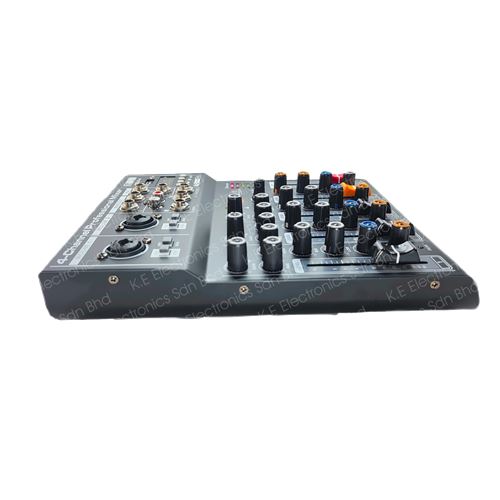

The Harpman GOLF series is a miniature mixing console that is ideal for small scale event where there's not enough space for a large mixer. It is also very portable and can be easily carried around due to its light weight. The GOLF Series also features DSP consisting the total of 99 effects that allow you to produce a more creative & professional mix for your performance. Last but not least, the GOLF Series are also comes with bluetooth & USB connection, leading to a more versatile input option.
Features:
- 4 Channels
- 2 Mic/Line Combojack Input (XLR or 1/4")
- 1 Stereo Input (1/4" or RCA)
- 1 AUX Output
- 1 FX Output
- 2 Main Output
- HPF & PAD on Input 1 & 2
- 48V Phantom Power
- Bluetooth/USB
- 99 FX Effects
Input Specifications
| Input Connectors | Gain | Input Impedance | Appropriate Impedance | Sensitivity | Nominal Level | Max. before Clipping | Connector Specifications |
| CH Input Mic | -60 dB | 3KΩ | 50-600Ω Mics | -80 dBu
(0.078 mV) |
-60 dBu
(0.775 mV) |
-40 dBu
(7.75 mV) |
XLR-3-31 Type (Balanced[1 = GND, 2 = HOT, 3 = COLD]) |
| -16 dB | -36 dBu
(12.3 mV) |
-16 dBu
(123 mV) |
+4 dBu
(1.23 V) |
||||
| CH Input Line | -34 dB | 10KΩ | 600Ω Lines | -54 dBu
(1.55 mV) |
-34 dBu
(15.5 mV) |
-14 dBu
(155 mV) |
TRS Phone Jack (Balanced[Tip = HOT, Ring = COLD, Sleeve = GND |
| +10 dB | -10 dBu
(245mV) |
+10 dBu
(2.45 V) |
+30 dBu
(24.5 V) |
Output Specifications
| Output Connectors | Output Impedance | Appropriate Impedance | Nominal Level | Max. before clipping | Connector Specifications |
| Main Out (L, R) | 75Ω | 600Ω Lines | +4 dBu
(1.23 V) |
+24 dBu
(12.3 V) |
Phone Jack (Balanced [Tip = HOT, Ring = Cold, Sleeve = GND]) |
| Tape Out (L, R) | 75Ω | 600Ω Lines | +4 dBu
(1.23 V) |
+24 dBu
(12.3 V) |
RCA Pin Jack |
| Send Out | 150Ω | 10KΩ Lines | +4 dBu
(1.23 V) |
+24 dBu
(12.3 V) |
Phone Jack (Balanced [Tip = HOT, Ring = Cold, Sleeve = GND]) |
| Aux Out (L, R) | 150Ω | 10KΩ Lines | +4 dBu
(1.23 V) |
+24 dBu
(12.3 V) |
Phone Jack (Balanced [Tip = HOT, Ring = Cold, Sleeve = GND]) |
| Phone Out | 100Ω | 40Ω Lines | 3mW | 75mW | Stereo Phone Jack |
General Specifications
| Dimensions ( W x H x D) | 243 x 38 x 194 (mm) |
| Power Supply Adaptor | AC 17VCT, 1A |
| Power Consumption | 25W |
| Net Weight | 0.75 kg |
