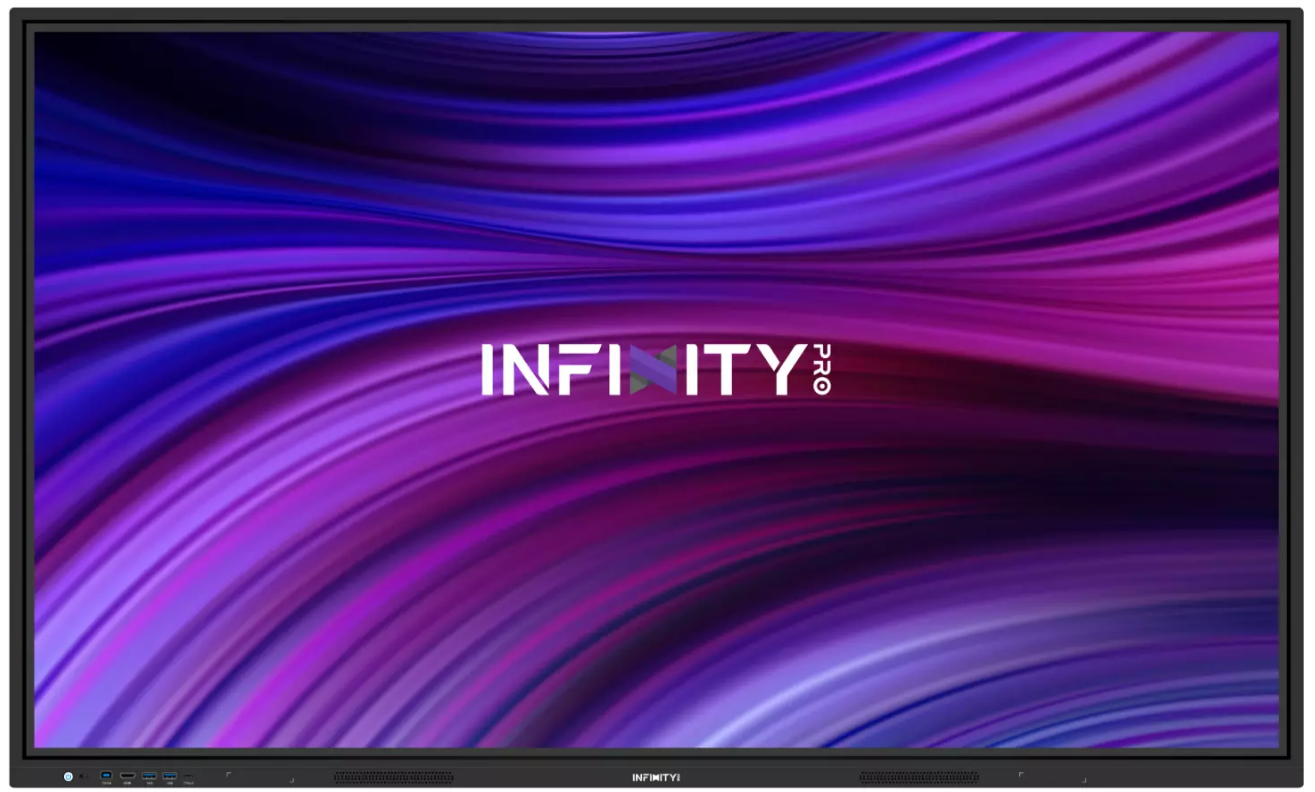

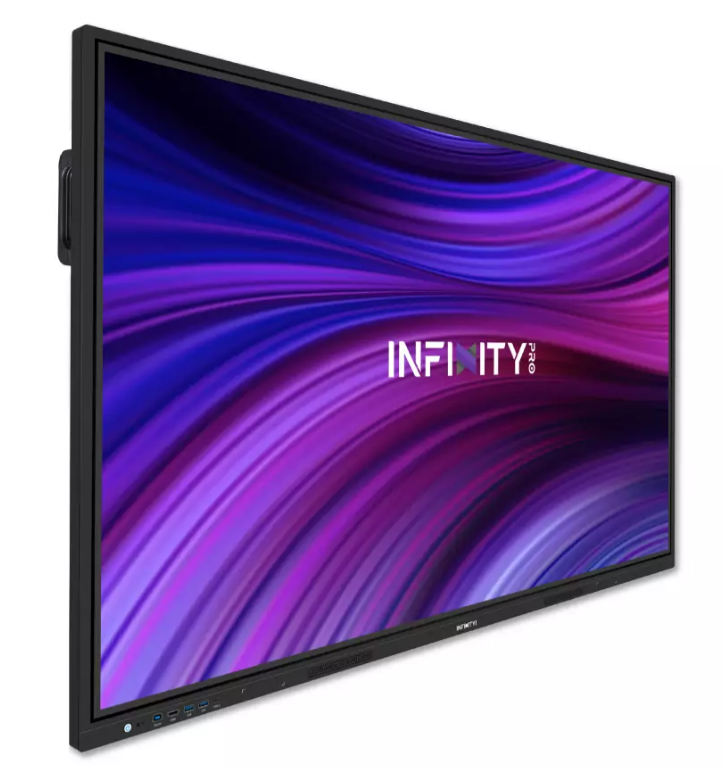

Offering an all-in-one solution for meeting rooms and classroom collaboration needs.
Save and share notes digitally across users for creative brainstorming and enjoy a smooth and seamless writing experience with the display’s integrated pen during dynamic presentations.
| InfinityPro | |
| Series | X Series |
| Panel Size | 98″ |
| Warranty | 3 Years |
| Interactive Display | |
| Resolution | 3840 x 2160 |
| Backlight Type | LED |
| Colour Depth | 10 bit (1.07B) |
| Max. Brightness | 450cd/m2 |
| Contrast Ratio | 5000:1 |
| Viewing Angle | 178° |
| Life Time | 50,000 Hours |
| Response Time | 8ms |
| Touch Panel Parameter (Optional) | |
| Sensing Type | Infrared Touch |
| Surface Protection | 4mm Anti-Glare Glass |
| Surface Hardness | >H7 |
| Touch Points | ≤ 20 Points (Android)
≤ 40 Points (Windows) |
| Interfaces | |
| Front interfaces | 1 x USB 1.0
1 x PC USB 3.0 1 x TOUCH USB 1 x HDMI IN 1 x POWER 1 x USB Type C |

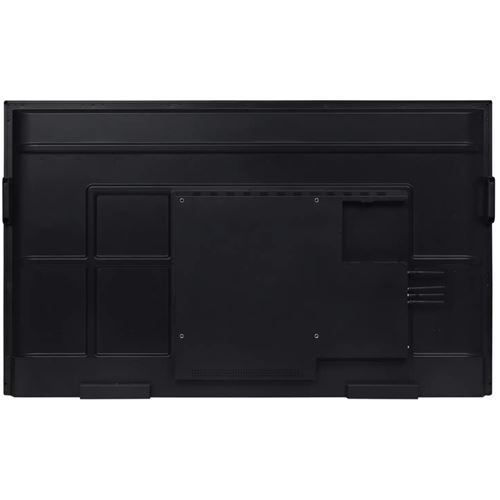

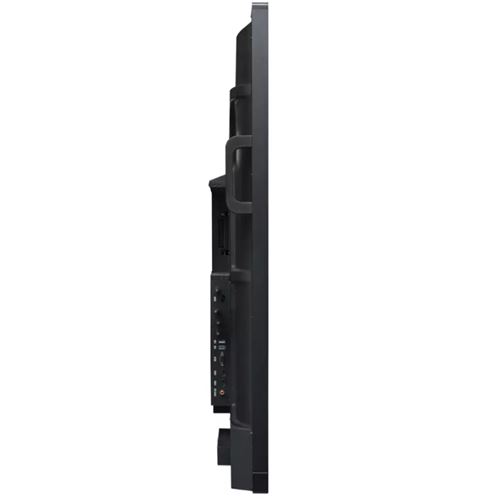

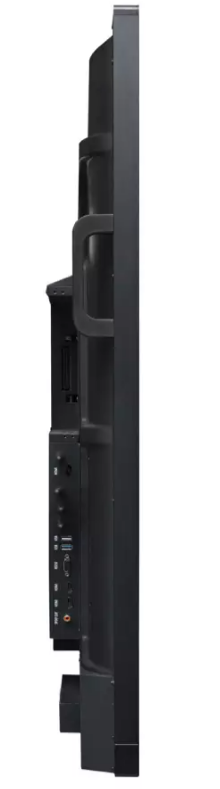

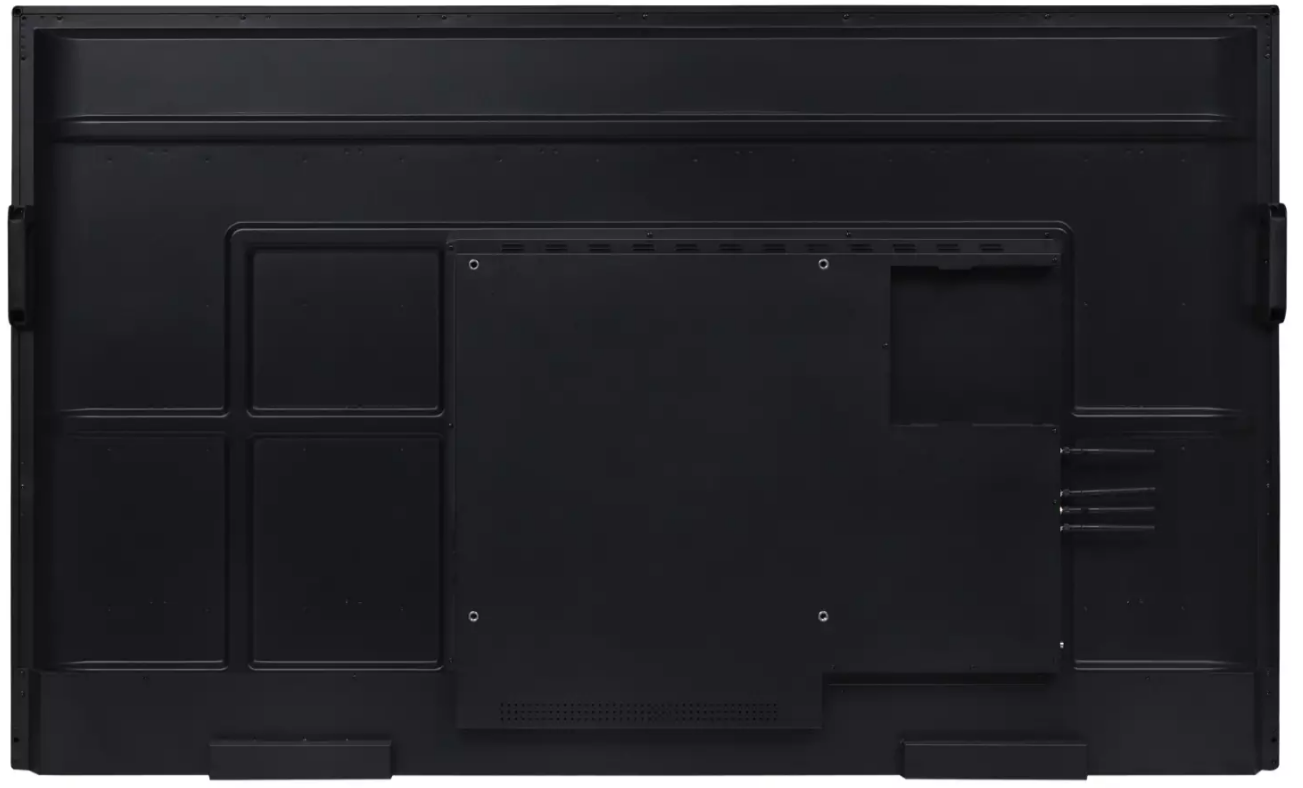

| Rear Interfaces | 2 x HDMI IN
1 x Touch USB-B 1 x RJ45 IN 1 x YPBPR IN 1 x Earphone 1 x AV IN 1 x AV OUT 1 x VGA 1 x RS232 Uart 1 x Spdif OUT 1 x USB 2.0 1 x USB 3.0 |
| Speakers | 16W x 2 |
| Dual System | |
| Android System | CPU: Quad-core ARM Cortex-A55 |
| GPU: Mali-G52 MP2(2EE) | |
| RAM: 4GB DDR4 | |
| Memory: 32G EMMC | |
| Android System: Android 11 | |
| Built-In Wi-Fi (5G) /Hotspot (5G) | |
| Bluetooth: 5.0 | |
| Updates: Over-the-air (OTA) | |
| OPS (Optional) | CPU: i3/i5/i7 |
| RAM: 4G/8G | |
| HDD: 128G SSD | |
| Graphic: Integrated | |
| WLAN: Atheros AR9285 802.11b/g/n/WIFI | |
| Power Requirements | AC 110V-240V, 50HZ/60HZ |
| Power Consumption | 400W |
| Certificate Approval | CE, RoHS, CCC, FCC, ISO9001 |
| Wireless Sharing | |
| Max. Share Screen | Up to 9 Split Sharing |
| Compatibility | Windows
Mac iOS Android Chrome Linux |
| What’s in the box | |
| Interactive Display | 1 |
| Stylus Pen | 2 |
| Remote Control | Yes |
| Power Cable | Yes |
| Wall Mount Bracket | Yes |
| Dimension | |
| Package Size | 2280 X 285 X 1555 mm
|
| Gross Weight | 135KG
|
