Features:
- Ultra-detailed 12x optical zoom
- Pan: ±170° | Tilt: -30° to +90°
- Video outputs: USB 3.0, HDMI, 1GbE with PoE, 3G-SDI
- Streaming: RTSP and RTMP

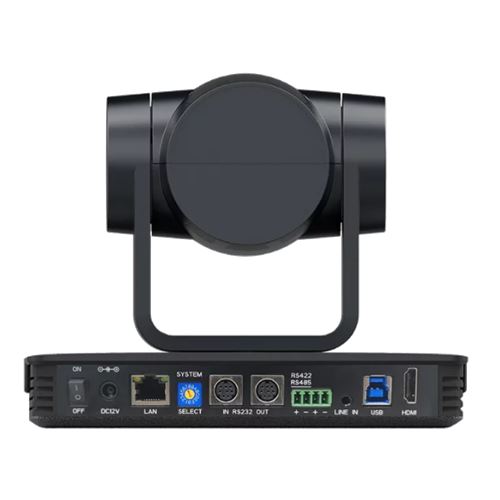

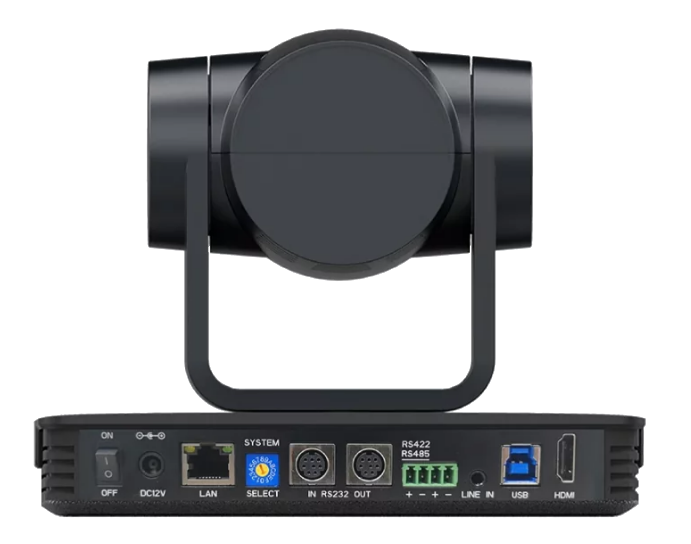

- Control ports: RS232, RS422, RS485, LAN, and remote control
Max Resolution |
4k 3840*2160P |
Max Frame Rate |
30FPS(4K/1080P) |
AI Powered Track |
auto tracking |
Focus |
Auto focus |
Optical zoom |
12x optical zoom |
FOV-H |
6.5°~70.9° |
Aperture |
F1.6 ~ F2.8 |
Video Signal |
4K@30fps, 4K@25fps 1080P@30fps,1080P@25FPS,1080P@29.97fps, 3840*2160/1920×1080/1600×896/1280×720/1024×576/960×540/800×600/800×448/ 720×576/720×480/640×360/640×480/480×270/352×288/320×240@30/25/20/15/10/5fps |
Video formats |
H.265, H.264(LAN) MJPG/H264/YUY2/NV12(USB3.0) |
Video output |
USB3.0/SDI/HD-MI/LAN(POE) |
Audio In |
3.5mm Line In |
Audio Compression |
AAC/G.711A/MP3 |
Network Protocols |
RTSP, RTMP, ONVIF, RTMPS, SRTGB/T28181, VISCA OVER I, IP VISCA protocols |
Control Interface |
RS232 in/out, RS422(compatible RS485) |
Control protocols |
VISCA/Pelco-D/Pelco-P |
Horizontal rotation |
-170°~+170° |
Tilt rotation |
-30°~+90° |
Preset bits |
User can set up to 255 preset positions (10 presets for remote control) |
Accessories |
Power adapter, RS232 control cable, USB3.0 connecting cable, remote controller, manual, warranty card&certificate |
