Features:
- Two 31-Band, 1/3-octave Constant Q frequency bands
- Switchable boost/cut ranges of ±6 or ±12dB
- 12dB per octave 50Hz low-cut filter
- Front-panel bypass switch
- ±12dB input gain range
- 4-segment LED ladders for monitoring output levels

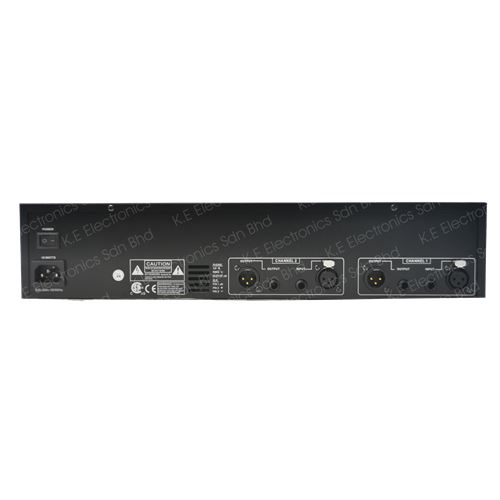

- XLR and TRS inputs and outputs
- Internal toroidal transformer
- Frequency response of <10Hz to 50kHz
- Dynamic range of greater than 108dB
|
|
|
Inputs
| Connectors: | 1/4" TRS, female XLR (pin 2 hot) |
| Type: | Electronically balanced/unbalanced, RF filtered |
| Impedance: | Balanced 40k Ohms, Unbalanced 20k Ohms |
| Max Input Level: | >+21dBu balanced or unbalanced |
| CMRR: | >40dB, typically >55dB at 1kHz |
Outputs
| Connectors: | 1/4" TRS, male XLR (pin 2 hot) |
| Type: | Impedance-balanced/unbalanced, RF filtered |
| Impedance: | Balanced 100 Ohms, Unbalanced 50 Ohms |
| Max Output Level: | >+21dBu balanced/unbalanced into 2k Ohms or greater
>+18dBm balanced/unbalanced (into 600 Ohms) |
System Performance
| Bandwidth: | 20Hz to 20kHz, +0.5/-1dB |
| Frequency Response: | <10Hz to >50kHz, 0.5/-3dB |
| Dynamic Range: | 108dB |
| Signal-to-Noise: | 90dB |
| THD+Noise: | <0.004% |
| Interchannel Crosstalk: | <-80dB, 20Hz to 20kHz |
Function Switches
| EQ Bypass: | Bypasses the graphic equalizer section in the signal path |
| Low Cut: | Activates the 50Hz 12dB/octave high-pass filter |
| Range: | Selects either +/- 6dB or +/- 12dB slider boost/cut range |
Power Supply
| Operating Voltage: | 100VAC 50/60Hz, 120VAC 60Hz, 230VAC 50/60Hz |
| Power Consumption: | 15W |
| Mains Connection: | IEC receptacle |
Physical Dimensions
| Size: | 3.5"H x 19"W x 6"D |
| Weight: | 6lbs |
