FBT XPRO Series 1200 Watts 10" 2-Way Bi-Amplified Active Loudspeaker

XPRO-110A

FBT

Whatsapp for enquiry Email for enquiry

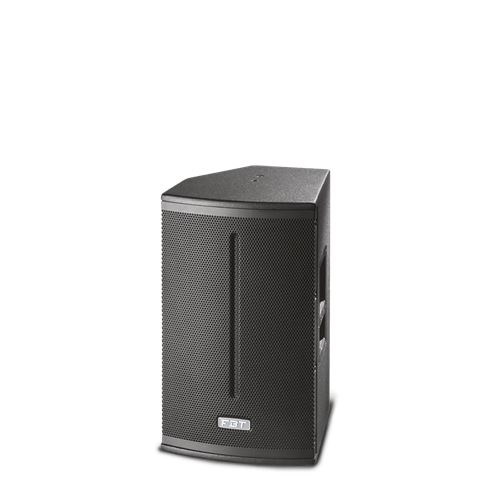

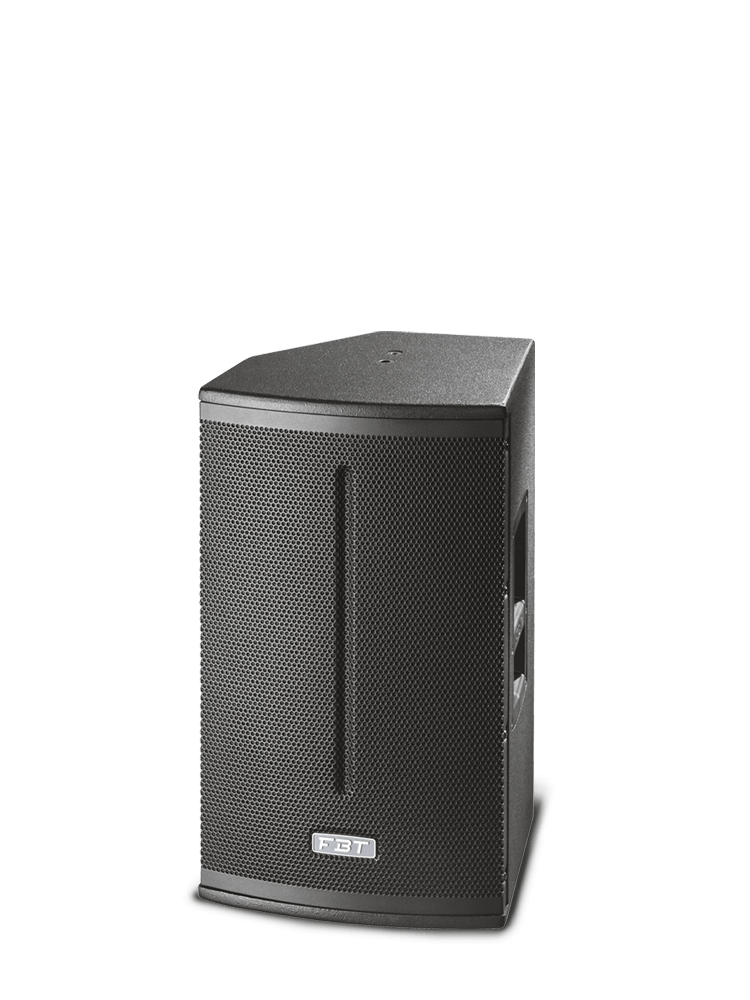

The FBT XPRO 110A series speakers with integrated 3-channels mixer feature lightweight, yet rugged gas injected molded Plywood cabinet construction. Available in black finish, the FBT XPRO 110A series speakers provide fixed installations with an elegant design that blends into any decor. The asymmetrical shape of the FBT XPRO 110A cabinet also allows use as a powered floor stage monitor.

The FBT XPRO 110A is two way design incorporating a 10” low frequency woofer and 1” HF compression driver coupled to a 80°H x 50°V rotatable constant directivity horn. With a frequency range of 58Hz - 20kHz the FBT XPRO 110A speaker provide high fidelity sound for both speech and music applications with a maximum SPL of 127dB.
The bi-amplified FBT XPRO 110A active speaker feature a 1200W low frequency amp and a 300W high frequency amp.

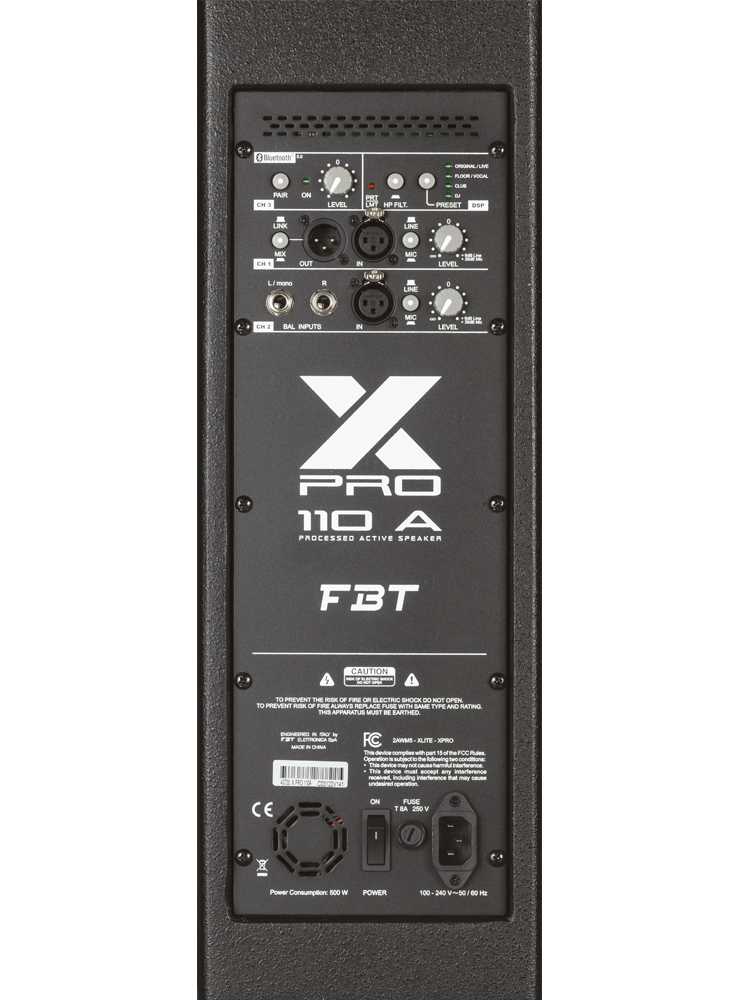

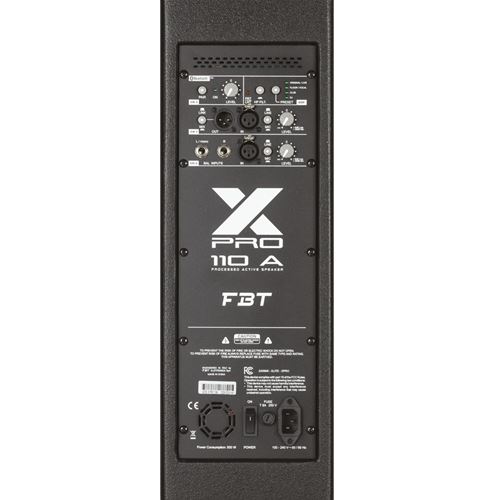

The control panel features a three-channel mixer with two micro-line inputs, a stereo input and a dedicated channel for bluetooth 5.0; two xlr inputs, stereo input, xlr output with ch1 or mix link selector, hp filter, two mic-line selectors, dsp preset selector, bluetooth 5.0 with pairing led. 4 x M10 rigging points built-in into the cabinet along with the optional mounting brackets allow the FBT XPRO 110A speaker to be surface mounted on walls or ceilings. A standard 1.38” speaker stand socket allows the FBT XPRO 110A to be mounted on speaker stand.


Features:

  • 2-way bi-amplified system
  • Plywood cabinet
  • Woofer custom 10”LF / 2.5’’ voice coil
  • 1” throat / 1.4” voice coil HF compression driver
  • 1200/300W built-in amplifier max (LF/HF)
  • Bluetooth 5.0
  • 3 channels mixer
  • 35° monitor taper
  • 4 DSP presets
  • 80° H x 50° V rotatable constant directivity horn
  • Universal switching mode power supply 100-240 VAC
  • M10 rigging points APPLICATIONS


Configuration:  2-Way
Built-In Amplifier LF/HF:  1200W/300W
Frequency Response: 58Hz - 20kHz
Low Frequency Woofer: 10 - 2.5 Coil
High Frequency Woofer:  1 - 1.4 Coil
Maximum SPL Cont/Peak:  123/127 dB
Dispersion: 80x50 Rotatable
Input Impedance: 22kOhm
Input Connector: XLR In/Out Jack Stereo
Power Cord: 3 Meters
Net Dimensions (W x D x H):  314 x 550 x 315 (mm)
Net Weight: 15.5kg
