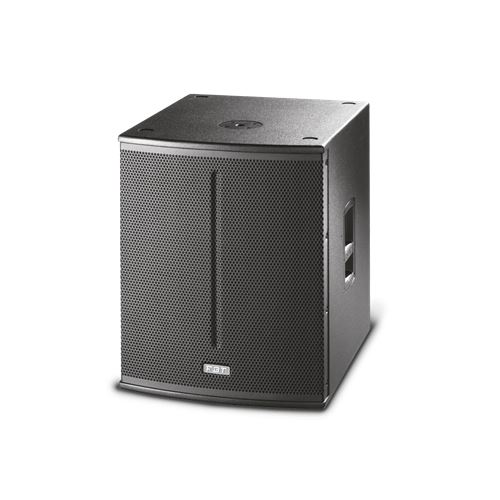

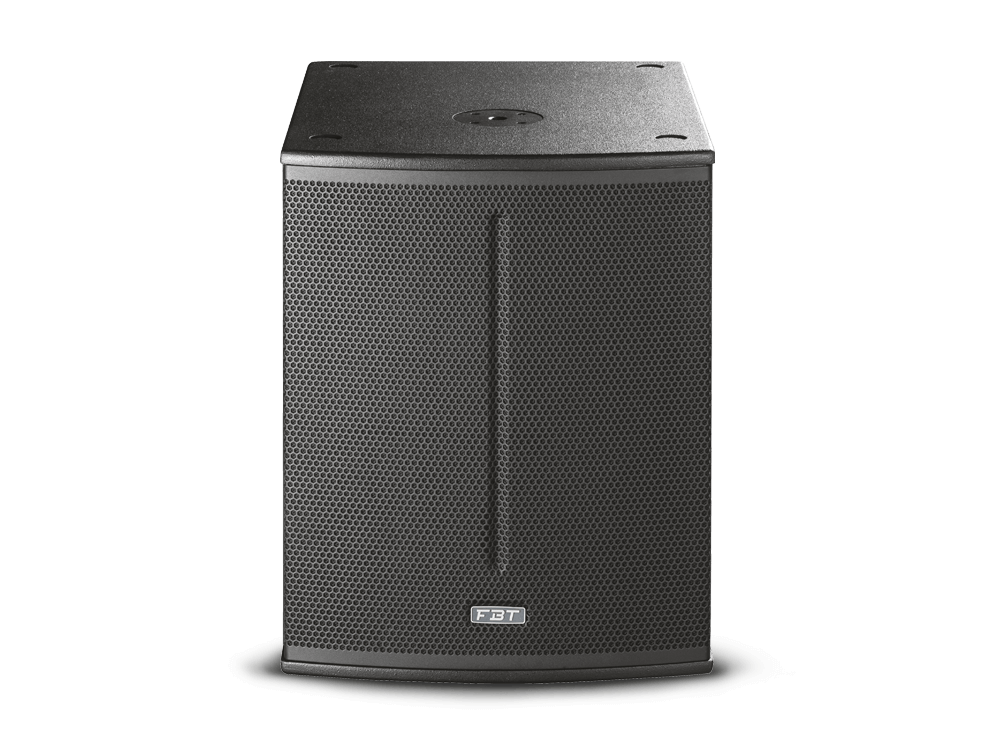

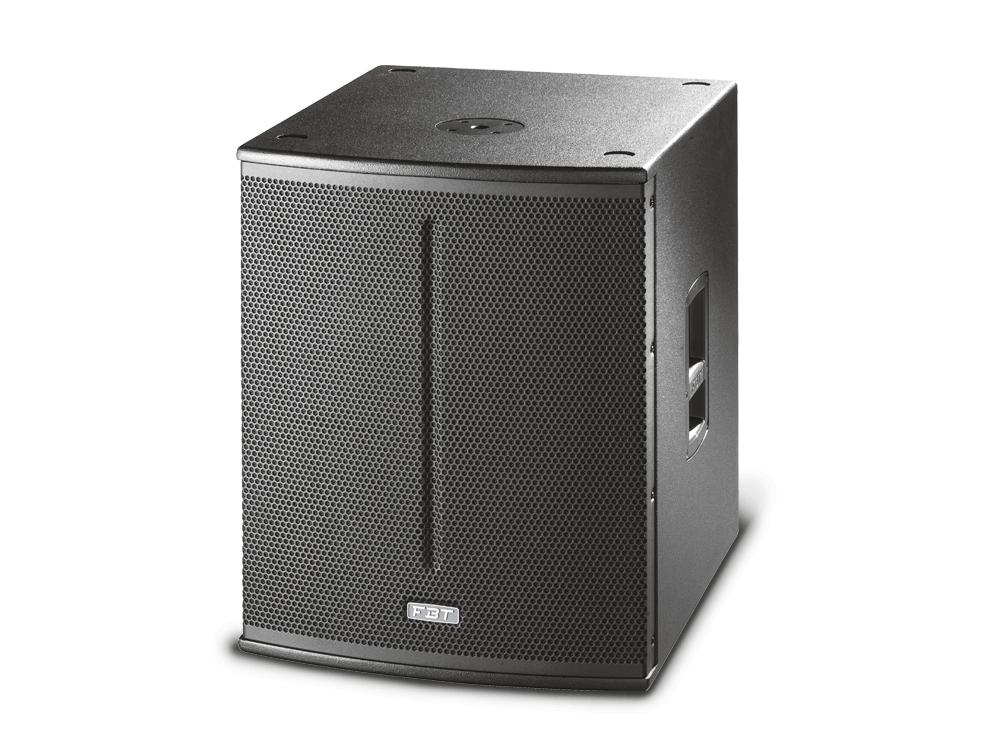

FBT XSUB Series 1200 Watts 18" Bass Reflex Active Subwoofer

XSUB-118SA

FBT

Whatsapp for enquiry Email for enquiry

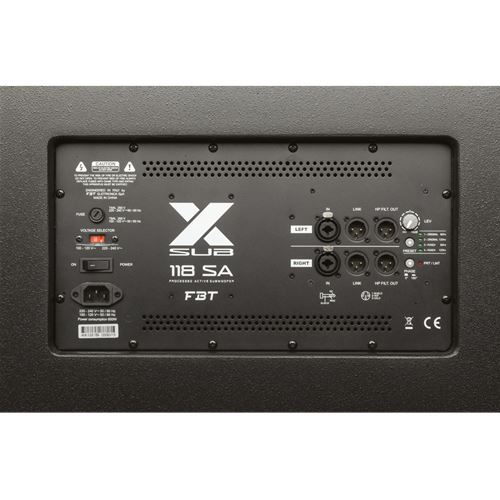

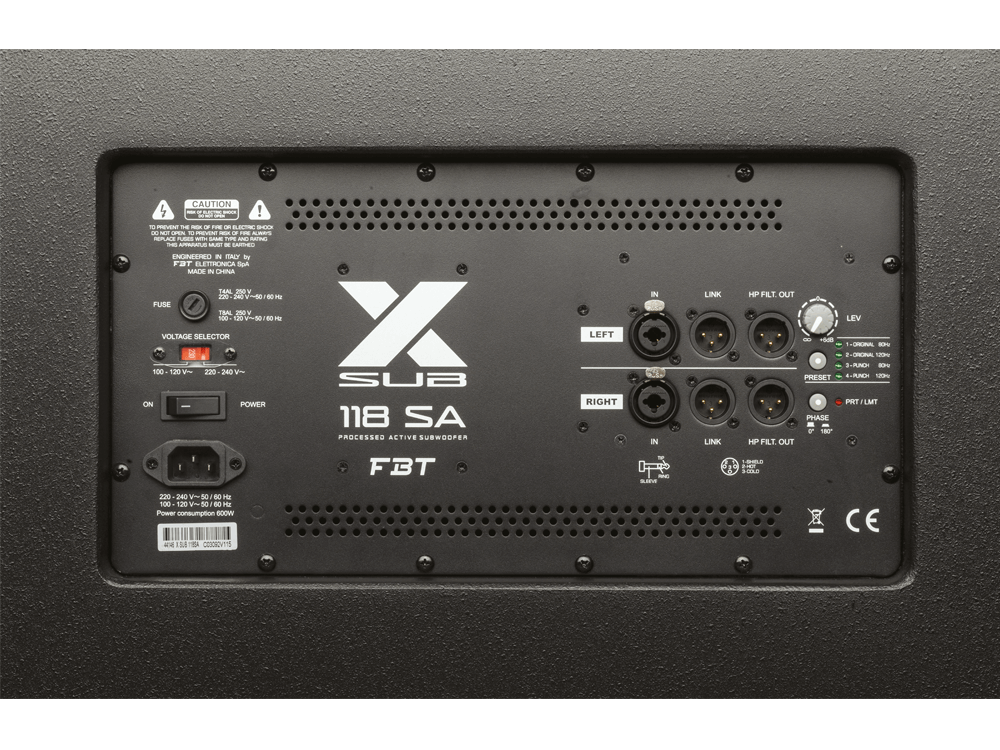

The FBTX-SUB 118SA, 1 x 18" bass-reflex design subwoofer, is the perfect low frequency extension and the ideal companion for the FBT X-LITE and FBT X-PRO series. The FBT X-SUB 118SA provides the following performance criteria: frequency response of 38Hz to 120Hz @ -6dB, maximum SPL of 136 dB peak, 1200W Class D amplifier. The FBT X-SUB 118SAprovides a DSP processor with 4 presets (2 responses with 2 different cut-off frequencies). The FBTX-SUB 118SAfeature 0,70" birch plywood construction with scratch resistant black paint finish with M20 top mounted stand adapter, two FBT design aluminium handles and four optional 100mm/3,93" transport wheels. The control panel provides two channels with stereo combo XLR/jack in-outs, stereo XLR HP filter outs, level control, preset switch, 0°/180° phase reversal switch, prt-lmt led indicators.


Features:

  • Active Subwoofer
  • 18mm/0.7" Birch Plywood Cabinet
  • 18" Woofer/3" Voice Coil
  • 1200W Class D Power Amplifier
  • 4 DSP Presets
  • Frequency Response of 38Hz - 120Hz
  • M20 Top Mount Speaker Stand Socket
  • Optional 100mm/3.93" Transport Wheels


Configuration:  Bass-reflex
Built-In Amplifier LF/HF:  1200W
Frequency Response: 38Hz - 120Hz (@-6dB)
Low Frequency Woofer:  18"/3" Coil
Maximum SPL Count/Peak:  136dB half space
Dispersion: Omnidirectional
Input Impedance: 22kOhm
Input Connector: XLR with Loop
Power Cord: 3 Meters
Net Dimensions (W x D x H):  510 x 655 x 630
Net Weight: 34kg
