Features:

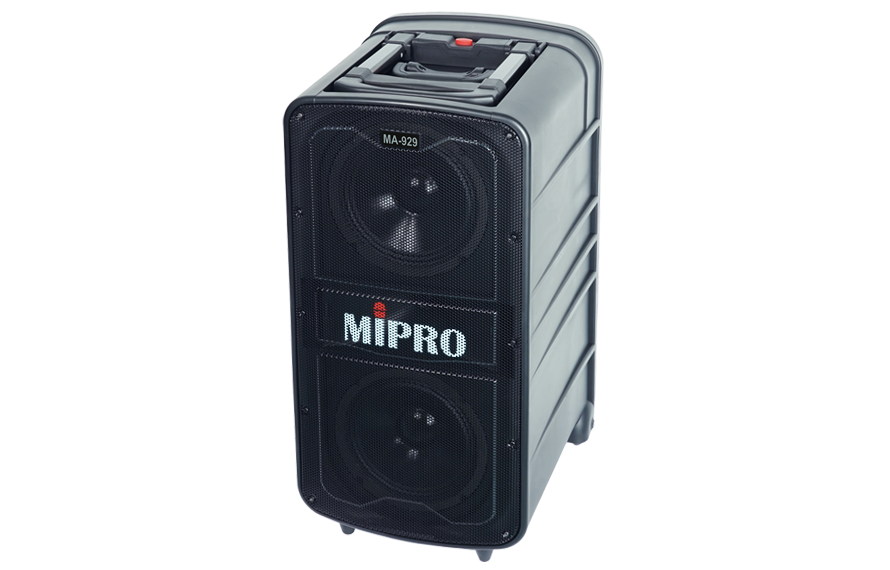

- The portable wireless PA systems apply MTM two-way loudspeaker systems to greatly expand the sound field, enhance sound pressure level, and present a clear and loud sound quality.
- The front of the cabinet is fully covered by a speaker grille, the dimensions are close to the aesthetic golden-section ratio for better viewing pleasure.
- Three different-sized speaker cabinets with built-in high-efficient power amplifiers to meet the different requirements of various occasions.
- Exclusive DSP function replaces traditional complex sound effect controls and allows quick selection of preset sound effect modes for best sound performance.
- Optional UHF or ISM 2.4 / 5.8 GHz receiver modules for selection upon request.

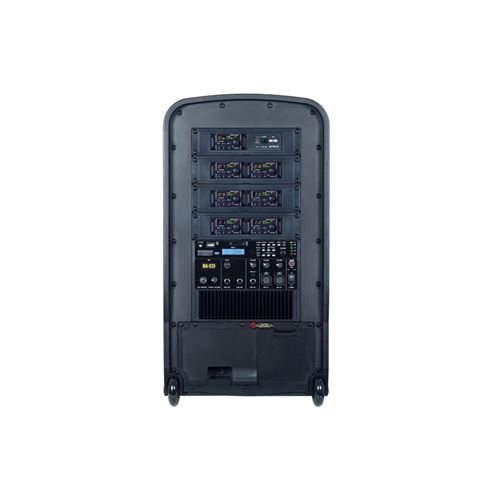

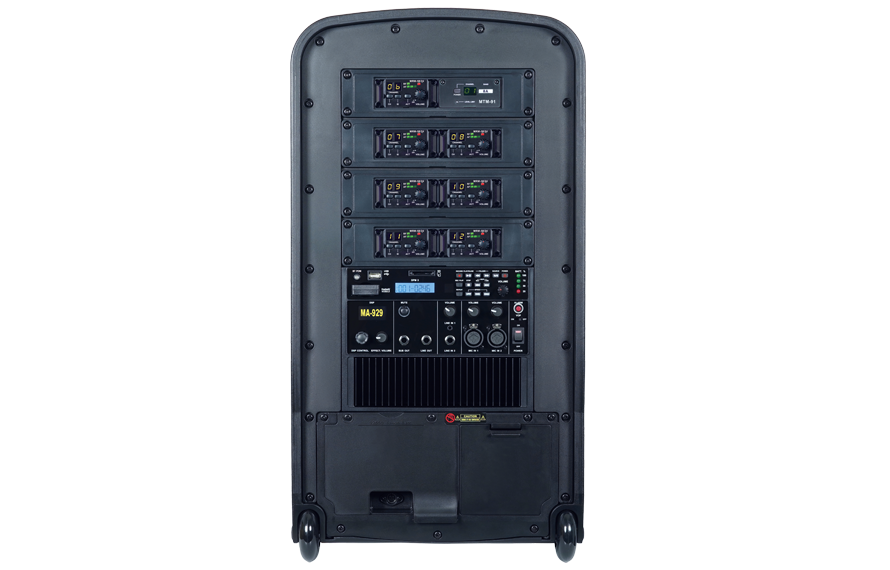

- Configurable wireless receiver modules, MP3 recorder/player, USB port, SD card slot, line input jack (LINE IN), and microphone input jack (MIC IN). All audio sources can be adjusted individually. MA-828 and MA-929 allow one optional CD player module but must be pre-fitted in the factory.
- An additional interlinking transmitter module allows more active speakers to be connected in operation by wireless linking.
- The plug-in Bluetooth receiver module performs a reliable connection with smartphones or tablets to play music.
- The patented retractable pulling handle combines with the bottom wheels for effortless transport.
- A stand adaptor at the bottom of the cabinet allows the cabinet to be installed on a tripod stand or a subwoofer cabinet.
- Built-in exclusive rechargeable battery holder allows the fast insertion of Li-ion batteries. An external AC power source can provide complete operation of the system and battery charging. A storage compartment is provided for storing accessories.
- Built-in alarm siren with fade-in function and VOP (Voice Priority) function, and SUB OUT jack for an external subwoofer.
Drivers | 1" Treble
2 × 8" Woofer |
---|---|
Output Power | 290 W RMS, 505 W peak |
Audio Inputs | MIC IN: 2 × combo XLR
LINE IN: 1 × 3.5 mm TRS, 1 × 6.3 mm |
Audio Output | LINE OUT: 1 �� 6.3 mm
SUB OUT: 1 × 6.3 mm |
Amplifier | Class D & Class AB |
Frequency Range | 65 Hz – 17 kHz |
Audio Control System | DSP control panel module |
Other Functions | Echo, MUTE button, ALARM Siren button, VOP switch |
Receiver Modules | Up to 8 |
Transmitter Modules | MTM-91, MTM-24, MTM-58 (optional) |
Audio Player | Integrated recorder/player with SD / USB slots, plug-in Bluetooth module |
Power Supply | AC 100 – 240 V |
Battery | 8 × 32700 Li-ion batteries (MB-38A) |
Battery Indicator | 4-segment indicators (25/50/75/100%) |
Standby Time | Up to 9 hours |
Dimensions | 357 × 670 × 384 mm (W × H × D) |
Weight (batteries included) | Approx. 20.3 kg |
Optional Accessories | Carry bag, MS-70 tripod stand & MM-Series microphones (optional) |
Patents and Approvals | Patented. Telecom and safety regulations approved |
Note | Refer to the actual product in the event of product description discrepancy |
