Features:
- Built-in 48V phantom power supply with independant switch for each channel
- 8 channel gold-plated xlr and mono balanced line inputs
- 2 channel gold-plated mono balanced line input
- Build in bluetooth/MP3 playback/USB direct audio recording function

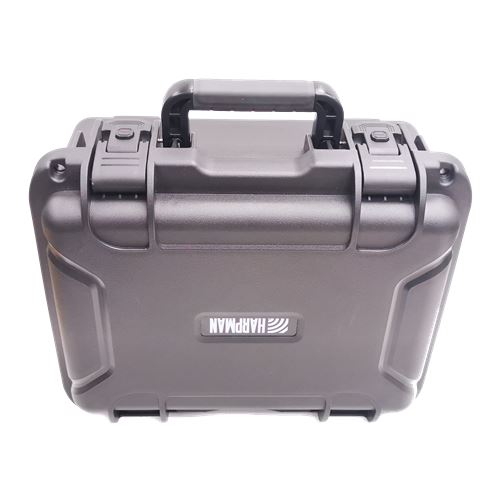

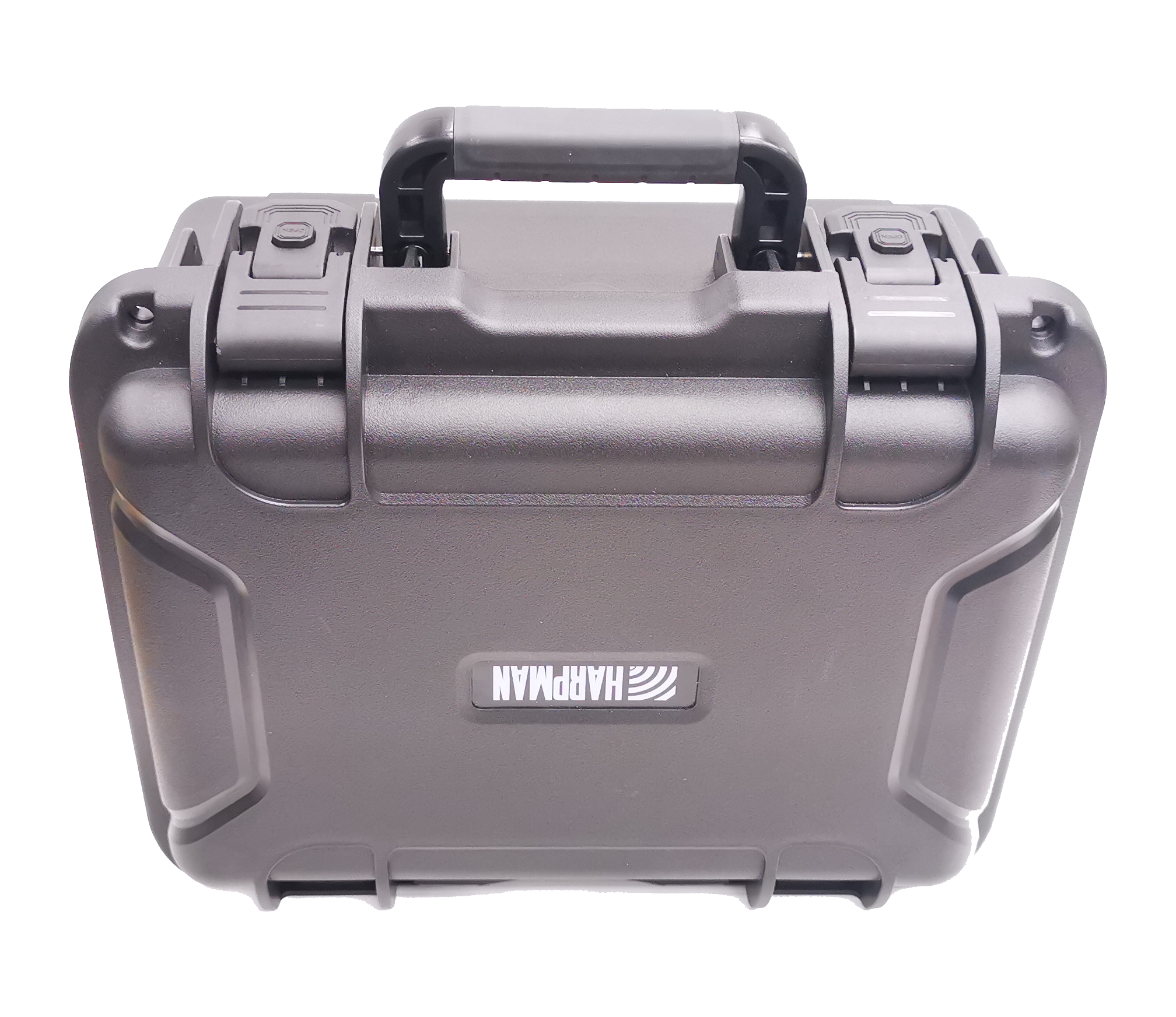

- With the ABS material case, the powered mixer is well protected and always on-the-go
- Pro human layout design, all buttons are logically located and colour coded for easy operation without guesses
- 32-bit dual engine DSP to produce a total of 99 effects
- 2 group outputs with dedicated fader
| Model | HPPM868/PRO |
| Input Power | AC 220V ~ 240V / 50Hz-60Hz |
| Output Power | 500W x 2 |
| Stereo Graphic Equalizer | 7-Band x 2 |
| Inputs | - Balanced XLR/Mono Female Chasis x 7,
- 6.35mm Mono Female Chasis x 2 |
| Outputs | - 6.35mm Mono Female Chasis (Return) x 1
- 6.35mm Mono Female Chasis (Send) x 1 - RCA Female Chasis (L/R) x 1 - 6.35mm Mono Female Chasis (Group) x 2 - (Stereo) x 1 & (Phones) x 1-XLR Male Chasis (Main L/R) x 1 -USB-B x 1 |
| Speaker Output | NL4 SpeakON Chasis (L/R) x 1
6.35mm Mono Female Chasis (L/R) x 1 |
| FX Type Selection | 16 Options |
| Distortion | ≤0.02%@0dB 1KHz |
| Digital Effect | 99 |
| Frequency Range | 2KHz,110Hz-8KHz,80Hz |
| S/N Signal-to-noise Ratio | ≥83dB |
| Product Weight | 11kg |
| Product Size | 43cm x 35cm x20cm |
