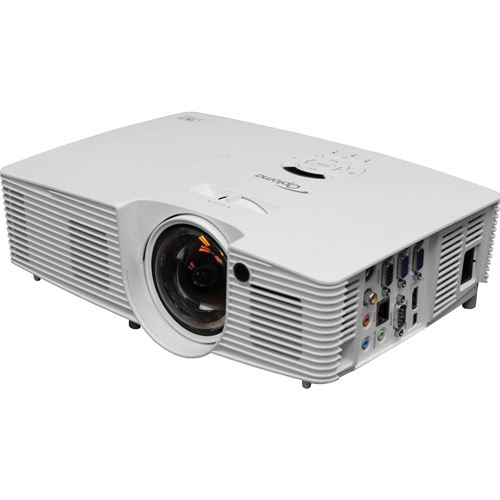

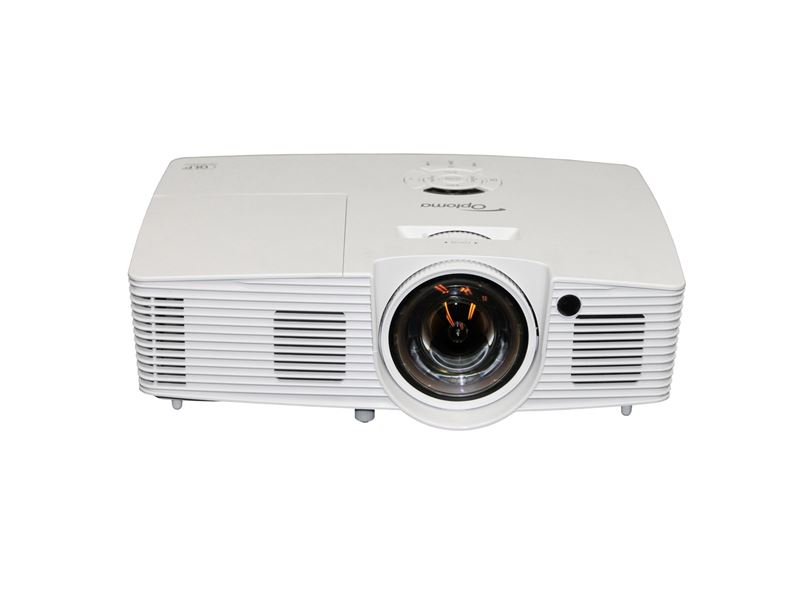

Project an impressive 100” image from just over a meter away. Designed for meeting rooms and classrooms, the X316ST boasts a long lamp life and energy-saving features which provide a low overall cost of ownership.
This projector has a built-in speaker, networking capability, Full 3D technology and and optional wireless capabilities allowing you to present wirelessly from a PC or mobile device with ease. The X316ST is the perfect projector for all your display needs.
This projector has a built-in speaker, networking capability, Full 3D technology and and optional wireless capabilities allowing you to present wirelessly from a PC or mobile device with ease. The X316ST is the perfect projector for all your display needs.
| Display Technology | Single 0.55” XGA DC3 DMD chip DLP® Technology by Texas Instruments |
| Native Resolution | XGA 1024 x 768 |
| Brightness | 3400 ANSI Lumens |
| Contrast Ratio | 20,000:1 |
| Lamp Life2 Bright | 4000 (hrs) |
| Throw Ratio 3 | 0.617:1 |
| Zoom Type | 1.1x Manual |

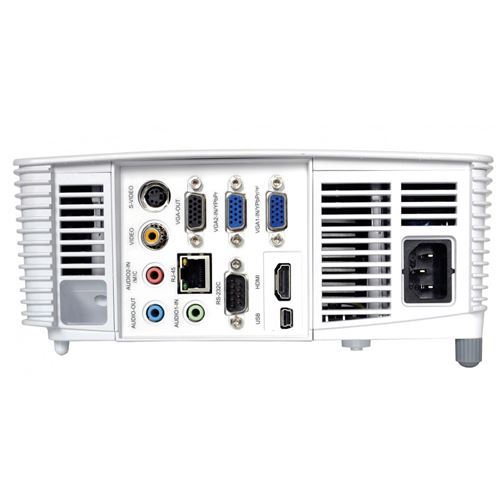

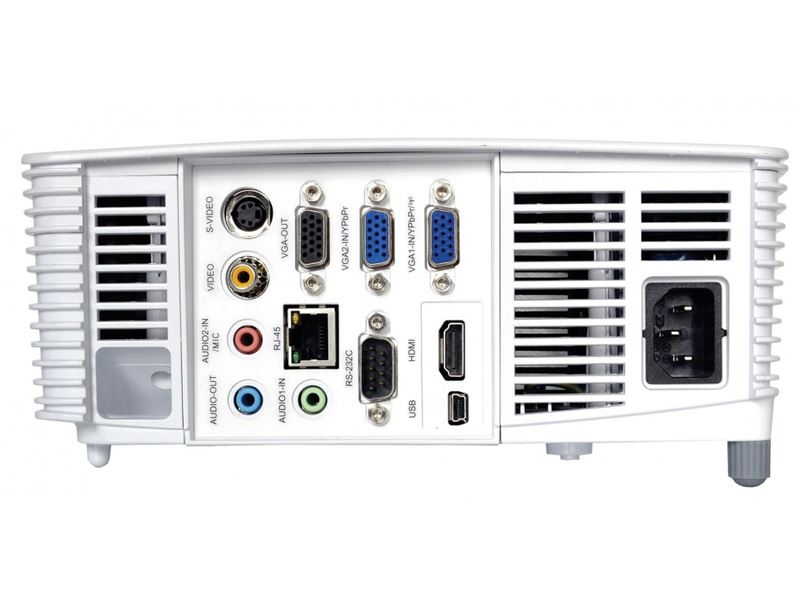

| I/O Connectors | HDMI (1.4a 3D support), 2 x VGA (YPbPr/RGB), S-Video, Composite, 2 x Audio In 3.5mm, Mic in (shared with Audio in 2), Audio Out 3.5mm, VGA Out, RS232, USB mouse/service, RJ45 |
| Speaker (Watts) | 10 |
| Keystone Correction | ± 40° Vertical |
| Weight | 6.1 lbs (2.76 kg) |
| Dimensions (W x H x D) | 314.6 x 223.6 x 101.7 |
| Aspect Ratio | 4:3 Native, 16:9 Compatible |
| Offset | 115% |
| Projection Screen Size | 1.51 – 2.69m (59.8” – 106.1”) Diagonal 4:3 |
| Projection Distance | 0.75 - 1.33m |
| Projection Lens | F/2.7; f=7.15mm, Fixed Zoom |
| Uniformity | 80% |
| Maximum Resolution | WUXGA (1920 x 1200) |
| Computer Compatibility | UXGA, SXGA, XGA, SVGA, VGA, Mac |
| Video Compatibility | PAL (B, D, G, H, I, M, N, 4.43MHz), NTSC (M, J, 3.58MHz, 4.443MHz), SECAM (B, D, G, K, K1, L, 4.25,MHz, 4.4MHz, 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz) 1080p(24/50/60Hz) |
| 3D Support | Full 3D - The 3D features of Optoma projectors can only be used with compatible 3D content. Typical applications include use with 3D educational or 3D design and modelling systems. 3D TV broadcast systems, (SKY in the UK), Blu-ray 3D™ and 3D games from the Sony® PS3 or Microsoft® Xbox 360 are now supported as part of the HDMI v1.4a specification. |
| 3D Compatibility | Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60 |
| Horizontal Scan Rate | 15.3 - 91.1kHz |
| Vertical Scan Rate | 24 - 85Hz |
| Displayable Colors | 1073.4 Million |
| Noise Level (Eco mode) | 29dB |
| Power Supply | 100-240V, 50-60Hz |
| Power Consumption | 249W Bright mode / 194W Eco mode (< 0.5W Standby) |
| Lamp Type | 210W |
| Operating Conditions | 5°C - 40°C, Max. Humidity 85%, Max. Altitude 3000m |
| Security | Security bar, Kensington lock, password protection |
| On Screen Display | 19 Languages: English, German, French, Italian, Spanish, Portuguese, Polish, Dutch, Russian, Finnish, Swedish, Greek, Norwegian/Danish, Hungarian, Czech, Turkish, Romanian, Farsi and Arabic. |
| Remote Control | IR remote mouse control with laser |
| Standard Accessories | AC power cord, VGA cable, remote control, battery, quick start card, CD user manual |
| Optional Accessories | DLP® Link™ 3D glasses, wireless, ceiling mount |
| Optional Wireless | Yes |
| RoHS | Compliant |
| Projection method | Front, rear, ceiling mount, table top |
| Warranty | 3-Year Optoma Express Service, 1-Year on Lamp |
