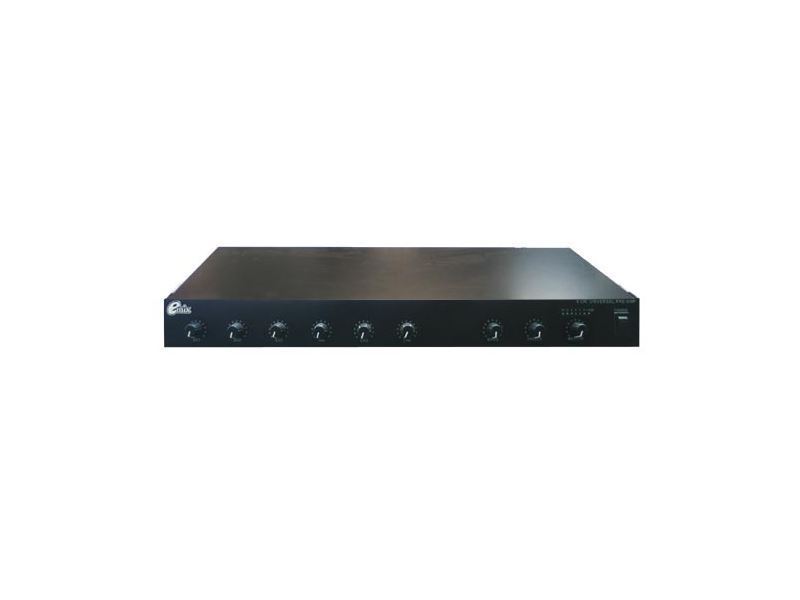

EMIX 6 Channel Universal Pre-Amplifier is a highly versatile universal pre-amplifier that is enhanced with channel selection/muting capability. It provides up to 6 balanced input channels in XLR female sockets and is designed to operate from both AC mains power and 24VDC.

Front Panel control includes individual channel volume level and a Master Volume Control. Overall Bass and Treble level control are also available. All the 6 input channels can be connected to phantom or dynamic microphone with the appropriate jumper settings. Each channel also includes dual unbalanced RCA female line input sockets. The EMPR-3306 provides a balance line output via a 3 pin XLR male socket. A mono tape output is also available through dual female RCA sockets.

Features:

• Six dual microphone / line input
• Phantom or Dynamic microphone input
• Priority muting or individual channel selection
• In-built Pre-announcement tone generator
• 240VAC and 24VDC power input (dual supply)
