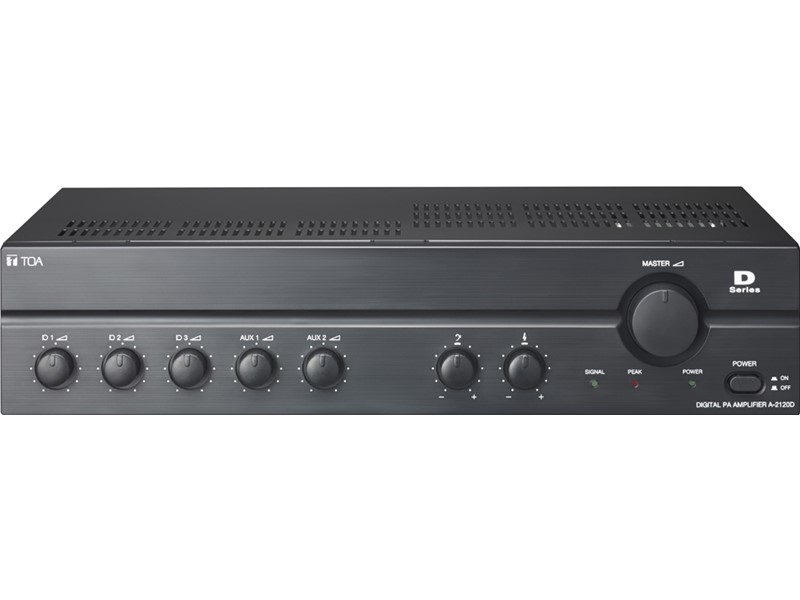

The A-2000D Series is a range of high performance mixer power amplifiers suited for broadcasting paging or background music in houses of worship, schools, offices, shops and factories. Equipped with balanced microphone inputs for better isolation from external noise, compared to unbalanced inputs, the A-2000D Series is suitable for AC operation and comes with power outputs from 30 W to 240 W. It is finished with a scratch and fingerprint-resistant surface for easy handling as well as quick volume control with master volume knob.
FEATURES
- Wide range of power outputs from 30W to 240W
- 3 microphone inputs, 2 AUX input and 1 recording output
- Speaker output of constant voltage distribution system (100 V)
- Independent tone control of boost and cut type for both high and low frequency
- MIC 1 with phantom power and mute function
- Current limiter to prevent damage due to current overload
- Excess heat limit to protect the transistor and power transformer
- Finished with a scratch and fingerprint-resistant surface for easy handling
| Power Source | 220 - 240 V, 50/60Hz |
|---|---|
| Rated Output | 120 W |
| Power Consumption | 34 W (AC operation at 1/8 maximum output without clip) |
| Frequency Response | 50 - 20,000 Hz, ±3 dB |
| Distortion | Under 1% at 1 kHz, 1/3 rated power |
| Input | MIC 1-3: -60 dB*, 600 Ω, balanced, 3P XLR
AUX 1-2: -20 dB*, 10 kΩ, unbalanced, RCA pin jack |
| Output | Speaker out: Balanced (floating)
High impedance: 83 Ω (100 V) Rec out: 0 dB*, 600 Ω, unbalanced, RCA pin jack |
| Phantom Power | DC +21 V (MIC 1) |
| S/N Ratio | Over 60 dB |
| Tone Control | Bass: ±10 dB at 100 Hz
Treble: ±10 dB at 10 kHz |
| Muting | MIC 1: Mutes other input signals by 0-30 dB attenuation |
| Indicator | Power LED, peak LED, signal LED |
| Finish | Panel: ABS resin, black
Case: Steel plate, black |
| Dimensions | 420 (W) × 100.6 (H) × 280.3 (D) mm (16.54" × 3.96" × 11.04") |
| Weight | 4.0 kg (8.88 lb) |
