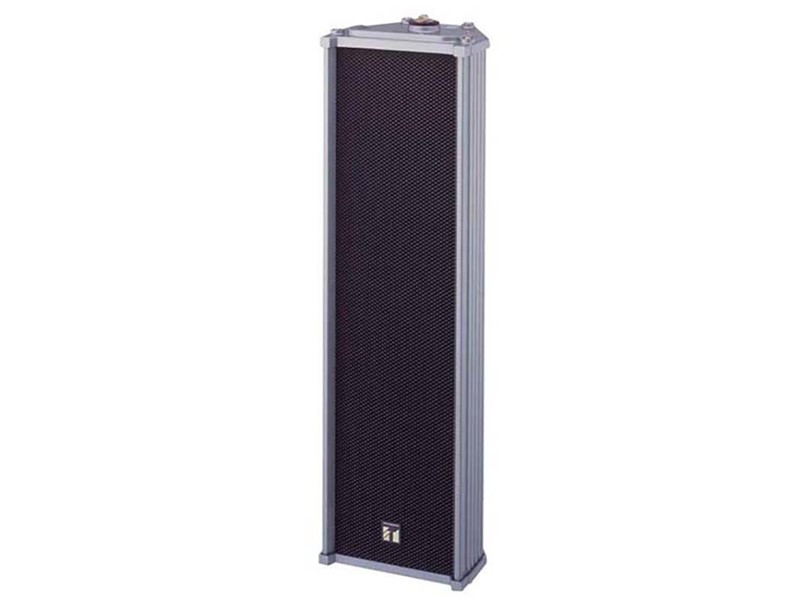

The TZ-205 Column Speaker employs multiple cone speakers arranged vertically on a single baffle board to provide wider horizontal directivity.
| Rated Input | 20 W (Max. 30 W) |
|---|---|
| Rated Impedance | 100 V line: 500 Ω (20 W), 1 kΩ (10 W) |
| Sound Pressure Level | 93 dB (1 W, 1 m) |
| Frequency Response | 150 Hz - 10 kHz |
| Speaker Component | 12 cm cone-type × 4 |
| Water Protection | IPX3 equivalent |
| Finish | Enclosure: Extruded aluminum, silver gray, fully-glazed, baked paint
Grille: Punched aluminum net, black, matte, baked paint Mounting bracket: Steel plate, silver gray, fully-glazed, baked paint |
| Dimensions | 167 (W) × 580 (H) × 141 (D) mm |
| Weight | 5.1 kg (unit only), 5.7 kg (including mounting bracket) |
| Accessory | Mounting bracket …2, Mounting bolt, washer, packing …1 set |
