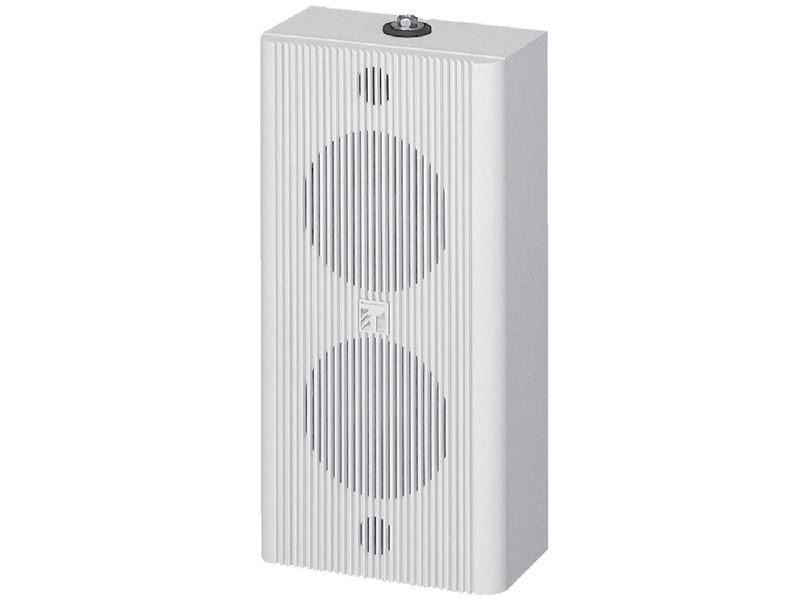

TOA 10 Watts Double Cone Wall Mount Box Speaker

BS-1110W

TOA

Whatsapp for enquiry Email for enquiry






The BS-1110W Speaker is specifically designed to reproduce clear announcements. The speaker also features a wide horizontal directivity owing to the vertical arrangement of speaker units, distributing announcements to a wider area.


Rated Input 10 W
Rated Impedance 100 V line: 1 kΩ (10 W), 2 kΩ (5 W)
70 V line: 500 Ω (10 W), 1 kΩ (5 W)
4 Ω (10 W)
Sound Pressure Level 92 dB (1 W, 1 m)
Frequency Response 150 Hz - 14 kHz
Speaker Component 12 cm cone-type × 2
Applicable Cables 600 V vinyl-insulated cable (IV wire or HIV wire)
Solid copper wire: φ0.8 - φ1.2 mm
7-core twisted copper wire: 0.75 - 1.25 m㎡
Connection Push-in connector (Bridging connections possible)
Operating Temperature -10 ℃ to +50 ℃
Finish Enclosure: Plywood vinyl coating, white (RAL9010 PURE WHITE)
Front: ABS resin, white (RAL9010 PURE WHITE), paint
Rear: Steel plate, white (RAL9010 PURE WHITE), paint
Dimensions 180 (W) × 360 (H) × 100 (D) mm
Weight 2.9 kg (unit only)
Accessory Mounting bracket…2
Option Applicable bracket: YS-301, SP-410, WCB-13W
Applicable stand: ST-16A
