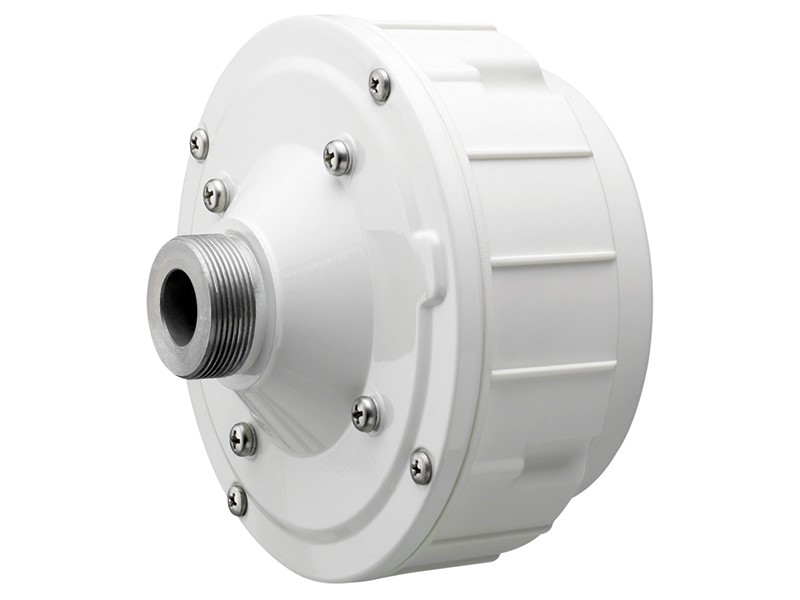

TOA 50 Watts Driver Unit (8 Ohms)

TU-652

TOA

Whatsapp for enquiry Email for enquiry






The TU-652 is a highly intelligible driver unit suited to public address announcement applications. The driver unit is used in combination with a suitable horn (optional). Powder-coated finish and stainless steel screws ensure the unit's weatherproof capability.


Applicable Horns TH-652
Rated Input 50 W
Rated Impedance 16 Ω
Output Sound Pressure Level 110 dB (1 W, 1 m) (When operated with JIS C 5504 standard horn.)
Frequency Response 150 Hz - 6,000 Hz (When operated with JIS C 5504 standard horn.)
IP Code IP65 (When a driver is operated with a horn.)
Horn Coupling 1 - 3/8 18 threads (inch screw)
Polarity Hot: Black, Com: White
Operating Temperature -20°C to +55°C (-4°F to +131°F) (must be free from dew condensation)
Finish Upper Cover: Aluminum, White, powder coating
Unit Case: HIPS. White
Screws: Stainless steel
Speaker cable: Polyvinyl chloride insulated cabtyre cable
(6 mm (0.24") in diameter, 450 mm (17.72") in length), White
Dimensions Φ139 × 106 (D) mm (Φ5.47" × 4.17")
Weight 2 kg (4.41 lb)
