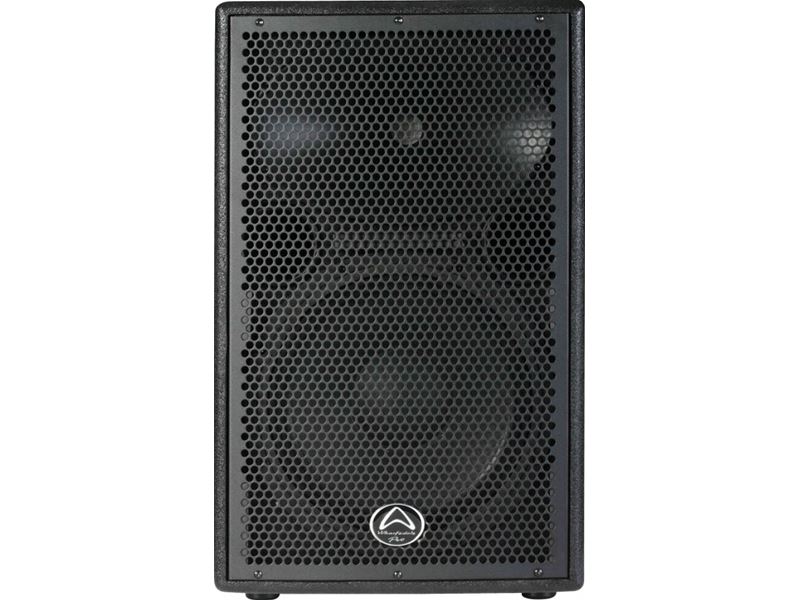

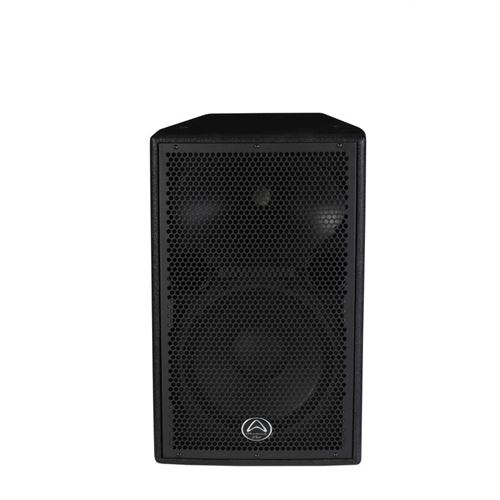

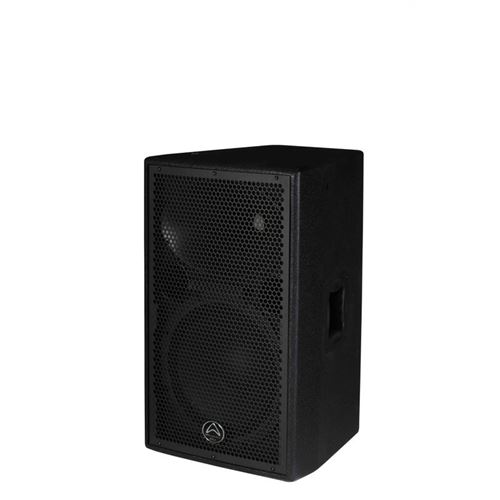

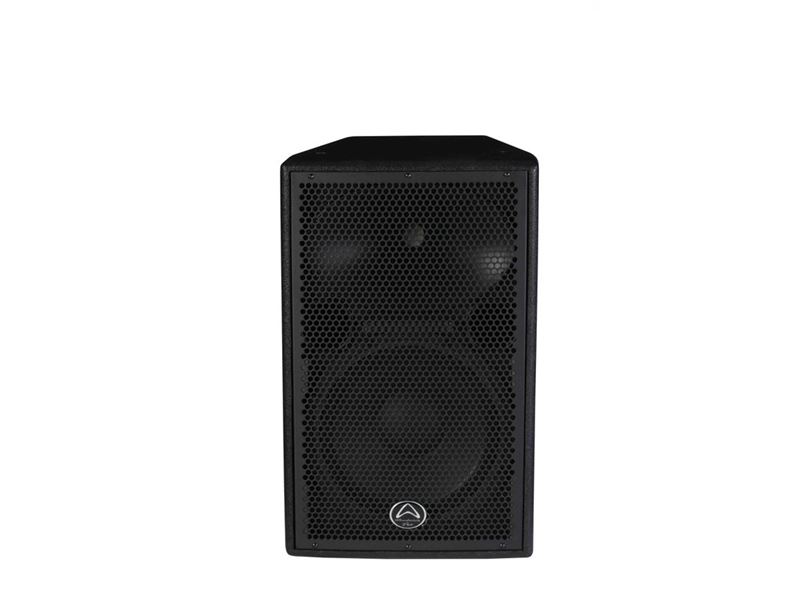

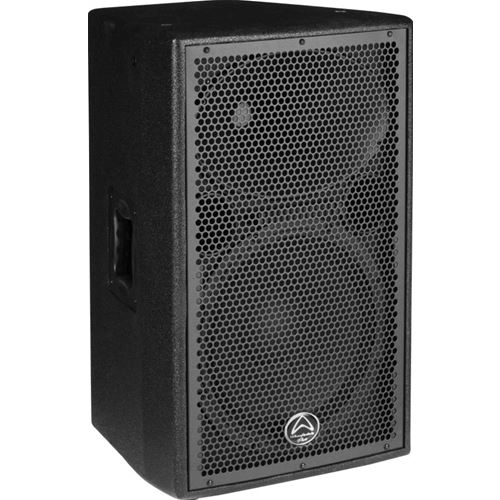

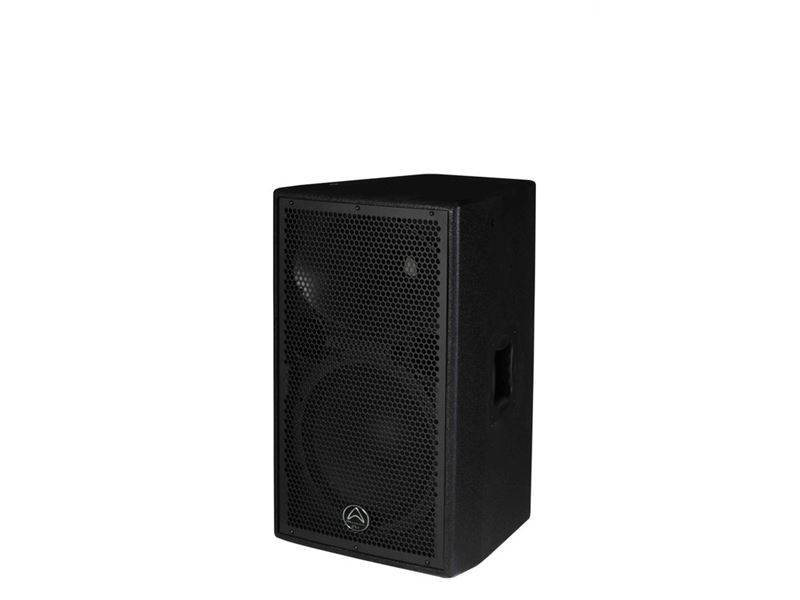

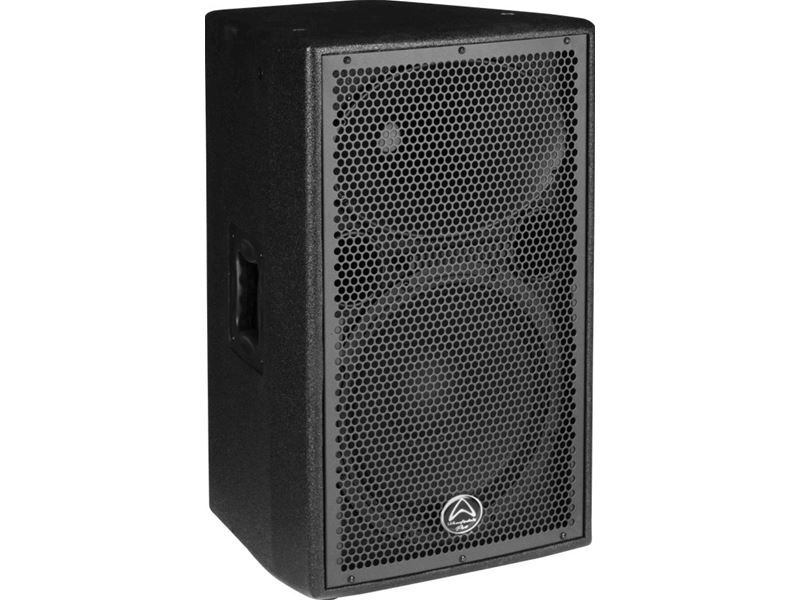

WHARFEDALE PRO Delta-X Series 400 Watts RMS 12" 2-Way Passive Loudspeaker

DELTA-X12

Wharfedale Pro

Whatsapp for enquiry Email for enquiry






DELTA-X12

400 watts
AES (RMS)
  • 12″ 2-way passive
  • 2.0″ voice coil HF driver
  • 3.0″ LF voice coil
  • 400 watts AES (RMS)
  • 800 watts Programme
  • 1600 watts Peak
  • 129 dB Max SPL @ 1 meter

Delta-X builds on the global success of the Wharfedale Pro Delta series.

Constructed from 15mm plywood and covered in the highest quality Rhino Rock paint, the new Delta-X models are instantly recognisable by their engraved iconic Wharfedale Pro ‘boomerang’ logo on their cabinets.  The fresh cosmetic design however is not the only improvement the engineering team have made.

Internally Delta-X also has a new crossover design and construction.  Using new component positioning and bracing, the sensitive crossover electronics have been re-engineered to improve long term performance and reliability – even at the highest of volumes.

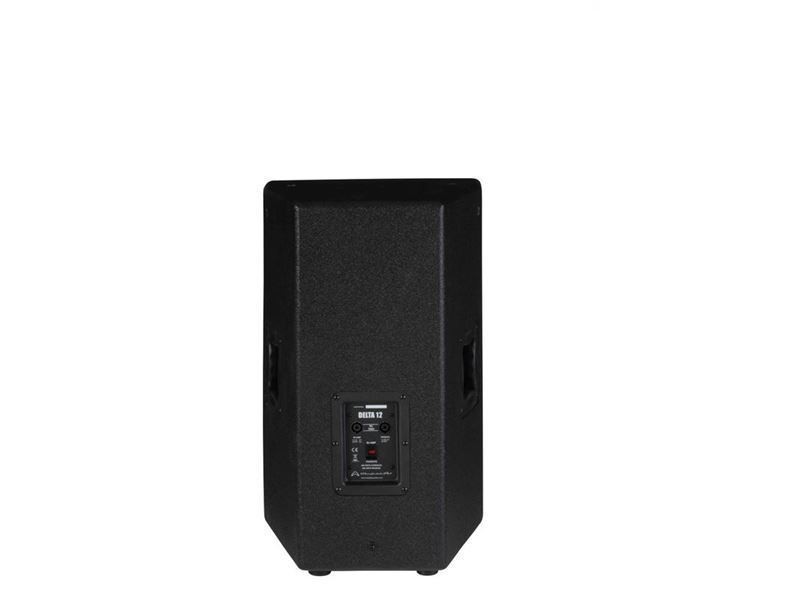

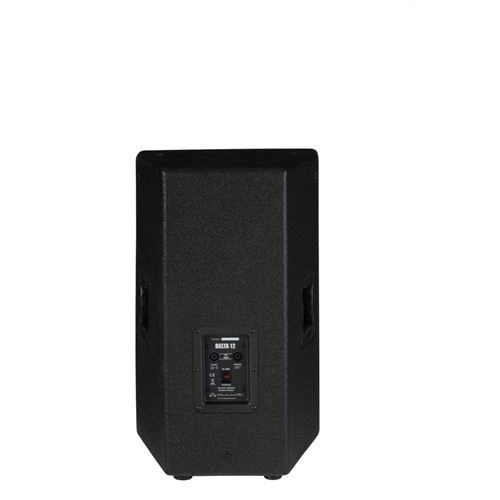

With rear panel switching, Delta-X can operate in either Bi-Amp or Full range modes.  This routing flexibility allows for Delta-X systems to be refined using multiple amplifiers and external crossovers.

Custom Wharfedale Pro transducers have also been selected. High output, low physical distortion cast frame woofers deliver unparalleled low frequency response. With the exception of the Delta-X10, 2” titanium compression drivers are coupled to 90° x 45° elliptical waveguides for impressive output level and smooth HF dispersion.

With a full lineup of 9 new models, ranging from the 300w RMS Delta-X10 to the 1600w RMS Dual Chamber 2 x 18” Delta-X218 subwoofer, Delta-X models are perfect for fixed installation and touring applications.


  • Birch plywood construction
  • Re-engineered robust crossover design
  • Suitable for touring, rental and installation
  • 1.4″ Exit, 2″ Titanium Diaphragm Compression Drivers
  • Proprietary 90° x 60° Elliptical Wave Guide Horn design
  • Bi-amp and Passive mode switching
  • Extremely durable Rhino Rock finished cabinets
  • Multiple M6, M8 & M10 rigging points and integral tripod stand adapter
  • Trapezoid shape for arrays and stage monitoring
  • Dual spider technology on 18″ woofers
  • Rubberised 4-way handle


Model Name Delta X12
System Type Passive
Configuration Two-way
Frequency Response (+/-3 dB) 60 Hz-20 KHz
Frequency Range (-10 dB) 55 Hz-20 KHz
Sensitivity (2.83 v / 1 m) 97 dB
Calculated Maximum SPL @1 m 129 dB
System Rated Impedance 8 Ω
Low Frequency Transducer
Size 332 mm / 12″
Voice Coil Size 77.1 mm / 3″
Rated Impedance 8 Ω
LF Power (re:AES2-2012) 400 w
High Frequency Transducer
HF Driver Type Compression Driver
Voice Coil Size 50.8 mm / 2″ Titanium
Exit Size 35.6 mm / 1.4″
Diaphragm Material Titanium
Rated Impedance 8 Ω
HF Power (re:AES2-2012) 50 w
Nominal Coverage (H x V) 90⁰ x 45⁰
Power
System Continuous Power 400 w
System Programme Power 800 w
System Peak Power 1600 w
Crossover frequency 1.8 KHz
Input Connector 2 x NL4 (speakON Compatible)
Hardware
Pole Mount Dual Angle (0⁰/10⁰) 35 mm
Handles 2 on Sides
Enclosure
Enclosure Material 15 mm Plywood
Finish Rhino Rock
Grille Material & Finish 1.5 mm Steel Black
Dimensions – Unpacked
Height 630 mm / 24.8”
Width Front 390 mm / 15.3”
Width Rear 241.2 mm / 9.5”
Depth 373 mm / 14.7”
Dimensions – Packed
Height 773 mm / 28.9″
Width Front 566 mm / 22.3″
Width Rear 566 mm / 22.3″
Depth 464 mm / 18.3″
Weight
Net Weight (kg / lbs) 24.7 kg / 54.5 lbs
Gross Weight (kg / lbs) 29 kg / 63.8 lbs
