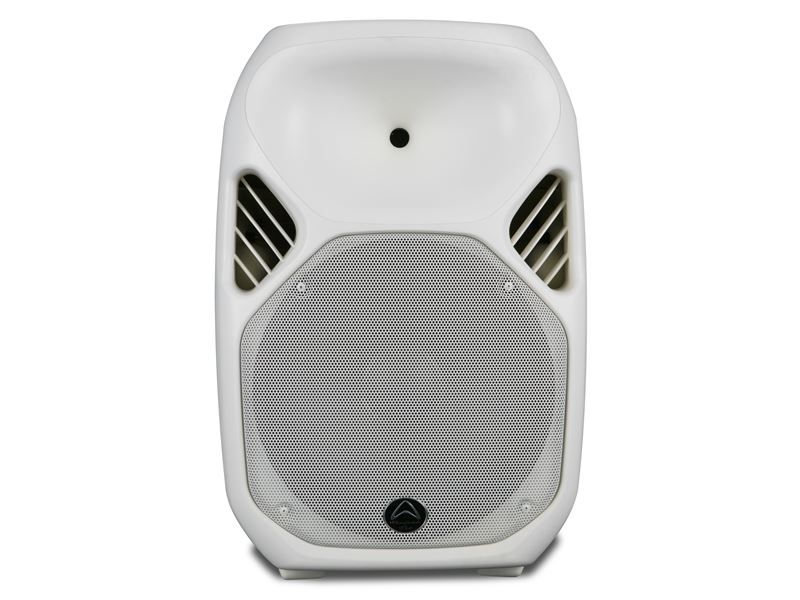

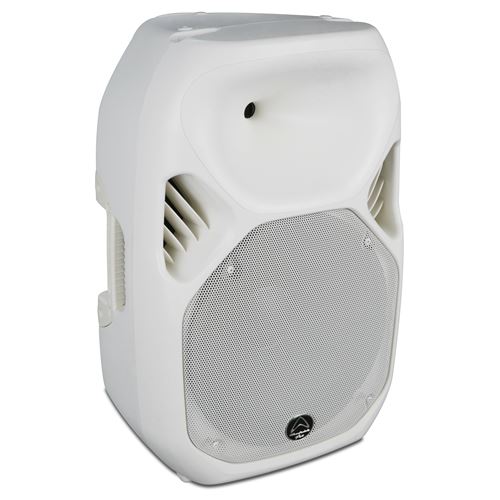

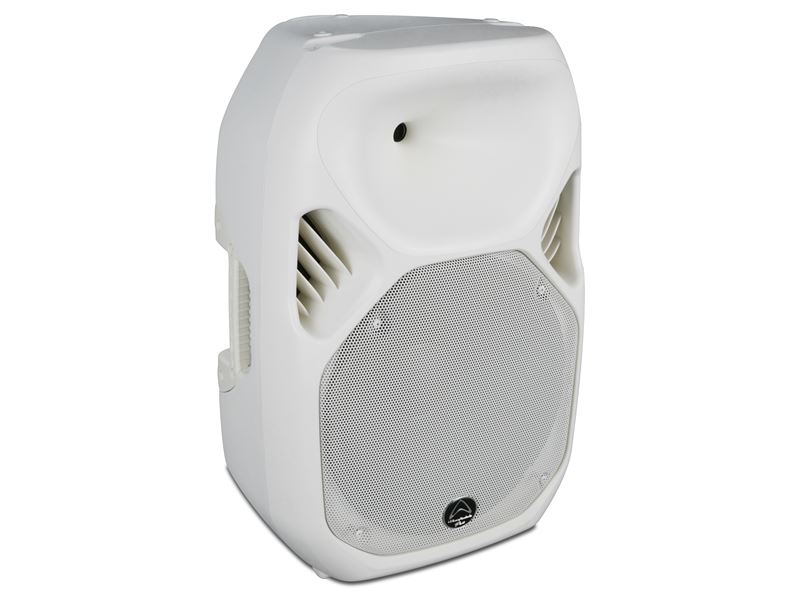

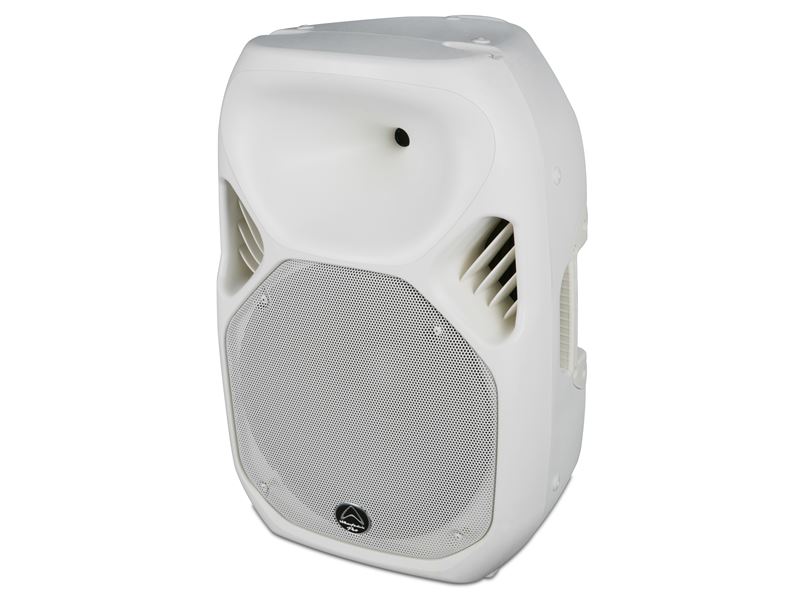

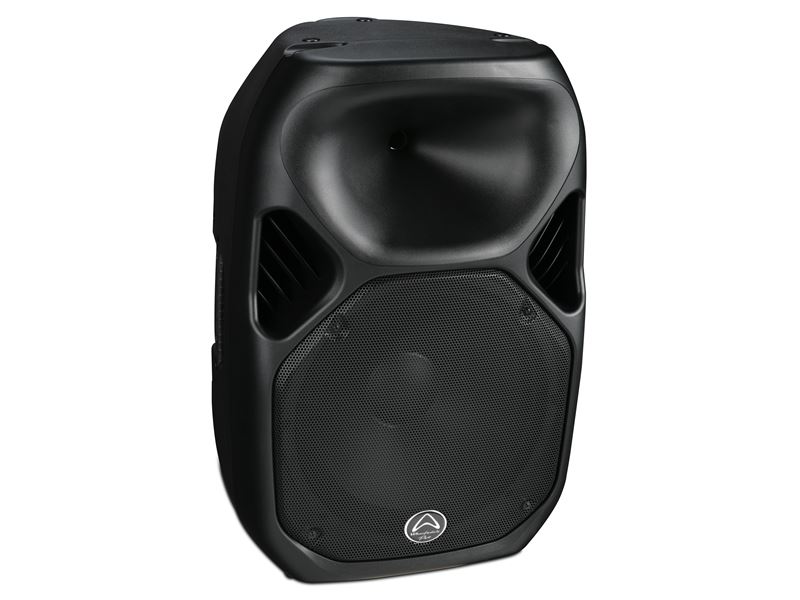

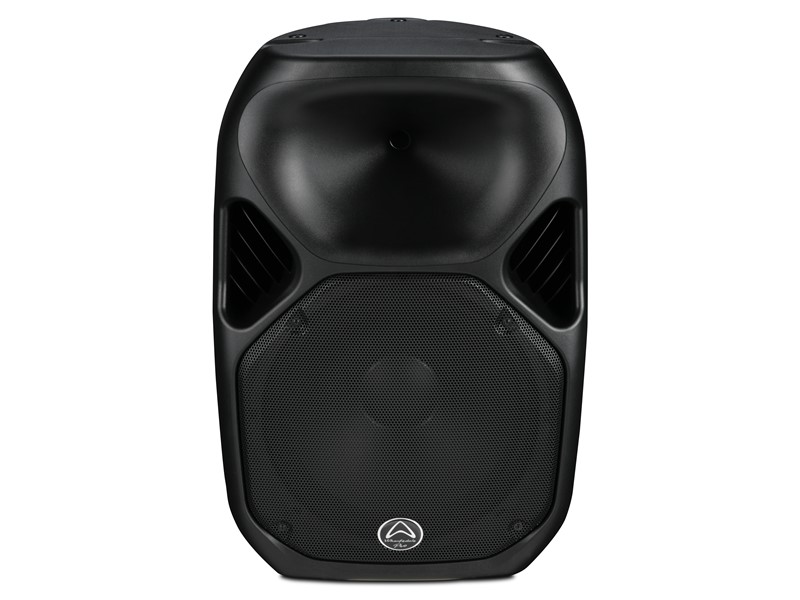

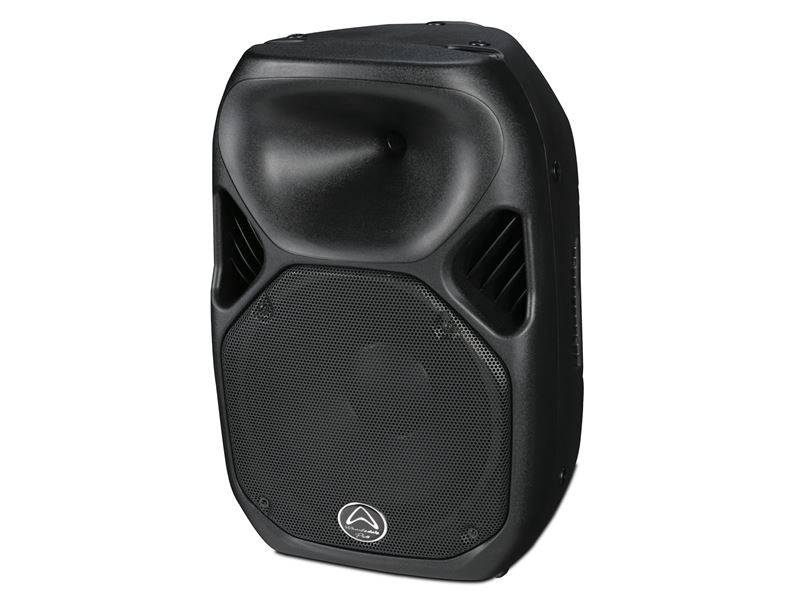

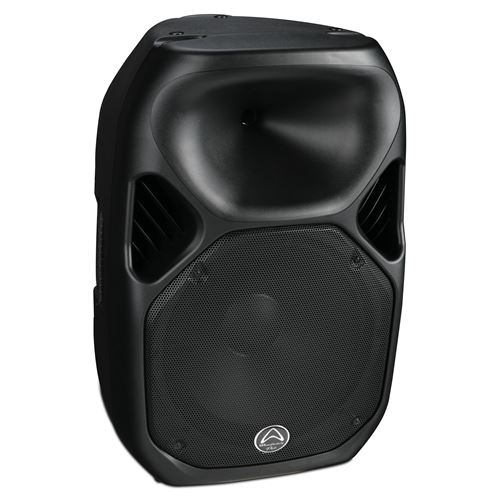

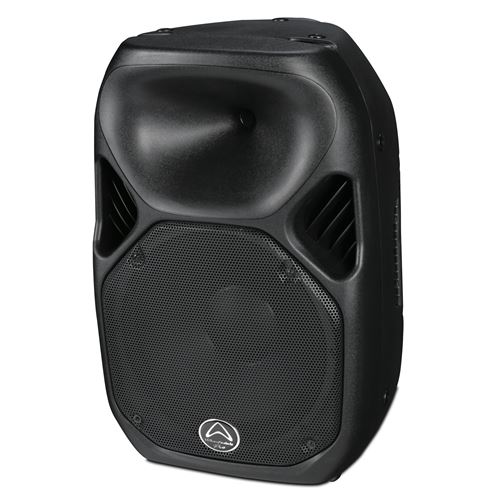

TITAN AX15
- 15″ Bi-amplified active loudspeaker
- 1.75″ HF compression driver
- 3.0″ LF voice coil
- 420 w Continuous
- 840 w Peak
- Internal 6-position DSP
Active
Using state of the art, bi-amplified technology coupled with the same rugged build of the Titan X Passive speakers, Titan AX12 and AX15 actives are ready for almost anywhere - band practice, on stage, in studios, at rehearsals, theaters, even houses of worship.
Bi-Amplified
Engineers have selected the perfect amplifier combination for the transducers and crossovers. The AX12 and AX15 each include 2 discrete amplifiers to ensure maximum efficiency and unparalleled audio quality.
Protection
Active models feature a comprehensive self protection system to ensure reliable operation right up to the power limit. Intelligent electronics constantly monitor for DC, overload, short circuit, thermals and LF/HF limiting giving you peace of mind and preventing internal damage.
Onboard mixing
The AX12 and AX15 active models feature handy mixing functions. Two inputs with separate level controls allow for overall balance and control. With easy interfacing to external mixers and processors its simple to connect to larger systems or to expand the system.
| Model Name | Titan-AX15 |
| System Type | Active 15” 2-way Bi-Amplified |
| Frequency Response (+/-3 dB) | 50 Hz-20 KHz |
| Frequency Range (-10 dB) | 40 Hz-20 KHz |
| Calculated Maximum SPL @1 m | 129 dB |
| LF Transducer Size (mm / inches) | 381 mm / 15” |
| Coil Size (mm / inches) | 75 mm / 3.0″ |
| HF Transducer Type | Compression Driver |
| Coil Size (mm / inches) | 44 mm / 1.75″ |
| Exit Size (mm / inches) | 25 mm / 1” |
| Diaphragm Material | Titanium |
| Nominal Coverage (H x V) | Hybrid Symmetry Horn 100° x 80° |
| Amplifiers | |
| Low-Frequency Power Amplifier | 350/700 W (Class D) |
| RMS/Peak Watts | |
| High-Frequency Power Amplifier RMS/Peak Watts | 70/140 W (Class D) |
| Controls—EQ | Note – EQ changed by DSP knob |
| DSP | 6 user presets |
| Hi Pass switch | 90 Hz |
| Amplifier Protection / Thermal protection | Yes |
| Low Line Voltage Shut Down | 60% Nominal line voltage |
| Driver Protection | Independent LF and HF limiters |
| DC Protection / Short Protection | Yes |
| Clip Limiter | Turns on ~350 W output |
| Limiter Indicator / Power Indicator | Red LED / Green LED |

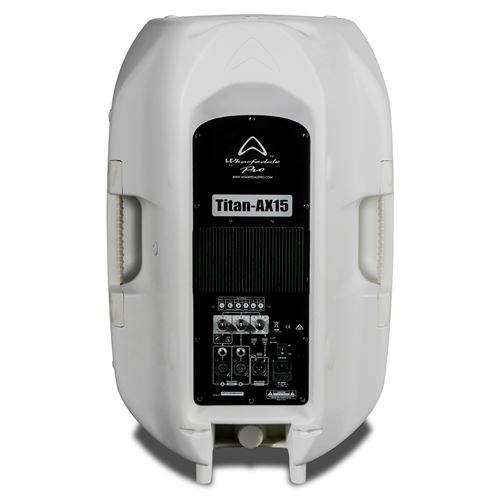

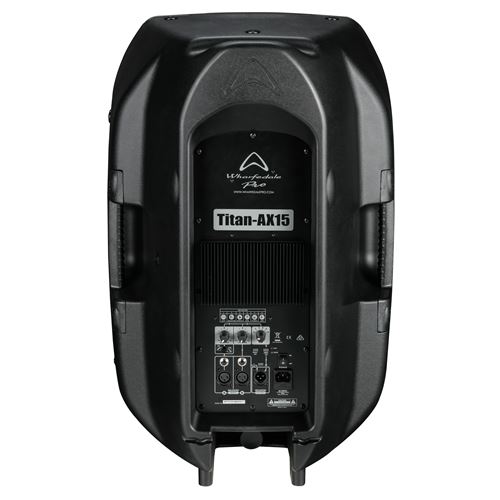

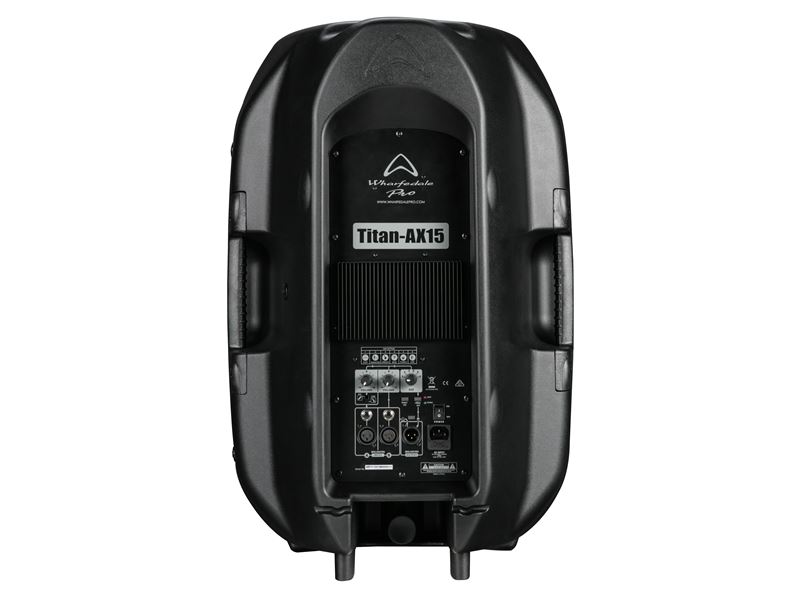

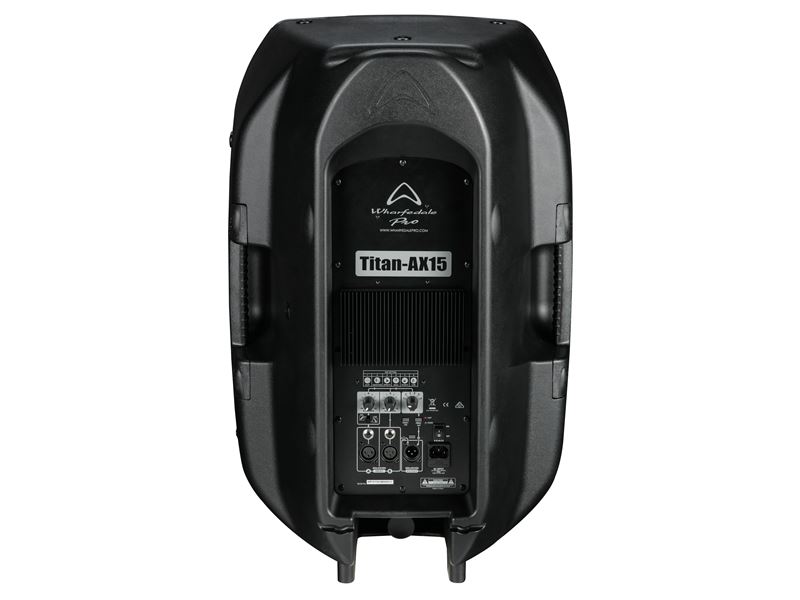

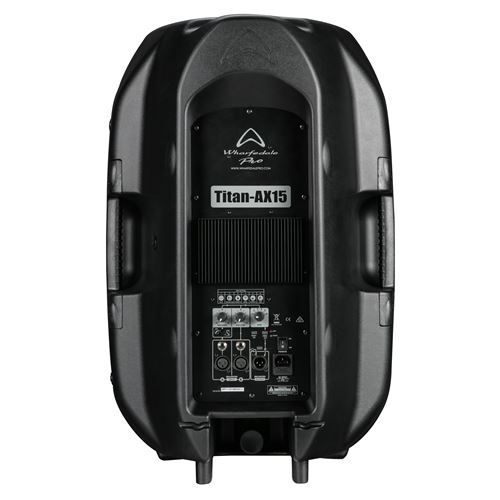

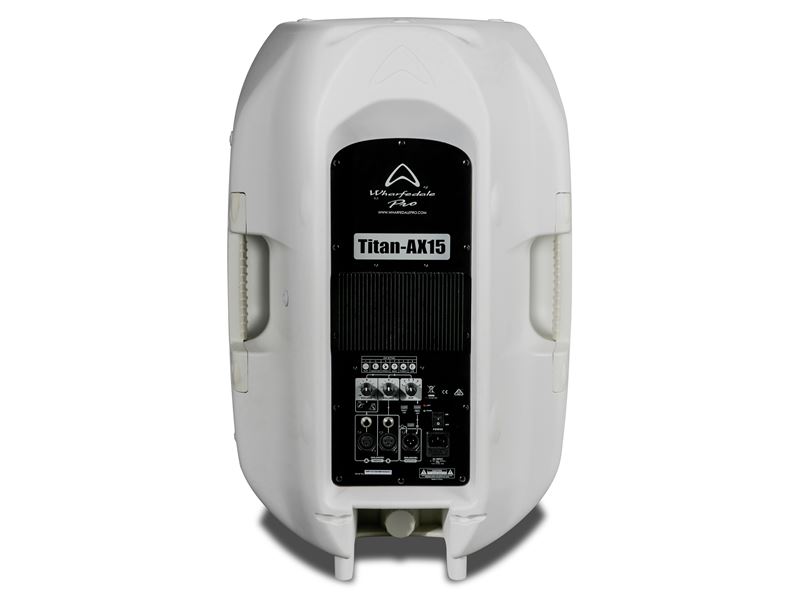

| Connectors | |
| Input – type | Switchable balanced mic/line level (Chan 1) |
| Input Connector | 2 * XLR & 2 * 1/4″ jack (Chan 1 Line/MIC) |
| Line Output Connector | Switchable LOOP/MIX Balanced Female XLR |
| AC Power Supply | SMPS |
| AC Power Options | AC100-120 V/220-240 V~ 50/60 Hz |
| Hardware | |
| Rigging / Bracket / Mounting Options | 10 M8 threaded inserts including 4 M8 threaded inserts on bottom in OmniMount 30.0-type footprint |
| 35 mm receptacle with lock screw | |
| 2 carry handles (one on each side) | |
| Optional wall-mount bracket | |
| LED Horn lighting (On/Off switch) | Yes |
| Enclosure Material and finish | Injection Moulded Polypropylene |

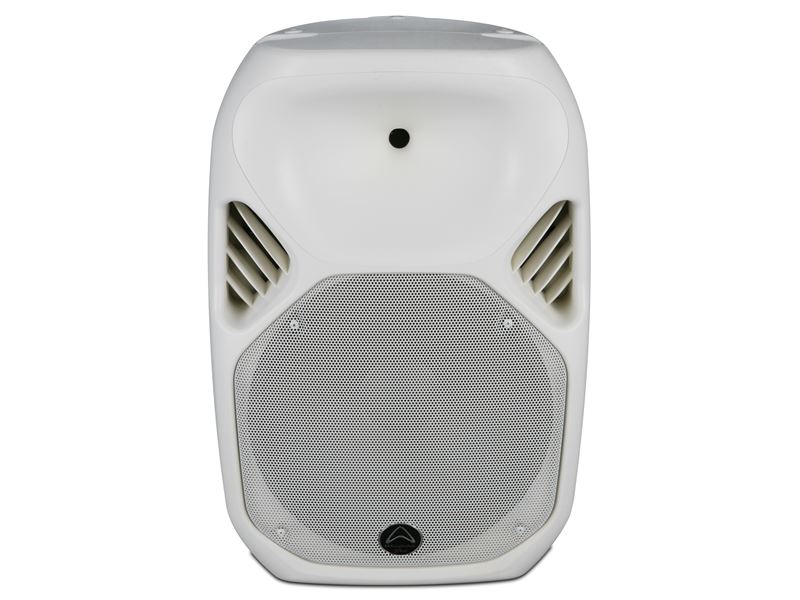

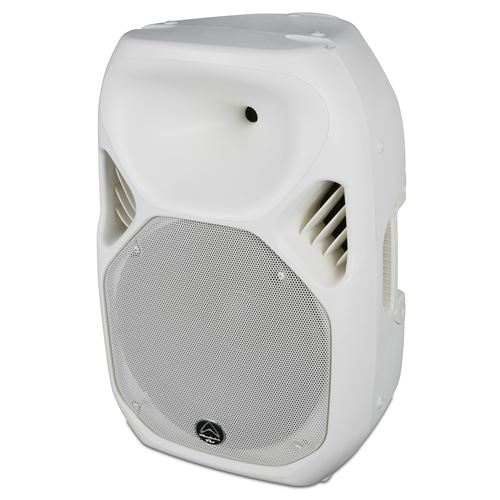

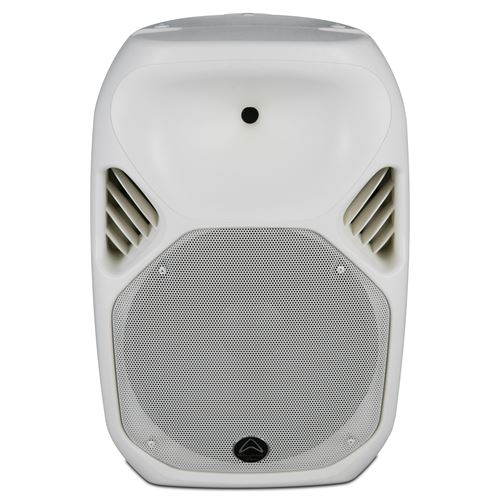

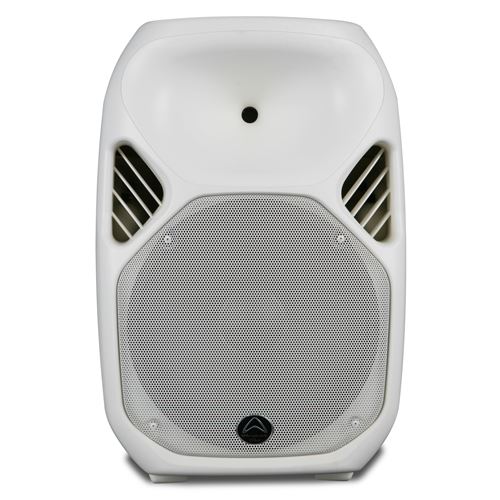

| Colour Options | Black / White |
| Grille Material & Finish | 1.2 mm steel |
| Dimensions – Unpacked – Height | 728.5 mm / 28.7″ |
| Width Front | 480.6 mm / 18.9″ |
| Depth | 395.6 mm / 15.6″ |
| Dimensions – packed – Height | 830 mm / 32.7″ |
| Width Front | 514 mm / 20.2″ |
| Depth | 489 mm / 19.3″ |
| Net Weight (kg / lbs) | 22.94 kg / 50.3 lbs |
| Gross Weight (kg / lbs) | 27.7 kg / 60.9 lbs |
