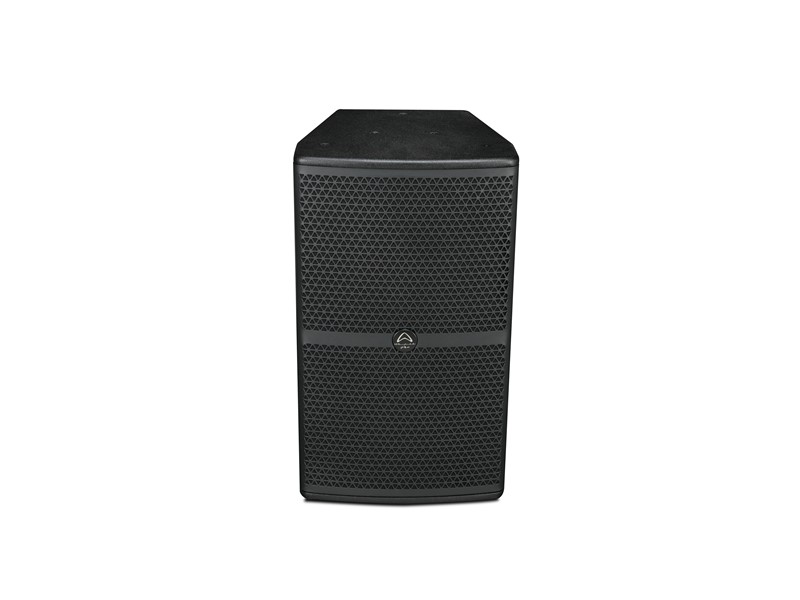

WHARFEDALE PRO WH-NEO Series 400 Watts RMS 12" 2-Way Passive Installation Speaker

WH-12NEO

Wharfedale Pro

Whatsapp for enquiry Email for enquiry






WH-12 NEO

400 watts
AES (RMS)
  • 12″ 2-way passive
  • 3.0″ LF voice coil
  • 400 watts AES (RMS)
  • 800 watts Programme
  • 1600 watts Peak
  • 130 dB Max SPL @ 1 meter

Introducing 3 passive loudspeakers for discerning installations.

The WH-NEO series consists of 3 models (10”, 12” and 15”) and have been designed for installations where dispersion angles and consistent SPL are essential.

Using NEO magnets in both the HF compression driver and the LF transducer, the WH-NEO’s are comparatively lightweight and easy for the installer to handle. The LF uses a cast aluminium basket to strike a perfect balance between weight and rigidity. The titanium HF compression driver has increased radius and increased sensitivity (IRIS) and uses the rear aluminium plate to improve heat dissipation during prolonged periods of high power.

The 12” and 15” models also feature massive 3” LF voice coils. Once again this improves heat dissipation and increases power handling.

Coverage angles are different to other installation models in the Wharfedale Pro lineup. With a 70° x 70° rounded waveguide, the dispersion characteristic of the WH-NEO is smooth and consistent. This consistency of coverage makes an installation more predictable for the installer and system integrator.

All models feature 19 * M8 rigging points which allow for accurate positioning and superb versatility within the venue.

WH-NEO

Its a TRIO……of NEO.

Using neodymium magnets in both the LF and HF drivers, the new WH-NEO’s deliver high power handling from a lightweight and good looking installation-ready cabinet.

The new WH-NEO series consists of 3 models (10”, 12” and 15”) and have been designed for installations where weight, dispersion angles and consistent SPL are essential.

Using neodymium magnets in both the HF compression driver and the LF transducer, the WH-NEO’s are comparatively lightweight and easy for the installer to handle. The LF uses a cast aluminium basket to strike a perfect balance between weight and rigidity. The titanium HF compression driver has increased radius and increased sensitivity (IRIS) and uses the rear aluminium plate to improve heat dissipation during prolonged periods of high power.

The 12” and 15” models also feature massive 3” LF voice coils. Once again this improves heat dissipation and increases power handling.

Coverage angles are different to other installation models in the Wharfedale Pro lineup. With a 70° x 70° rounded waveguide, the dispersion characteristic of the WH-NEO is smooth and consistent. This consistency of coverage makes an installation more predictable for the installer and system integrator.

All models feature 19 x M8 rigging points which allow for accurate positioning and superb versatility within the venue. With the rotatable front Wharfedale Pro logo, the WH-NEO’s will look great too.

  • Lightweight and high powered Neodymium HF and LF drivers
  • Large custom LF drivers with 3″ voice coils (WH-12 Neo & WH-15 Neo)
  • 15mm birch plywood construction
  • 19 x M8 rigging points
  • Full steel grille

  • Rotatable front grill logo


Model Name WH-12 NEO
System Type Passive – 2 way
Frequency Response (+/-3 dB) 55-18 KHz
Frequency Range (-10 dB) 50-20 KHz
Sensitivity 2.83 v / 1 m 98 dB
Calculated Maximum SPL @1 m 130 dB
System Rated Impedance 8 Ω
LF : Size (mm / inches) 305 mm / 12”
LF :Voice Coil Size (mm / inches) 75 mm / 3.0”
LF Magnet Material NdFeB
LF Power re:AES2-2012 400 W
HF Driver Type: 1″ Compression Driver
HF Coil Size (mm / inches) 44 mm / 1.75”
HF Magnet Material NdFeB
HF Diaphragm Material Titanium
Waveguide Type Rounded
Nominal Coverage (H x V) 70° x 70°
System Continuous Power 400 w
System Programme Power 800 w
System Peak Power 1600 w
Crossover frequency 2.5 KHz

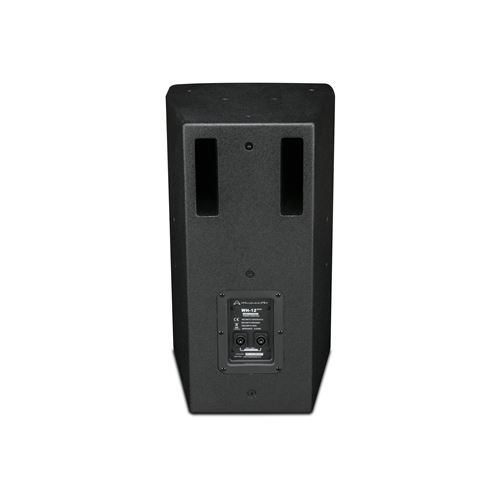

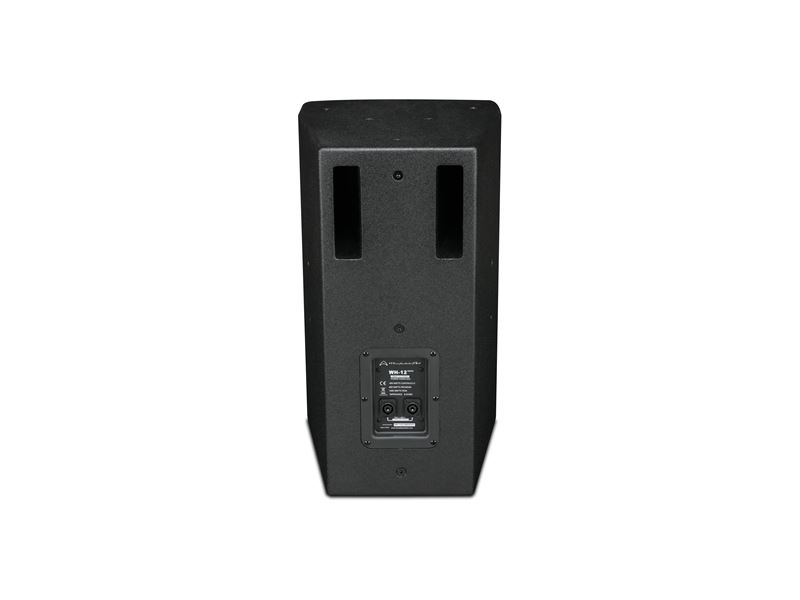

CONNECTORS : Input Connector 2 * NL4 (speakON compatible)
Rigging M8 * 19
Pole mount 35 mm pole socket
Handles NO
ENCLOSURE : Cabinet type Trapezoid
Enclosure Material and finish 15 mm plywood / Black paint
Grille Material & Finish Steel
Dimensions – Unpacked : Height 600 mm / 23.6″
Width Front 350 mm / 13.8″
Width Rear 242 mm / 9.5″
Depth 388 mm / 15.3″
Dimensions – Packed : Height 680 mm / 26.8″
Width Front / Rear 426 mm / 16.8″
Depth 458 mm / 18.0″
Net Weight (kg / lbs) 18.8 kg / 41.4 lbs
Gross Weight (kg / lbs) 22.6 kg / 49.7 lbs
