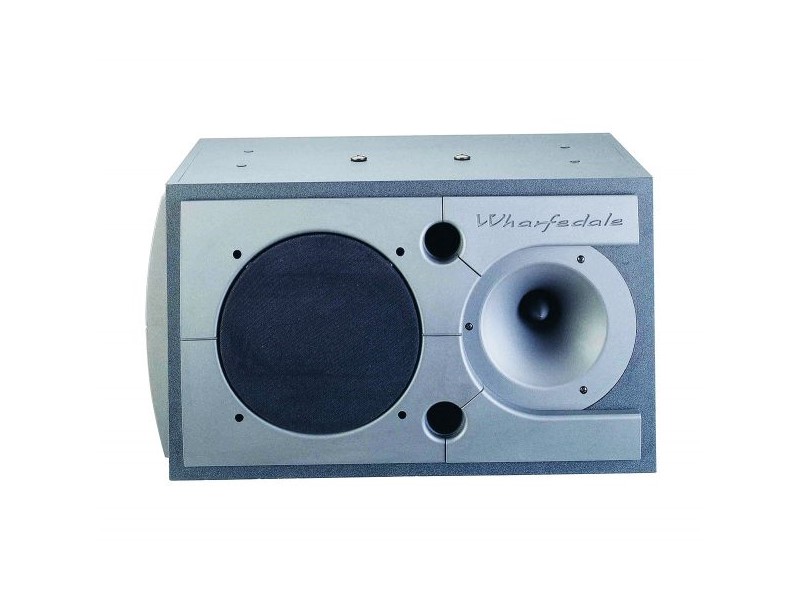

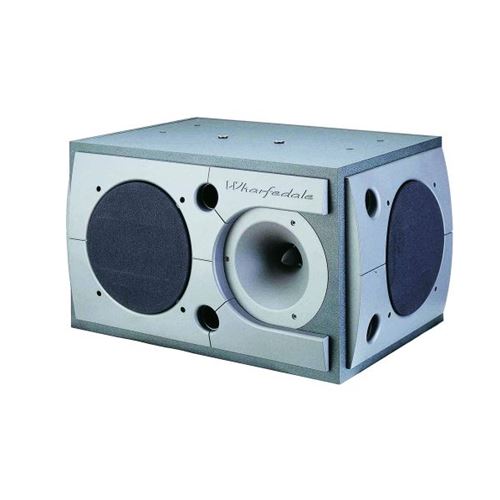

WHARFEDALE PRO 90 Series 100 Watts RMS 8" Passive Installation Speaker

2090

Wharfedale Pro

Whatsapp for enquiry Email for enquiry






2090

100 watts
AES (Continuous)
  • 8.0″ LF driver
  • 2.0″ voice coil
  • 90 dB Max SPL @ 1 meter
  • 200 watts Programme
  • 400 watts Peak

90 Series

Developed from the outstandingly successful 2180 series, the 90 series increases the choice of speakers available for this specialist application. The 90 series offers increased power handling and impressively high sound pressure levels from a range of compact boxes. The transducers used in the 2090, 2190, 3190 & 4190 models are an 8 inch re-enforced pulp cone woofer and a 25 mm titanium dome HF unit, which is Ferrofluid cooled. All models have auto-resetting thermal overload protection of the HF transducer as standard to ensure reliability and all models deliver a frequency range of 40 Hz to 20 KHz. The powerful 8 inch woofer uses a high temperature 2 inch voice coil and a selected pulp cone whilst the 25 mm titanium dome tweeter is loaded by a wide band horn; and is protected by a re-entrant thermal overload system.

The 2090, 2190, 3190 & 4190 cabinet exterior can be re-painted to match your venue interior and blend in with the environment. Whilst the units are of a strong and rugged nature, the weight is not unmanageable with the top, bottom and rear areas on all models clear for bracket mounting. The 5090 and 5190 have a wide dispersion extra bass characteristic which is perfectly suitable for Karaoke applications. The 5090 & 5190 models are intended for wall mounting, though they can be stand mounted. They can also be flown using the fixing screws in the top. Both models are also available in a high quality piano finish (PU Version) for premium installation applications.

BRACKETS INCLUDED

For an easy installation straight out of the box we have included  U shaped mounting brackets. The speakers can be mounted vertically or horizontally as you wish, still covering wide areas. The inputs are easily located to one side of the unit and the bracket will swivel and extend for optimum positioning.

Drill, drill, install!  Tidy!

SPEECH AND MUSIC, LOUD AND CLEAR



Smooth, extended frequency response combines with wide dynamic capabilities and low distortion to provide acoustic performance that makes the unit idea for music playback. The speaker systems also deliver sufficient mid and high end clarity for vocals and speech for public announcements.

By using proprietary designed units and modern manufacturing, all the aspects of sound and economics within the commercial market are met: clarity, voice intelligibility, controlled sound coverage, tested reliability and the support of a company with nearly seventy years expertise in sound reproduction are standard.

For fixed installation detail

  • Versatile installation speakers
  • ‘Baker Effect’ technology so speakers can be placed anywhere
  • Portrait or landscape orientation
  • Bass reflex tuning with 2 bass ports
  • U-shaped installation brackets included (excluding 4190)


Model Name 2090
Frequency Response (+/-3 dB) 40 Hz – 20 KHz
Calculated Maximum SPL @1 meter 90dB
Low Frequency Transducer
Size (mm / inches) 200 mm / 8″
Voice Coil Size (mm / inches) 50 mm / 2″
Coil Size (mm / inches) 25 mm
Nominal Impedance 8 Ω
Power
System AES (RMS) Power (w) 100 w
System Programme Power (w) 200 w
System Peak Power (w) 400 w
Dimensions – Unpacked (mm)
Height 270 mm
Width Front 445 mm
Depth 220 mm
