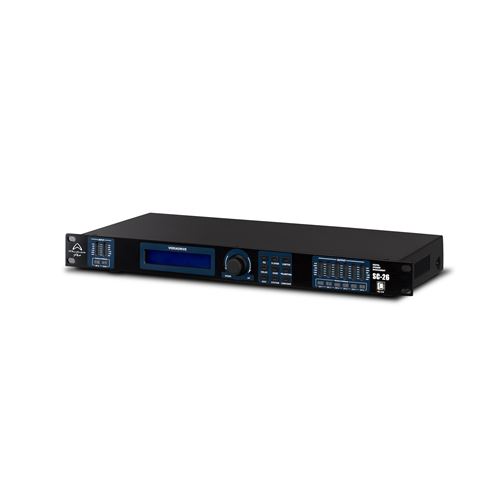

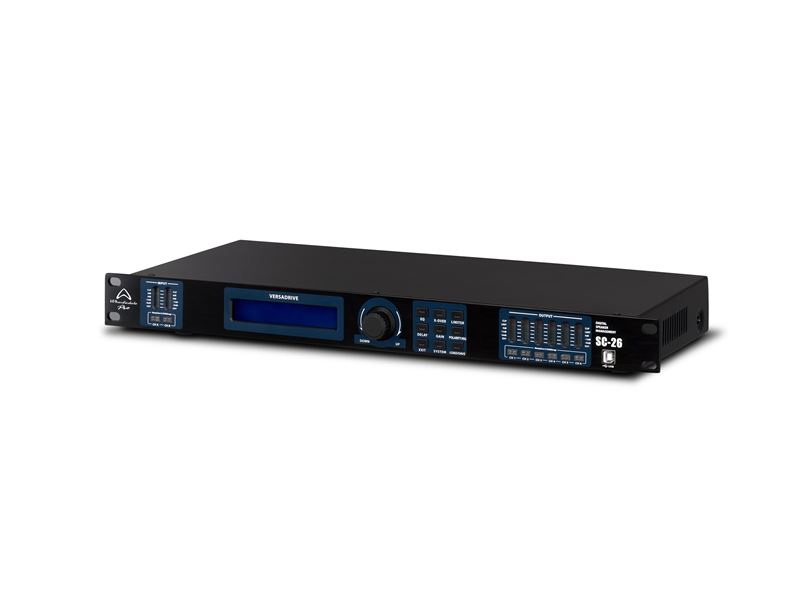

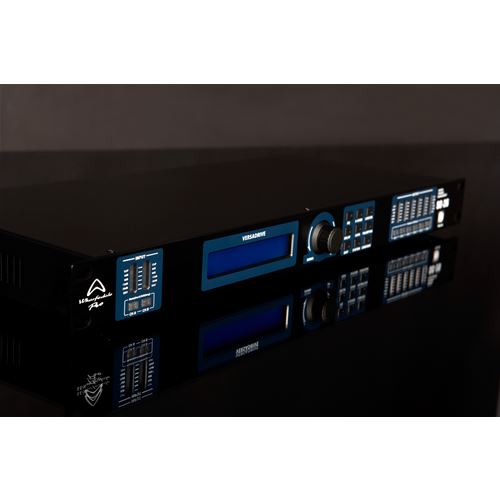

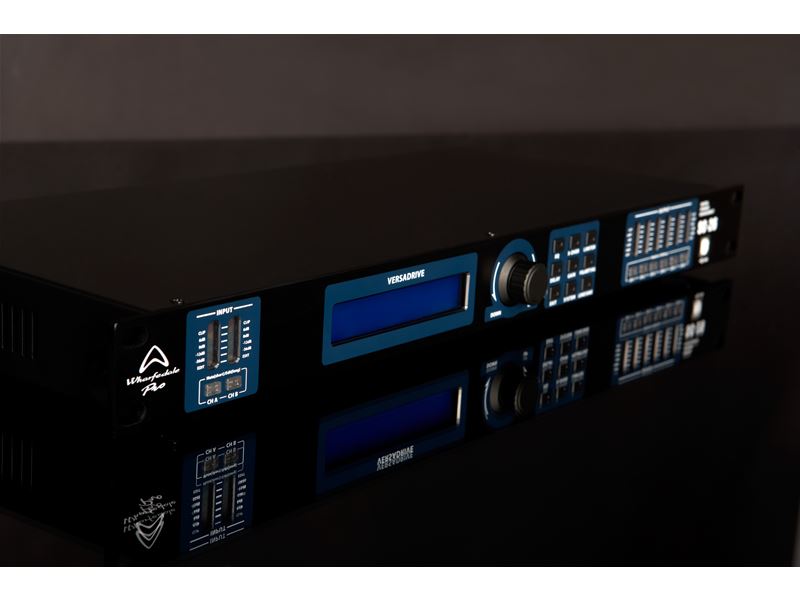

VERSADRIVE SC-26
Speaker Management System
The Versadrive SC-26 speaker management system offers all the digital signal processing a live sound engineer needs. Packaged into a neat 1U rack design, an intuitive and concise front panel with LCD screen enables engineers to make essential adjustments to the speaker configuration with accuracy. Versadrive takes control of all audio dynamics such as crossover, EQ and limiter. With USB and RS485 connectivity Versadrive can be networked and controlled using the supplied software directly from your PC. With a 32-bit DSP processor and 24-bit A/D and D/A converter, rest assured your sound will be heard clearly across every speaker in your rig.
TAKE CONTROL
The Versadrive speaker management system offers all the digital signal processing and detailed control that a live sound engineer needs.
Whether we like it or not, it’s a reality that PA systems are complex. A lot of time is spent selecting the best loudspeaker and amplifier combinations, and systems can easily grow. Its therefore essential to maintain control to ensure the best quality sound throughout the rig.

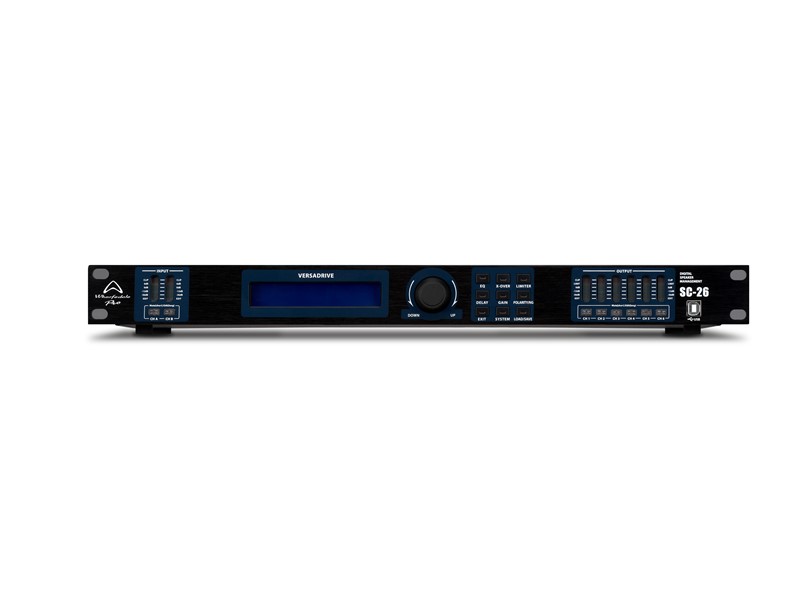

Packaged into a neat 1U rack design, an intuitive and concise front panel with LCD screen enables engineers to make essential adjustments to the speaker configuration with accuracy.

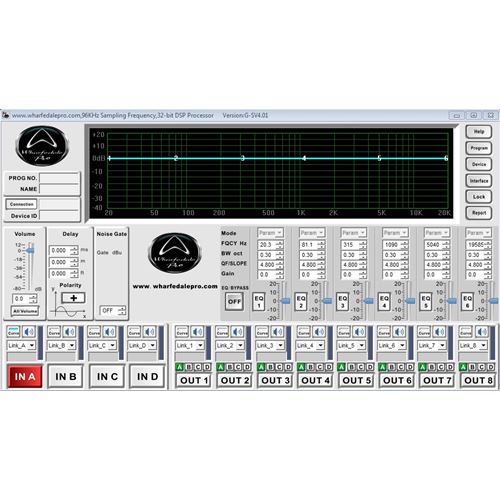

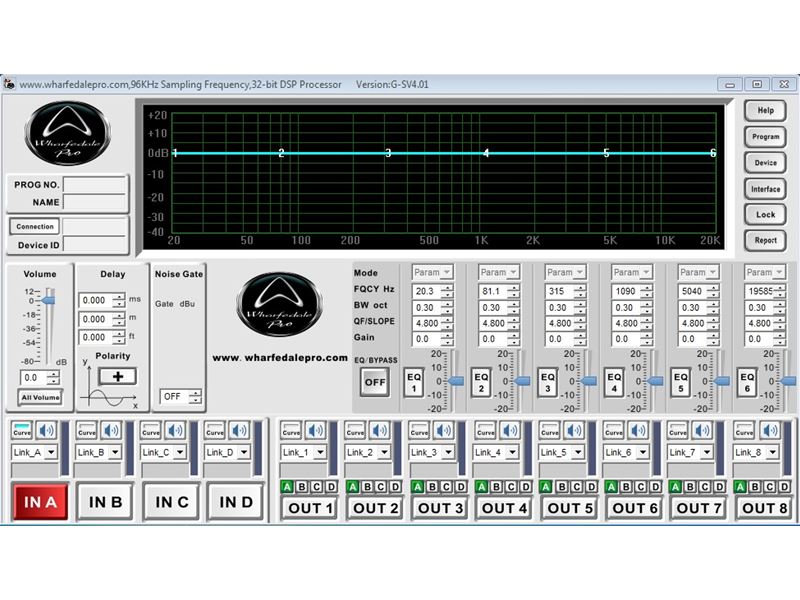

SOFTWARE CONTROL
All parameters of the Versadrive can be controlled via PC.
Not only is this extremely convenient, but a clear central graphical representation of your EQ and crossover points are displayed. This also makes light work of copying channel settings and organising your presets.
Using the PC software also allows for system backups to be made.
EFFECTS TO CONTROL YOUR RIG
A huge selection of effects are at your fingertips.
The input side includes Gain, Mute, Link, High-pass filter, Low-pass filter, Noise Gate, 8-band parametric EQ, 31 band graphic EQ, Phase and Delay.
For the output section, make your setup using any combination of Crossover, 5-band parametric EQ, Gain, Mute, Compressor / Limiter, Phase, Delay and Linking.
EXPAND YOUR RIG
While one Versadrive is powerful in its own right, the RS485 connection opens up capabilities to link up to 255 units, with remote control from up-to 1500 metres.
Complete stadiums, superclubs or any multi-room install is now easily managed by one person on their laptop. The USB connection and supplied software work as another visual aid with access to update your own presets for different events.
- Complete digital sound processing solution
- 8-band parametric EQ with low/high shelf
- Limiter / Crossover / Filter
- Independent processing for each output channel
- Password protection for venue install
- 24-bit 96 KHz AD/DA convertors
- 40-bit internal processing
- USB / RS232 and RS485 connectivity
- User friendly software included
| Model Name | SC-26 |
| Frequency Response (±0.5 dB) | 20 Hz – 20 KHz |
| DSP | 32 bit |
| A/D D/A Converter | 24 bit / 96 KHz |
| S/N Ratio | >110 dB |
| Delay time range | 0-1000 ms |
| Filter Types | Linkwitz-Riley, Bessel, Butterworth up to 48 dB/oct. |
| EQ | 6-band parametric / low shelf / high shelf |
| Memory | 30 save slots |
| Number of inputs | 2 |
| Number of outputs | 6 |
| Input connection | XLR |
| Output connection | XLR |
| PC connections | USB / 2 x RS485 |
| Net Weight | 3.6 kg / 7.94 lbs |
| Gross Weight | 4.6 kg / 10.14 lbs |
| Product dimensions | 44 x 482 x 190 mm |
