SENNHEISER | SKM 100 G4

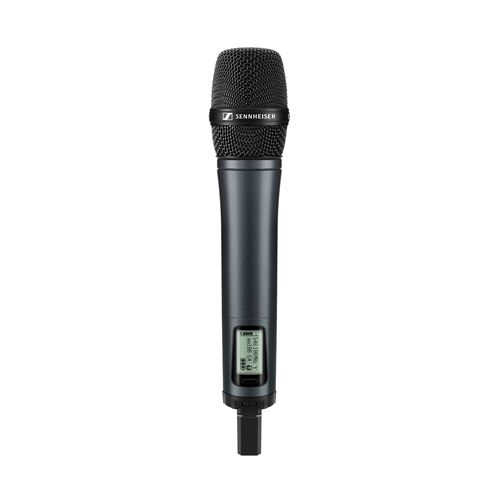

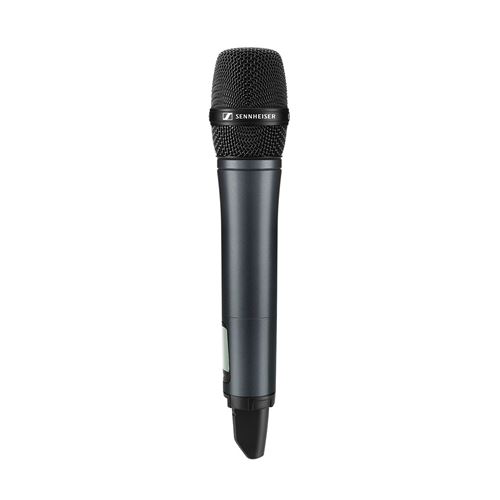

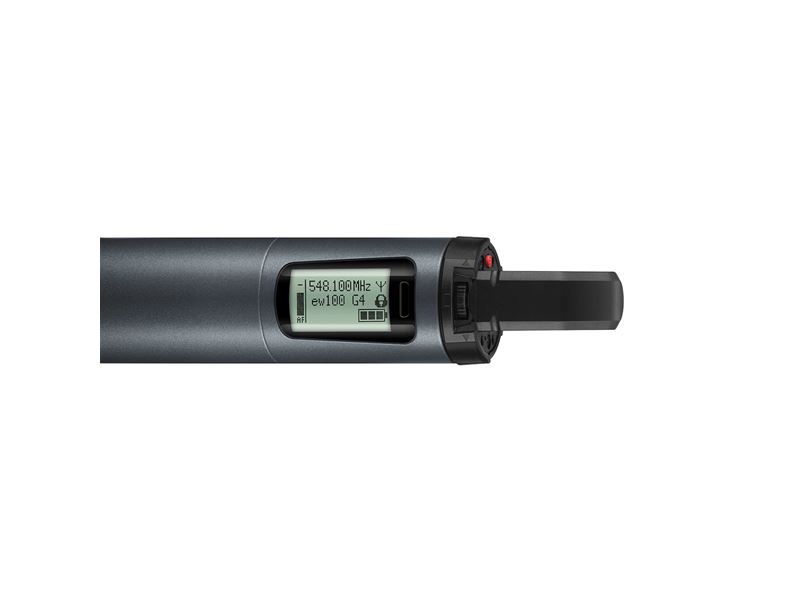

SENNHEISER G4 100 Series Handheld Transmitter

SKM 100 G4

SENNHEISER

Whatsapp for enquiry Email for enquiry






Powerful handheld transmitter with a lightweight aluminum housing for evolution wireless G4 100 Series systems.

  • Your choice of Sennheiser‘s renowned e 835, e 845, e 865, e 935, e 945 capsules

  • Easy and flexible wireless synchronization between transmitter and receiver via infrared

  • Fast frequency allocation for up to 12 receivers via new linking functionality

  • Up to 20 compatible channels

  • Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range

  • Transmission Range: up to 100 meters / 300 feet

  • High RF output power (up to 30 mW) depending on country regulations

    What's in the Box
    • SKM 100 G4 handheld transmitter
    • MZQ 1 microphone clamp
    • 2 AA batteries
    • quick guide
    • safety guide
    • manufacturer declaration sheet


  • Frequency range
    1G8: 1785 - 1800 MHz
    A: 516 - 558 MHz
    A1: 470 - 516 MHz
    AS: 520 - 558 MHz
    B: 626 - 668 MHz
    C: 734 - 776 MHz
    D: 780 - 822 MHz
    E: 823 - 865 MHz
    G: 566 - 608 MHz
    GB: 606 - 648 MHz
    JB: 806 - 810 MHz
    K+: 925 - 937,5 MHz
    •
  • Dimensions
    Approx. Ø 50 x 265 mm
    •
  • Compander
    Sennheiser HDX
    •
  • THD, total harmonic distortion
    ≤ 0.9 %
    •
  • Weight
    (incl. batteries) approx. 450 g
    •
  • Signal-to-noise ratio
    ≥ 110 dBA
    •
  • RF output power
    Max. 30 mW
    •
  • Switching bandwidth
    up to 42 MHz
    •
  • Peak deviation
    ±48 kHz
    •
  • Nominal deviation
    ±24 kHz
    •
  • Operating time
    Typically 8 h
    •
  • Modulation
    Wideband FM
    •
  • Power supply
    2 AA batteries, 1.5 V or BA 2015 accupack
    •
  • Current consumption
    at nominal voltage: typ. 180 mA
    with transmitter switched off: ≤ 25 μA
    •
  • Input impedance
    40 kΩ
    •
  • Max. Input voltage
    3 Veff
    •
  • Powering
    3 V battery / 2.4 V rechargeable battery
    •
  • Transmission frequency
    Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
    •
  • AF frequency response
    80 – 18,000 Hz
    •
  • Temperature Range
    -10 °C to +55 °C
    •
  • Frequency stability
    ≤ ±15 ppm
    •
