SENNHEISER Rackmount True Diversity Receiver for G4 300 & 500 Series Transmitter c/w GA3 Rackmount

EM 300-500 G4

SENNHEISER

Whatsapp for enquiry Email for enquiry

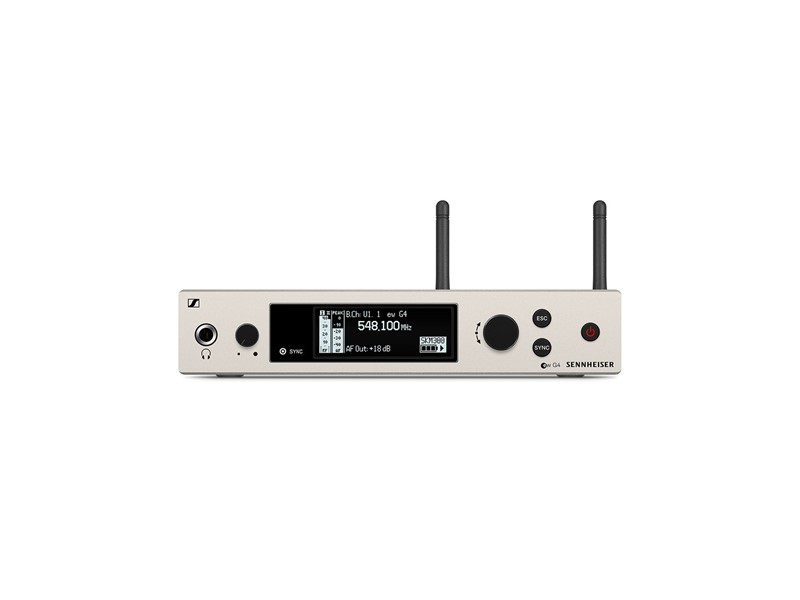

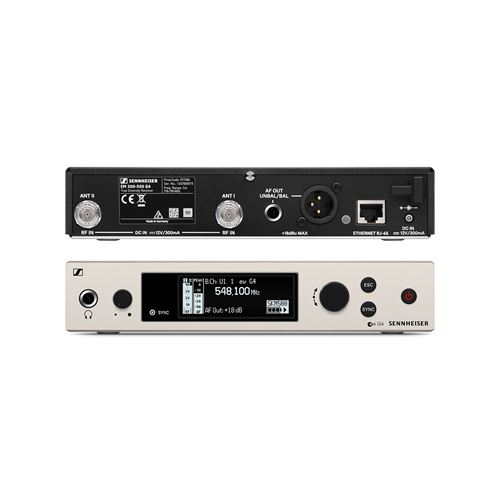

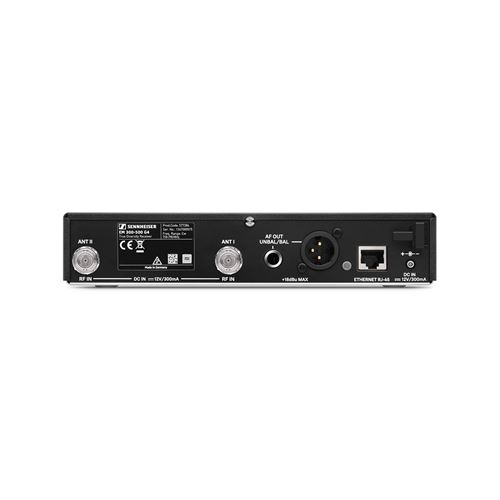

True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control with increased bandwidth and transmission power, ready to take the world‘s biggest live stages. For evolution wireless G4 300/500 Series systems.

  • True diversity half-rack receiver in a full-metal housing with intuitive OLED display

  • Easy to use, fast setup time

  • Integrated network port allows control, monitoring and setup via Sennheiser Control Cockpit and WSM Software

  • Broad range of products and existing accessories (such as microphones) allows usage in any kind of environment

  • Up to 88 MHz bandwidth, up to 32 channels

  • Increased RF output power (10/30/50 mW)

  • Transmission Range: up to 100 meters / 330 feet

  • Compatible with wireless speaker system LSP 500 PRO

  • RC (remote control) switch available for the bodypack transmitter

What's in the Box
  • EM 300-500 G4 true diversity receiver
  • 2 rod antennas
  • power supply
  • GA 3 rackmount set
  • quick guide
  • safety guide
  • manufacturer declaration sheet


  • Frequency range
    AS: 520 - 558 MHz
    Aw+: 470 - 558 MHz
    Bw: 626 - 698 MHz
    Cw: 718 - 790 MHz
    Dw: 790 - 865 MHz
    GBw: 606 - 678 MHz
    Gw: 558 - 626 MHz
    Gw1: 558 - 608 MHz
    JB: 806 - 810 MHz
    K+: 925 - 937,5 MHz
  •
  • Dimensions
    Approx. 202 x 212 x 43 mm
  •
  • Compander
    Sennheiser HDX
  •
  • THD, total harmonic distortion
    ≤ 0.9 %
  •
  • Weight
    Approx. 980 g
  •
  • Audio output
    6.3 mm jack socket (unbalanced): +12 dBu
    XLR socket (balanced): +18 dBu
  •
  • Signal-to-noise ratio
    ≥ 115 dBA
  •
  • Switching bandwidth
    up to 88 MHz
  •
  • Peak deviation
    ±48 kHz
  •
  • Nominal deviation
    ±24 kHz
  •
  • Modulation
    Wideband FM
  •
  • Power supply
    12 V DC
  •
  • Antenna connector
    2 BNC sockets
  •
  • Current consumption
    350 mA
  •
  • Adjacent channel rejection
    Typically ≥ 75 dB
  •
  • Intermodulation attenuation
    Typically ≥ 70 dB
  •
  • Receiving frequency
    Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
  •
  • RF sensitivity
    < 2.5 μV for 52 dBA eff S/N
  •
  • Squelch
    5 to 25 dBμV in steps of 2 dB
  •
  • Equalizer
    Preset 1: Flat
    Preset 2: Low Cut (-3 dB at 180 Hz)
    Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
    Preset 4: High Boost (+6 dB at 10 kHz)
  •
  • Temperature Range
    -10 °C to +55 °C
  •
  • Receiver Principle
    True diversity
  •
  • Blocking
    ≥ 75 dB
