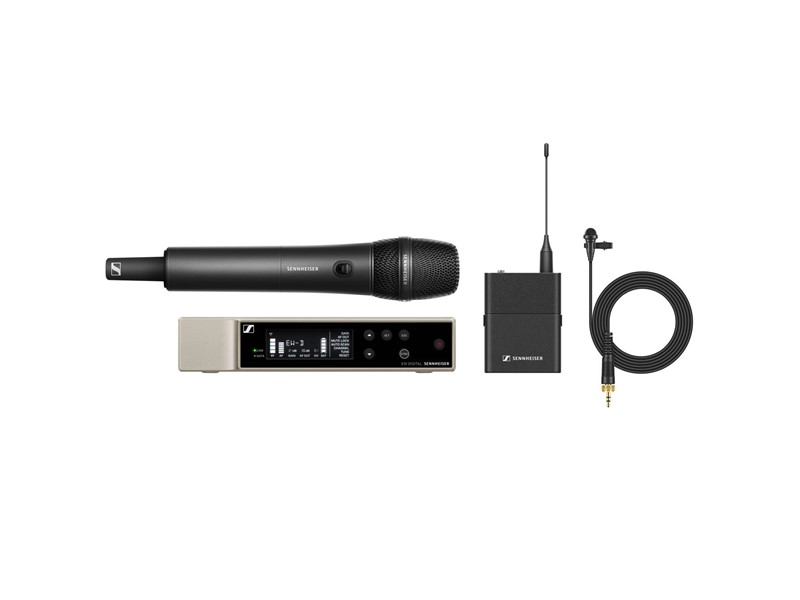

SENNHEISER Evolution Wireless Digital Series Wireless Combo Set c/w Transmitter, MMD 835-1 Capsule & ME2 Lavalier

EW-D ME2/835-S SET

SENNHEISER

Whatsapp for enquiry Email for enquiry






Versatile and feature-rich digital wireless system for those who sing, speak or present that allows for seamless product pairing and management via the EW-D Smart Assist App. With a metal housing, the robust bodypack transmitter suits perfectly for daily use on stage.

  • Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability

  • Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance

  • Auto scan creates reliable connections with minimal time and effort

  • 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail

  • Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart

  • 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels

  • 2,240 selectable frequencies allow for fine tuning

  • Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)

Raising the bar

Evolution Wireless Digital breaks the boundaries by providing more dynamic range than any wireless system currently on the market. Automatically securing the most reliable signal in a matter of seconds and scalable up 90 channels thanks to 56 MHz of tuning bandwidth, it’s easy to see why this wireless system is in a class of its own.

Equidistant Spacing – simpler than it sounds

Evolution Wireless Digital features an equidistant tuning grid previously only found in our flagship Digital 6000 and Digital 9000 wireless systems. Quality components with exceptional linearity eliminate intermodulation between EW-D transmitters, allowing frequencies to be equally spaced every 600 kHz alongside each other. This simplifies frequency coordination for wireless beginners and seasoned professionals alike, and also contributes to the system’s scalability and impressively high channel count.

An engineer in your pocket

The power of Bluetooth Low Energy puts full control right in the palm of your hand with the Sennheiser Smart Assist App. Take advantage of a remarkably fast automated setup, mobile access to every system setting and the added benefit of remote monitoring, all from the convenience of your Android or iOS device. Save time, save energy and perform with confidence.

What's in the Box
  • EW-D EM rack receiver
  • EW-D SK bodypack transmitter
  • EW-D SKM-S handheld transmitter
  • ME 2 lavalier microphone
  • MMD 835 microphone module
  • MZQ 1 microphone clamp
  • 2 rod antennas
  • power supply with country adapters
  • rackmount set
  • 4 rubber feet
  • quick guide
  • safety guide
  • manufacturer declaration sheet


  • Frequency range
    470.2 - 526 MHz
    520 - 576 MHz
    552 - 607.8 MHz
    606.2 - 662 MHz
    630 - 662 MHz
    662 - 693.8 MHz
    823.2 - 831.8 MHz & 863.2 - 864.8 MHz
    925.2 - 937.3 MHz
    1785.2 - 1799.8 MHz
  •
  • THD, total harmonic distortion
    ≤ -60 dB for 1 kHz @ -3 dBfs input level
  •
  • Operating temperature
    -10 °C - +55 °C (14 °F - 131 °F)
  •
  • Operating relative humidity
    5 - 95 % (non-condensing)
  •
  • Audio frequency response
    20 Hz - 20 kHz (-3 dB) @ 3 dBfs
  •
  • System Latency
    1.9 ms
EW-D EM
  • Dimensions
    212 x 44 x 189 mm
  •
  • Weight
    approx. 1000 g (without antennas and power supply)
  •
  • Current consumption
    ≤ 300 mA
  •
  • Input voltage range
    11 - 13 V ⎓
  •
  • Transmission power
    BLE: max. 10 mW EIRP
  •
  • Audio output level
    18 dBu max.
EW-D SKM-S
  • Dimensions
    50 x 268 mm (incl. MMD 835 microphone module)
    40 x 200 mm (without microphone module)
  •
  • Weight
    approx. 304 g (incl. MMD 835 microphone module)
    approx. 195 g (without microphone module)
  •
  • Power supply
    2 AA batteries 1.5 V (alkaline manganese)
    or BA 70 rechargeable battery pack
  •
  • Current consumption
    < 300 mA
  •
  • Input voltage range
    2.0 - 4.35 V
  •
  • Transmission power
    Audio link: 10 mW
    ERP (Range Y1-3): 12 mW ERP
    BLE: max. 10 mW EIRP
MMD 835
  • Dimensions
    405 x 350 x 73 mm
  •
  • Sound pressure level (SPL)
    154 dB
  •
  • Transducer principle
    dynamic
  •
  • Weight
    3.1 kg
  •
  • Pick-up pattern
    cardioid
  •
  • Sensitivity
    2.1 mV/Pa
ME 2
  • Connector
    3.5 mm jack
  •
  • Frequency response
    50 to 18,000 Hz
  •
  • Max. sound pressure level
    130 dB
  •
  • Cable length
    approx. 1.60 m
  •
  • Transducer principle
    pre-polarized condensor microphone
  •
  • Pick-up pattern
    omni-directional
  •
  • Sensitivity in free field, no load (1kHz)
    17 mV/Pa
  •
  • Equivalent noise level
    32 dB
  •
  • Power supply
    7.5 V
