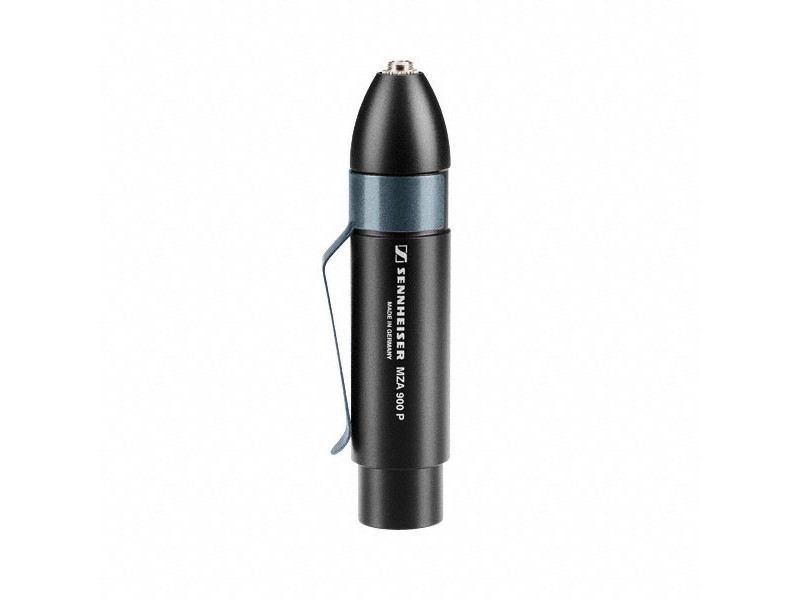

SENNHEISER Phantom Power Adapter with 3-Pin Socket

MZA 900 P-4

SENNHEISER

Whatsapp for enquiry Email for enquiry






The MZA 900 P phantom power adaptor is used to connect pre-polarized condenser microphones with a 3.5mm jack plug to microphone inputs with 10 - 52 V phantom powering (P12 - P48). The connected microphone is supplied via the adaptor.

The phantom power adaptor is available in two different versions:

  • MZA 900 P with lockable 3.5 mm jack socket (as evolution wireless)
  • MZA 900 P-4 with lockable 3-pin special socket

The adaptor is also a quick and flexible solution if a microphone is to be used for both wired and wireless applications. One and the same microphone can be used together with the MZA 900 P(-4) for wired applications (e.g. in the studio) or with a transmitter of the evolution series for wireless applications.

The MZA 900 P can also be used as a cable tester for XLR microphone cables.

  • Robust metall chassis

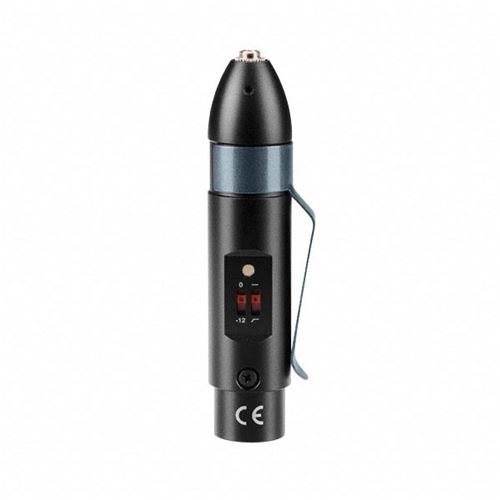

  • Switchable gain (0/-12dB)

  • Switchable roll-off filter (125 Hz (-3 dB), 12 dB/oct)

  • Two-colour control LED (phantom power, audio peak)

  • Input 3,5mm stereo jack socket, lockable

  • Output XLR-3M

What's in the Box
  • MZA 900 P with belt clip
  • Instructions for use
  • Warranty certificatee


  • 0/-12 dB
  •
  • Gain
    0/-12 dB
  •
  • 0/-12 dB
  •
  • 1,8V (P48), 0,6V (P12) @ 0dB gain
  •
  • Output voltage
    1,8V (P48), 0,6V (P12) @ 0dB gain
  •
  • 1,8V (P48), 0,6V (P12) @ 0dB gain
  •
  • 1,8V (P48), 0,6V (P12) @ 0dB gain
  •
  • 20 - 20000 Hz (-1 dB)
  •
  • P12 - P48, 10 - 52V, 2,6 - 2,8mA
  •
  • Phantom powering
    P12 - P48, 10 - 52V, 2,6 - 2,8mA
  •
  • P12 - P48, 10 - 52V, 2,6 - 2,8mA
  •
  • P12 - P48, 10 - 52V, 2,6 - 2,8mA
  •
  • 100 Ω
  •
  • Output impedance
    100 Ω
  •
  • 100 Ω
  •
  • 100 Ω
  •
  • Dimensions
    Ø 19/22 mm, L 100 mm
  •
  • Weight
    60 g
  •
  • Nominal impedance
    100 Ω
  •
  • Phantom powering
    P12 - P48, 10 - 52V, 2,6 - 2,8mA
  •
  • Operating temperature
    -20.....+60 °C
  •
  • Gain
    0/-12 dB
  •
  • Output voltage
    1,8V (P48), 0,6V (P12) @ 0dB gain
