INTEGRAL-AS2 is an stereo rack mount audio source with two independent channels. It is equipped with CD player, FM/AM tuner, two USB slots and two BT channels for wireless connectivity. It performs 2x unbalanced and 2x balanced stereo audio outputs.

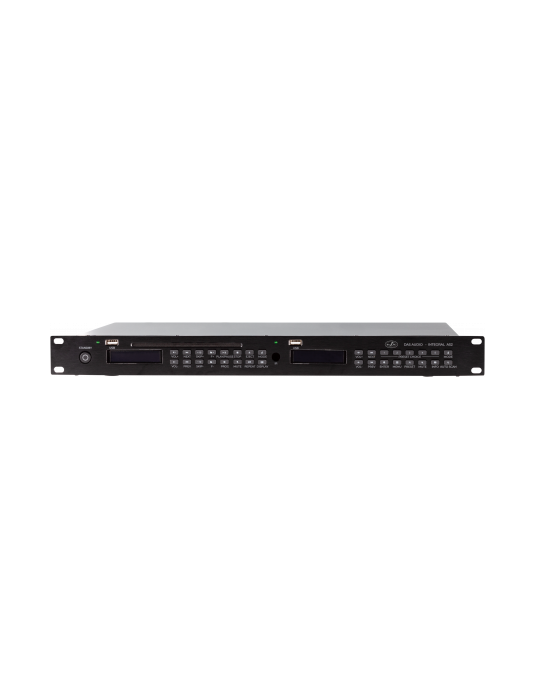

The front panel integrates two screens to display the information of each channel and a collection of buttons to navigate and activate the different features available. IR remote control, FM/AM antennas and 2x RCA cables are included.
| Performance | |
| System | 2 Channels Multimedia Player |
| Compatible Media | L Channel: CD / USB / Bluetooth |
| R Channel: USB/Bluetooth/FM (RDS)/DAB + (DAB)/AM | |
| Playable Formats | CD: CD / CD-R / CD-RW |
| USB: MP3 / WAV / WMA / FLAC / APE | |
| Bluetooth Version | Version 5.0 |
| Electronics and Connectors | |
| Frequency Range | FM (RDS): 87.50 – 108.00 MHz |
| DAB + (DAB): 168.00 – 240.00 MHz | |
| AM: 522 – 1620 kHz | |
| Frequency Response | 20 Hz – 20 kHz (+0, -0.5 dB) |
| Signal to Noise Ratio | >105 dB |
| Total Harmonic Distortion | < 0.005% |
| Unbalanced L/R Outputs | 2 x RCA |
| Level: 2 Vrms (max. 10 dBu) @ 10 kohms load | |
| Load Impedance: > 10 kohms | |
| Balanced L/R Outputs | 2 x XLR (1: GND 2:HOT 3:COLD) |
| Level: 8.23 dBu (max. 24 dBu) @ 600 ohms load | |
| Load Impedance; > 600 ohms | |
| Power Supply | AC 60/50 Hz with selector 115/230 V |
| Current Draw 230 V / 115 V | 0.13 A/ 0.26 A |
| Dimensions-Weight | |
| Dimensions ( H x W x D ) | 45 x 480 x 255 mm |
| 14,6 x 10,5 x 1,9 in | |
| Net Weight | 3,4 kg ( 7,5 lb ) |
