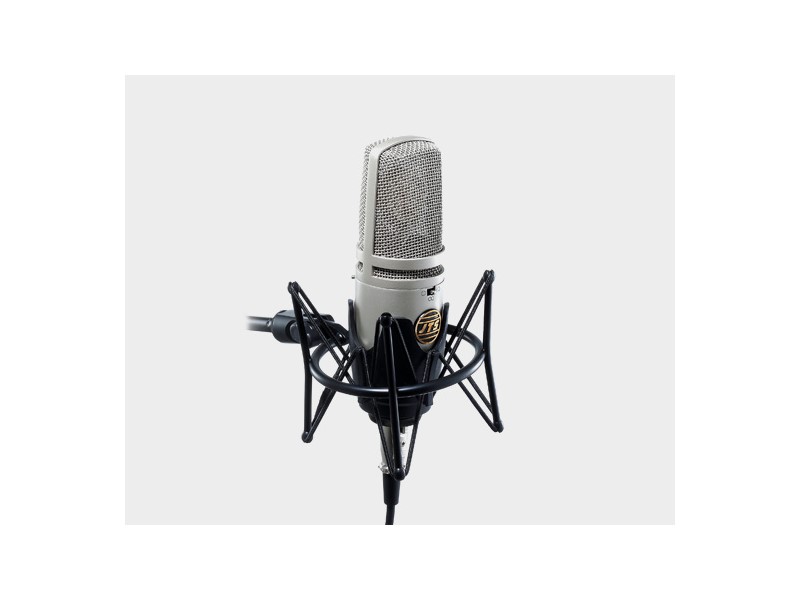

JTS Multi-Pattern Large Diaphragm Studio Microphone

JS-1T

JTS

Whatsapp for enquiry Email for enquiry






The JS-1T is a multi-pattern studio microphone with three selectable polar patterns: Cardioid, Omnidirectional and Figure-8 providing superb performance for vocals, acoustic Instruments, drum kits, percussion etc. for either Live or Studio Recording.


JS-1T
Type Large Diaphragm Condenser Microphone
Frequency Response 20~20,000 Hz
Sensitivity(at 1000Hz) -38 dB* (12.6mV)  0dB=1V /Pa
Directional Pattern Cardioid,Omnidirectional,figure-8
Low Frequency Roll-off 80Hz
Impedance 200Ω
Max. SPL For 1% T.H.D. 132 dB
Signal To Noise Ratio 78dB
Power Supply 36-52 VDC phantom power required
Current Consumption 1mA
Output 3 Pin XLR(M) (power module)
Net Weight 480 grams(16.9oz)
Dimensions(mm) Ø56mm(W)* 184mm(H)
