JTS CX Series Hu Qin Microphone c/w Power Supply Unit

CX-500HQ/PS-510M

JTS

Whatsapp for enquiry Email for enquiry






CX-500HQ

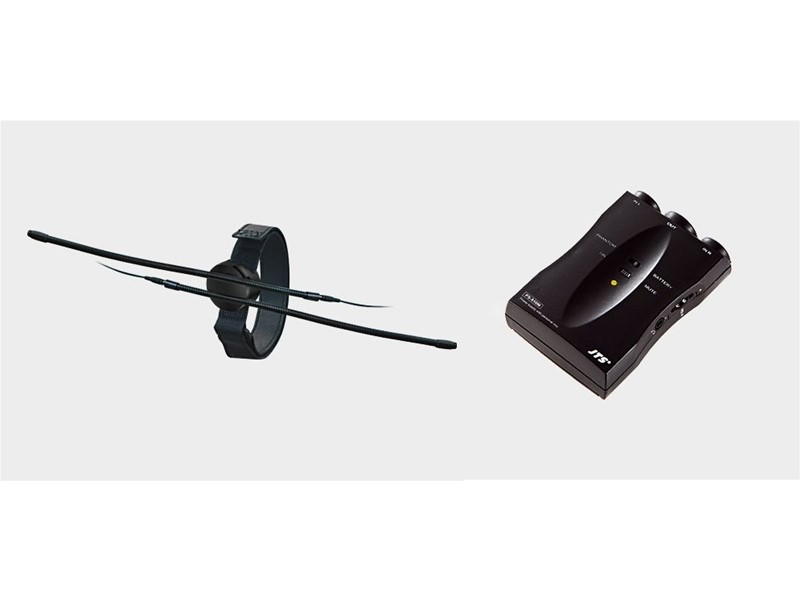

The CX-500HQ consists of two CX-500CI microphone and one PS-510M power mixer. This microphone set is designed to pick up both sides of the Chinese folk instrument Hu Qin. It reproduces crystal clear strings and the warm harmonic. The bundled PS-510M helps to find the best mix of two microphones.


PS-510M

The PS-510M is developed based on PS-500. The PS-510M provide both 9V battery power and
phantom power. It is built with earphone output for musician to monitor a preferred mix of two

microphone signals before goes to PA.


CX-500HQ
Type Omni-directional Condenser
Frequency Response 20~20,000 Hz
Sensitivity (at 1,000Hz) -58±3dB*(1.25mV)*0dB=1V/μbar
Impedance 1.5kΩ
Max.SPL for 1% T.H.D. 130 dB
Signal-To-Noise Ratio 68 dB
Output Connector 4P Mini XLR
Power Supply 1-5 VDC
Current Consumption ≤0.5mA
Weight 6.5 grams (including cable)
Dimensions(mm) Ø6mm(W)*13mm(H)
Standard Accessory MA-500

PS-510M
Frequency Response 20~20,000 Hz
Power Supply Batt. Power 9V / 12~48V Phanton Power
Current Consumption Phantom: max. 20 mA
Battery: max. 80mA with Headphone(16Ω/32Ω)
Input Impedance 5 k Ω
Output Impedance 470 Ω balanced
Input 4P Mini XLR(M) (2 channels)
Output Connector 3P XLR(M)
Headphone Jack 3.5mm
Dimension (m / m) 92mm(W)* 23mm(H)* 65mm(D)
