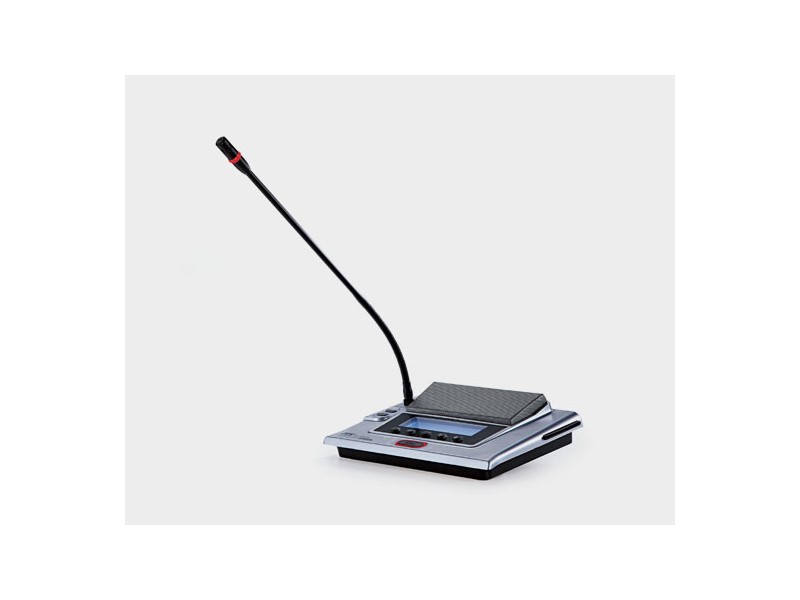

JTS CS-120 Series Delegate Unit

CS-120DU

JTS

Whatsapp for enquiry Email for enquiry






The CS-120DU is the basic delegate unit. Under the control of CS-120CU there are 4 types of operation mode. 3 key voting function is available. Voting result can be read on the LCD screen.

There are two lengths of detachable gooseneck microphone and three types of capsules for choices to meet various requirements. ф3.5 mm earphone output and microphone input phone jack are provided.


CS-120DU
Model No CS-120CH/CS-120DU
Output frequency response 40-16000Hz
Earphone load >16 Ω
Earphone volume 10 mV
Earphone output φ 3.5mm stereo jack
Max. power consumption 1.65W (with 256 x 64LCD)
1W (without 256 x 64 LCD)
connection 7P-DIN dedicated cable with buckle
Microphone Type Uni-directional electret condenser microphone
Sensitivity -46 dBV/Pa
Frequency response 80-18000Hz
Input impedance 2kΩ
Directivity 0°/180° >20 dB(1kHz)
Equivalent noise 25 dBA (SPL)
Maximum sound pressure level 125 dB (THD<3%)
