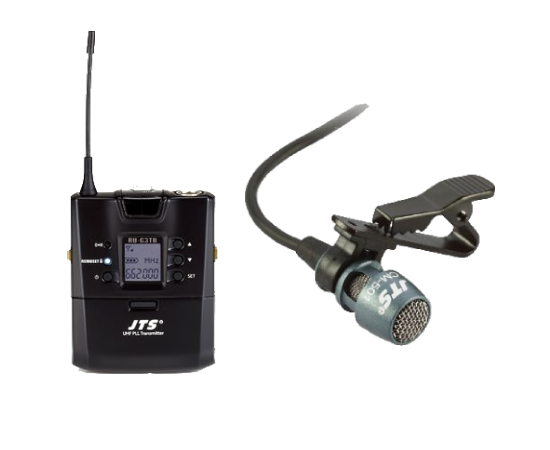

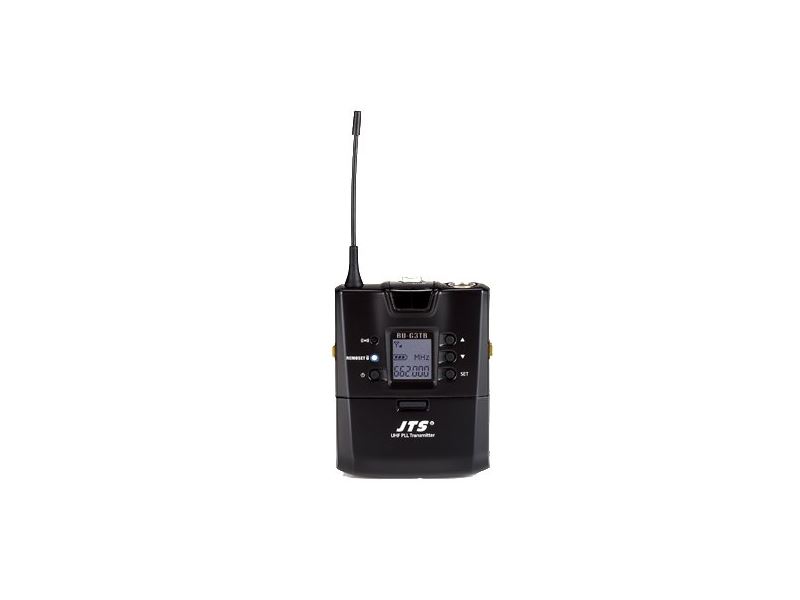

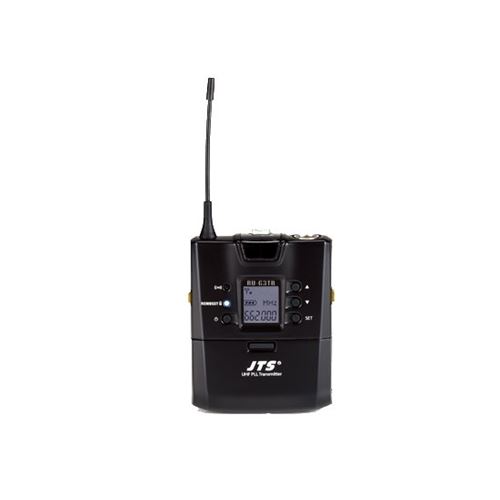

RU-G3TB
* Phase-locked Loop (PLL) synthesized tuner.
* Powered by 2 x AA batteries with 12 hrs. average battery life.* Equipped with 4 Pin Mini XLR connector.
* LCD display with channel and battery life indicator, ID number.
* The “lock-on” function prevents tampering and RF interruption.
* Extended dynamic range and smooth frequency response.
* Noise mute and tone-key squelch.
* Compatible with Guitar cable and wireless instrument microphones.

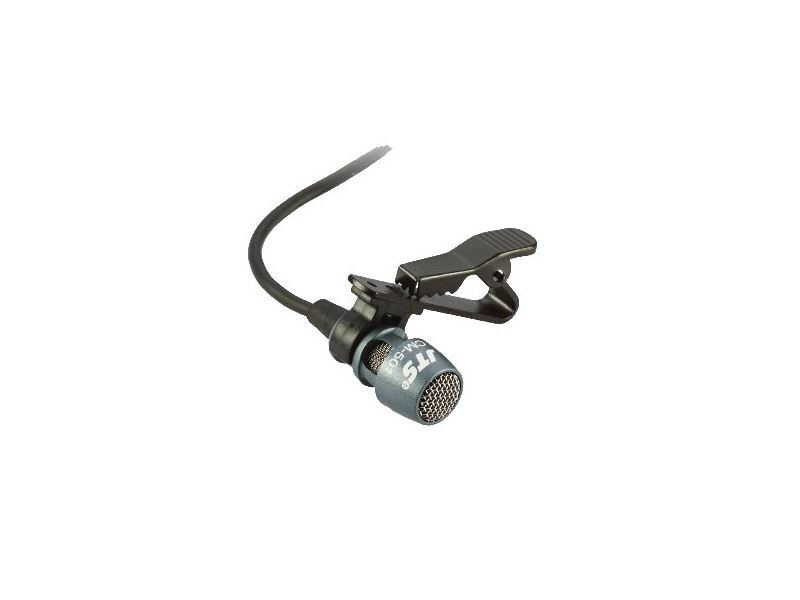

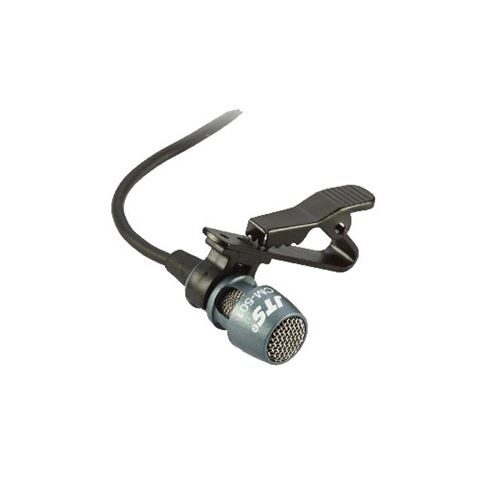

CM-501
* Uni-direction for high-quality voice pick-up.* Wide dynamic range and frequency response for excellent sound reinforcement.
* Small size for minimum visibility.
* Together with clip for easy attaching to a tie, lapel, dress etc.
| RU-G3TB |
| Frequency Preparation | PLL Synthesized Control |
| Carrier Frequency Range | UHF 470~960 MHz |
| Frequency Setting | Remoset U Ultrasonic |
| RF Outputs | Low/High |
| Stability | <±10KHz@ Fc |
| Frequency Deviation | ±48KHz |
| Spurious Emissions | <-50dBc |
| Display | LCD+LED |
| Input Connector | MINI XLR |
| Controls | Power ON/OFF, Mute ON/OFF, Group, Channel, Frequency, GAIN Adjust, Auto Power Off Adjust, Lock-on Mode |
| Battery | UM3, AA x2 |
| Slot-in Charging | Yes |
| Dimensions | 62(W) x 80.3(H) x 22.6(D) |
| CM-501 | |
| Connector | 4P Mini XLR |
| Frequency Response | 100~15,000 Hz |
| Polar Pattern | Cardioid |
| Sensitivity (at 1KHz) | -60±3 dB* (1mV)*0dB=1V/μbar |
| Impedance | 2.2kΩ |
| Max. SPL for 1% THD | 130dB |
| Dimension(mm) | Ø10.1mm(W)* 26.4mm(H) |
| Net Weight | 21.5g |
