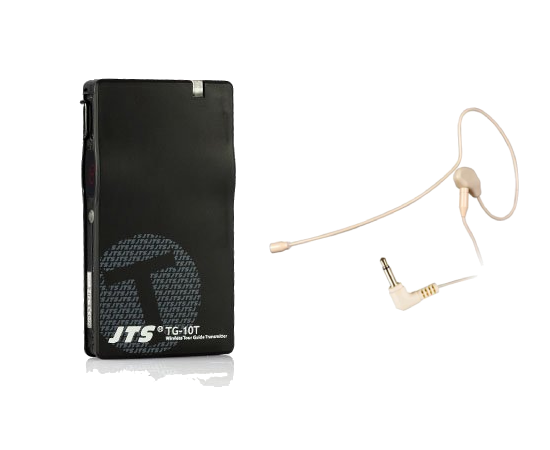

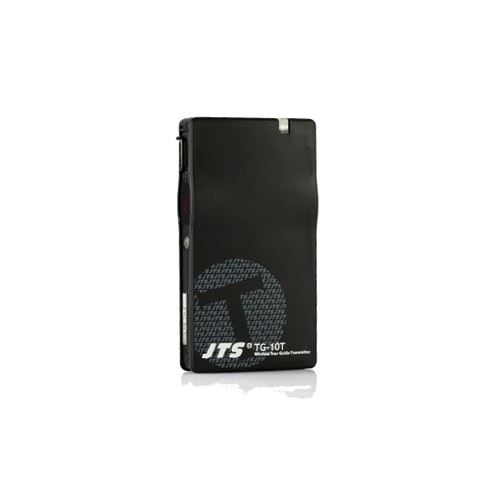

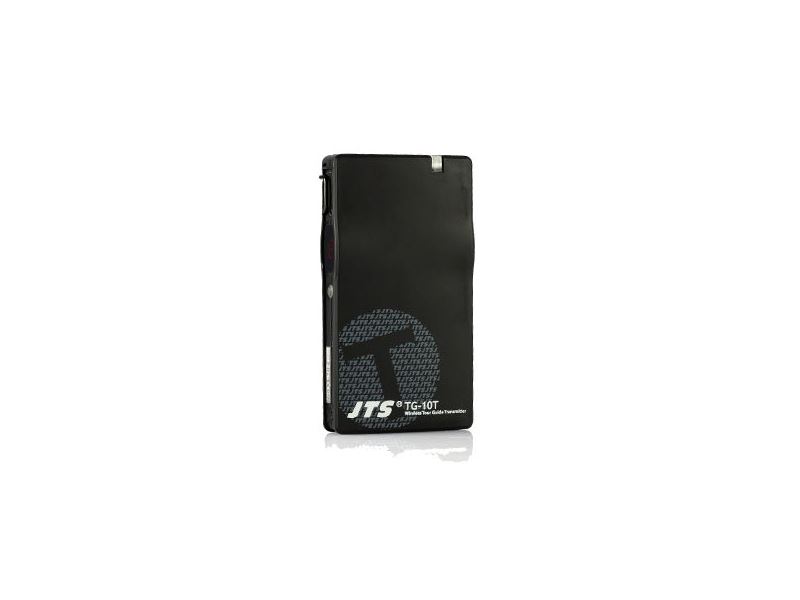

TG-10T
* Handy and fashion outward.
* Preset 16 selectable UHF channels.
* Using Lithium cell to provide long operation time.
* Transmitter with built-in condenser capsule.
* LED display on both transmitters and receivers.
* Belt-pack and neck-set wearing.
* Earphone WM-10TG for TG-10R; earhook microphone CM-801S
for TG-10T.
* 60m operation distance.
* Compatible with stationary transmitter TG-10STX and receiver TG-10SRX.

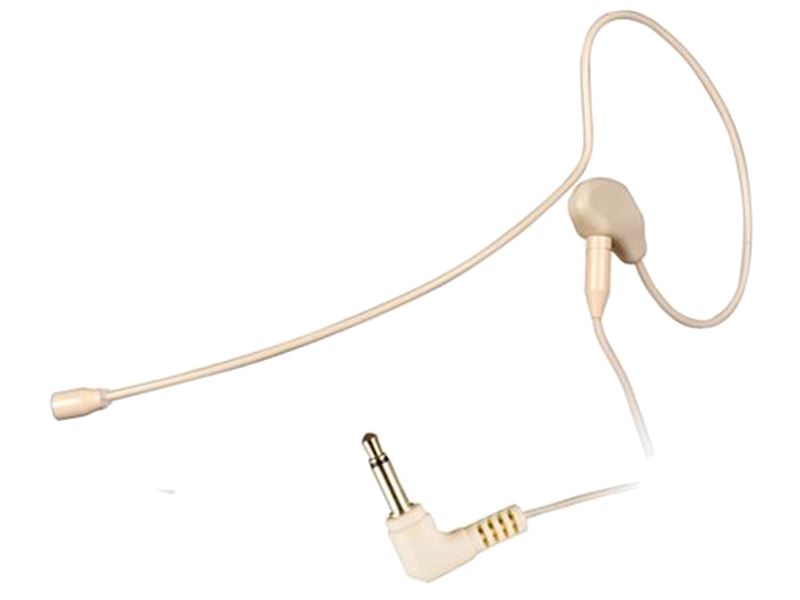

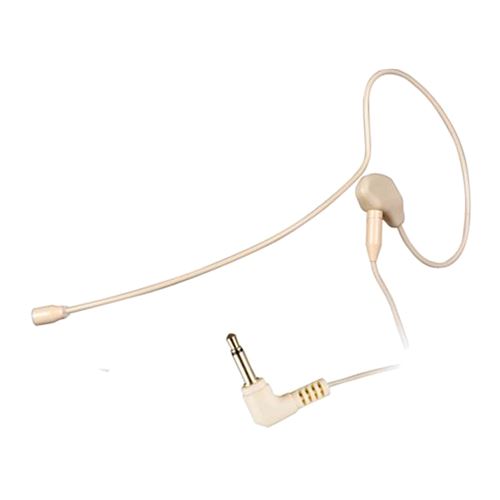

CM-801S
This lightweight condenser microphone is ideal for use with wireless bodypack transmitters and is comfortable to wear even for long events. With an omni-directional pickup pattern the microphone provides natural speech reproduction while remaining inconspicuously small.
| TG-10T | |
| Model | TG-10T |
| Internal Microphone | Omni-directional Condenser Microphone |
| Frequency Preparation | PLL Synthesized Control |
| Carrier Frequency Range | 470~960 MHz |
| 3x Frequency Range | 856.100 - 864.900 MHz (F band)
606.500 - 629.900 MHz (U band) 721.500 - 748.375 MHz (G band) 658.125 - 678.500 MHz (D band) 487.125 - 506.500 HHz (I band) 502.000 - 694.000 MHz (T band) |
| RF Outputs | 10mW |
| Stability | ±10kHz |
| Frequency Deviation | ±48kHz |
| LED Display | Channel |
| Controls | Power On/Off
Channel selection Voiume control |
| Spurious Emissions | < -50 dBC |
| Audio Frequency Response | 40~18,000 Hz |
| Microphone input connector | 1/8” Mono Phone Jack |
| Battery life | 14 hours typical |
| Battery | Lithium cell (3.7V, 1300mAh) |
| Dimension(mm) | 54mm(W)* 17mm(D)* 99mm(H) |
| CM-801S | |
| Connector | 801CS (3.5 stereo plug) |
| Frequency Response | 60 ~ 15,000Hz |
| Polar Pattern | Omni-directional |
| Sensitivity (at 1KHz) | -64±3 dB* (0.63mV)*0dB=1V/μbar |
| Impedance | 1.8kΩ |
| Max. SPL for 1% THD | 130dB |
