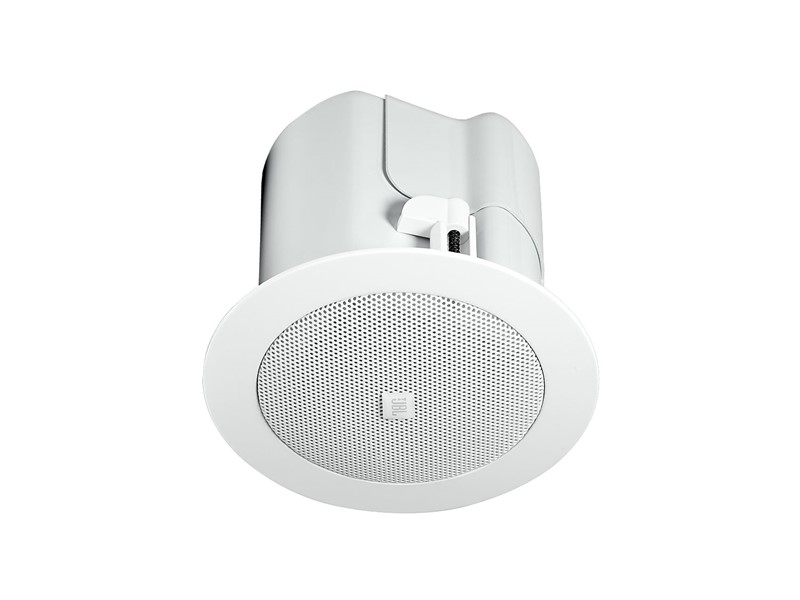

The Control 42C is an ultra-compact, in-ceiling satellite loudspeaker designed for use with the Control 40CS/T in-ceiling subwoofer. When combined with the Control 40CS/T, the Control 42C offers an extremely natural sounding and powerful subwoofer-satellite system that is perfect for applications requiring wide bandwidth and superior sonic performance with minimal visual impact.
For full-range wide-bandwidth performance, either 2 or 4 Control 42C mid-high speakers can be driven from the Control 40CS/T subwoofer (or from a Control 50S/T surface-mount or Control 60PS/T in-ceiling subwoofer). The crossover for this subwoofer-satellite system is included in the subwoofer, and the system can be driven either low-impedance or from a 70V/100V distributed speaker line.
Features
- Small, Unobtrusive Size
- High-Fidelity Sound for Subwoofer-Satellite Systems
- Elegant industrial design fits any décor
| Frequency Range | 140 Hz - 20 kHz |
| Power Rating | IEC System Long-Term Ratings (low-Z direct): 30 Watts Continuous Program Power 15 Watts Continuous Pink Noise (60W peak), 100 hr |
| Sensitivity | 82 dB (1kHz - 16 kHz) |
| Drivers | 60 mm (2.5 in) |
| Coverage Angle | 160° conical |
| Impedance | 16 ohms |
| Input Connectors | Two removeable locking 2-pin connectors with screwdown terminals. |
| Optional Accessories | MTC-RAIL tile rails MTC-42NC New Construction bracket MTC-42MR Mud Ring Construction Bracket |
| Included Accessories | C-ring support backing plate, knockout strain relief, cutout template, paint shield. |
| Dimensions (Diameter x Depth) | 127mm Diameter x 94mm Diameter Depth (5.0 in x 4.2 in) |
| Maximum SPL (1m) | 94 dB (low-impedance,114 dB peak) |
| Color | White |
| Safety Agency | Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
| Backcan | formed steel (included "blind-mount") |
| Baffle/Rim | ABS baffle with UL94-V0 flame class fire rating. |
| Plenum Usage | Yes, backcan included |
