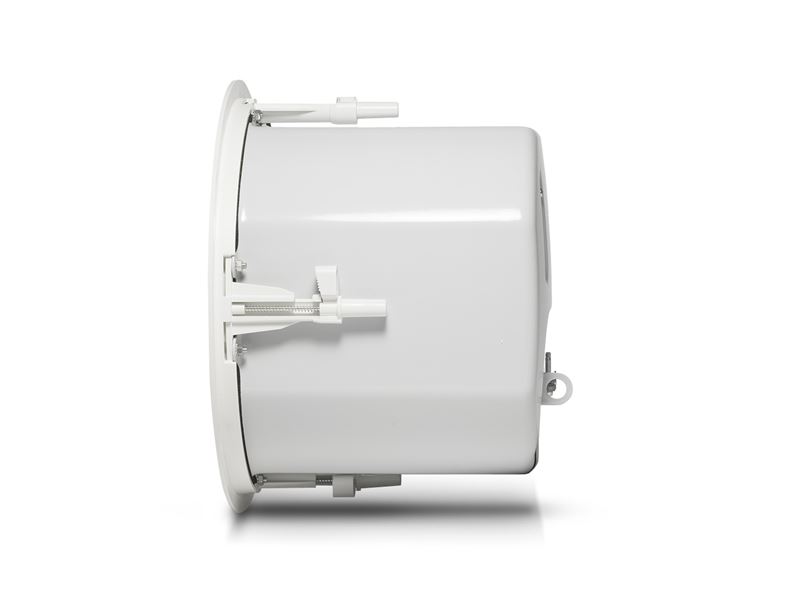

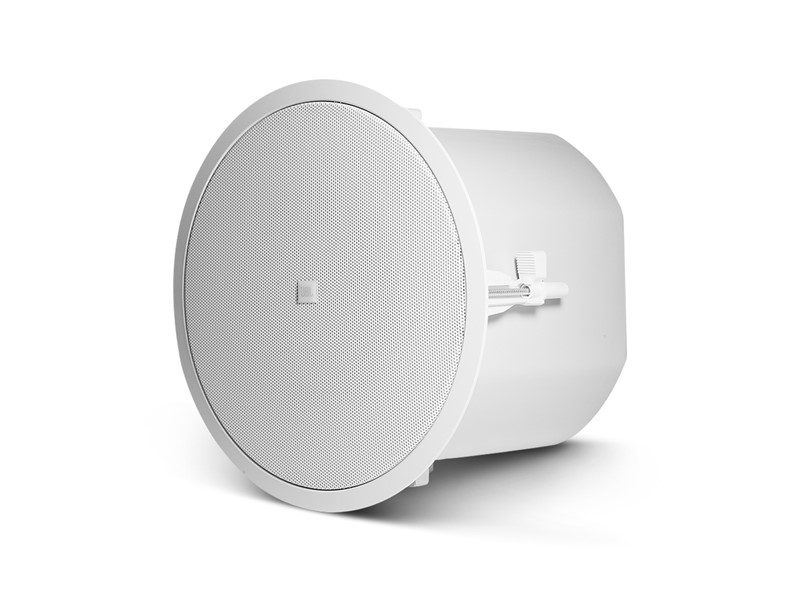

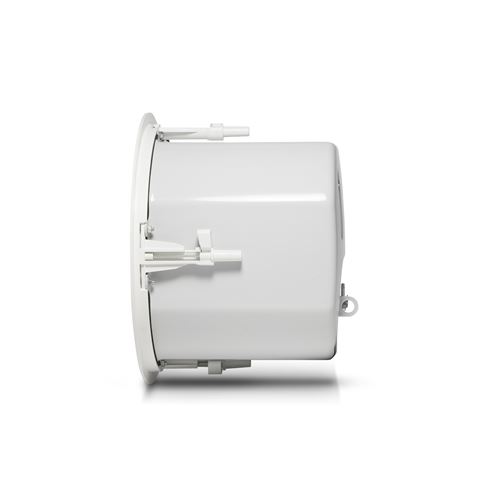

The JBL Professional Control 226C/T is a premium in-ceiling professional loudspeaker designed for applications requiring superior quality sound in ceiling mount applications.
Features
- Consistent 120° broadband pattern control for exceptional coverage
- Coaxial design featuring:

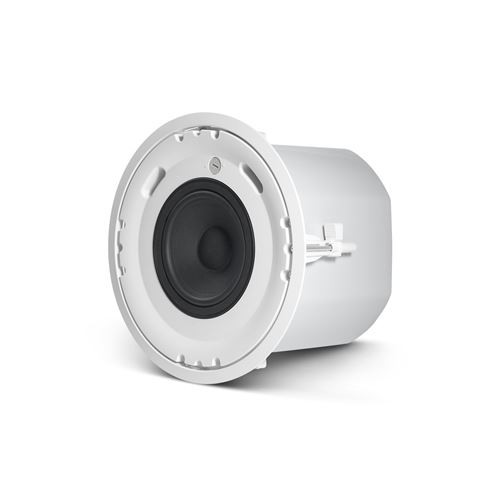

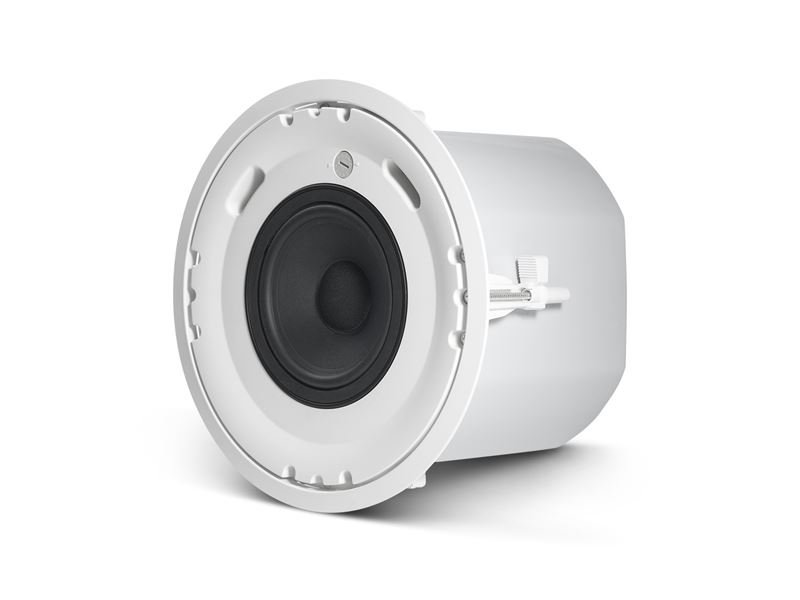

Kevlar-reinforced 165 mm (6.5 in) woofer
25 mm (1 in) compression driver - Extraordinary clarity for speech and vocals with extended frequency response for music
- 150 Watts Power Handling
- Advanced high-slope crossover network for constant coverage and smooth, natural midrange
- Integrated back can with clean, contemporary grille
| Frequency Range (-10dB) | 47 Hz - 19 kHz |
| Power Rating | IEC Long-Term System Power Rating: |
| 150 W continuous pink noise (600 W peak), 2 hrs 100 W continuous pink noise | |
| (400 W peak), 100 hrs | |
| Transformer Taps | 68W, 34W, 17W (& 8.5W @ 70V), plus transformer bypass |
| Sensitivity | 90 dB (1 kHz - 16 kHz) |
| Coverage Angle | 120° conical, constant directivity |
| Drivers | LF Driver: 165 mm (6.5 inch) |
| HF Driver: compression driver, 25 mm (1 inch) coil | |
| Dimensions (H x Dia) | Ø 330 mm (13 in) round baffle x depth from back of baffle of 246 mm (9.7 in) |
| Net Weight (each) | 9.1 kg (20.0 lb) |
| Shipping Weight (pair) | 23.9 kg (52.5 lb) |
| Maximum SPL (1m) | 112 dB (low-impedance, 118 dB peak) |
| 108 dB (top 70V/100V tap) | |
| Impedance | 8 ohms (in direct/bypass setting) |

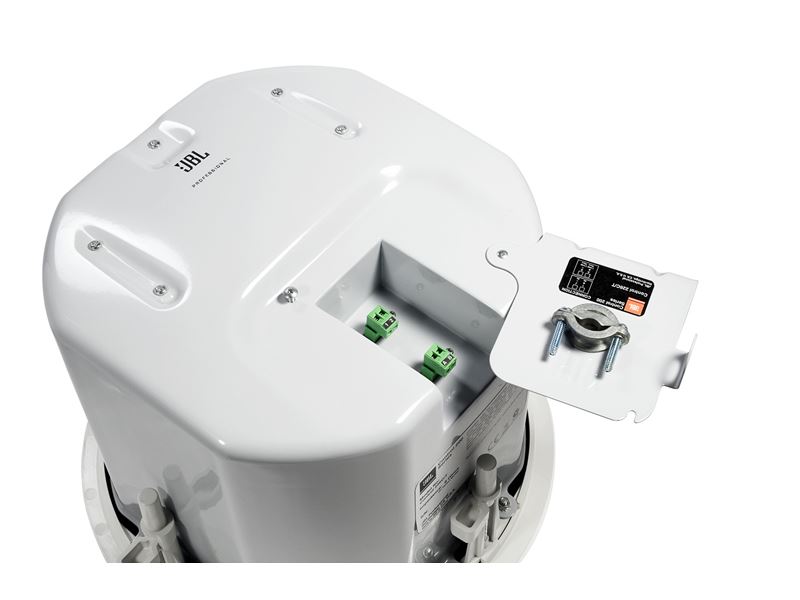

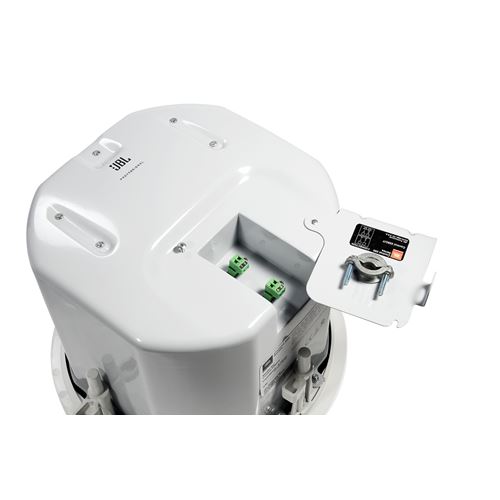

| Input Connectors | Removable locking connector with screw-down terminals. |
| Color | White |
| Safety Agency | Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
| Backcan | formed steel (included "blind-mount") |
| Baffle/Rim | ABS baffle with UL94-V0 flame class fire rating. |
| Ceiling Cutout Size | 307 mm (12.1 in) diameter (cardboard cutout template included) |
| Included Accessories | Press-in Grille, C-Ring, Tile Rails. |
| Optional Accessories | MTC-19NC New Construction Bracket MTC-19MR Mud Ring Construction Bracket |
| Plenum Usage | Yes, backcan included |
