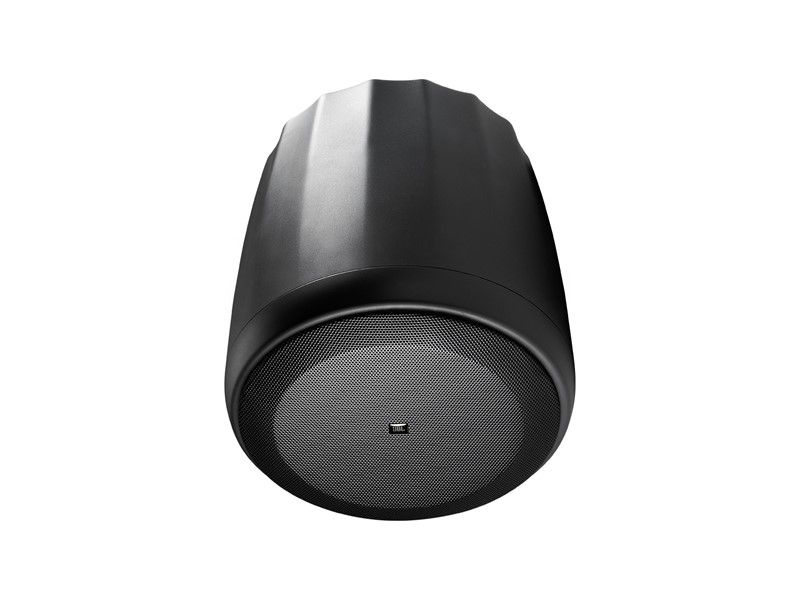

JBL Control 60 Series 75 Watts Continuous Pink Noise 6.5" Narrow Coverage High Ceiling Pendant Speaker with Transformer (Black)

CONTROL 67HC/T

JBL Professional

Whatsapp for enquiry Email for enquiry






Control 67HC’s well-controlled narrow coverage is ideal for improved voice intelligibility and musical clarity in high-ceiling venues or in rooms with difficult acoustics, such as convention centers, transit centers, exhibit venues and hotel atrium areas.


Features

  • RBI Radiation Boundary Integrator Technology
  • Well-controlled 75° coverage for excellent clarity in high-ceiling and reverberant locations
  • 6.5" (165 mm) low-frequency with silk-dome tweeter for outstanding sonic fidelity
  • High 93 dB sensitivity
  • 75 Watts, 8 ohms and 60W multi-tap transformer
  • Black or white


Frequency Range (-10dB) 75 Hz – 17 kHz
Frequency Range (±3 dB) 110 Hz – 16 kHz
Power Rating 75 Watts Continuous Pink Noise Power (with 300 Watts peaks)150 Watts Continuous Program Power
Nominal Sensitivity 93 dB
Coverage Angle 75° (+15°/-20°)
Directivity Factor (Q) 10.4
Directivity Index (DI) 9.8 dB
Maximum SPL (1m) 112 dB continuous pink noise, 118 dB peak
Impedance 8 ohms
Transformer Taps 70V: 60W, 30W, 15W & 7.5W100V: 60W, 30W, 15W
Transformer Insertion Loss 0.5 dB @ 7.5 W, 0.5 dB @ 15 W, 0.6 dB @ 30 W, 0.7 dB @ 60 W
Drivers LF: 165 mm (6.5 in) polypropylene-coated paper with pure butyl rubber surround, 25 mm (1 in) copper voice coil, vented fiberglass resin voice coil-former
HF: 25 mm (1.0 in) textile soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former
Enclosure High impact polystyrene
Grille Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
Outdoor Capability Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splashproof rating.

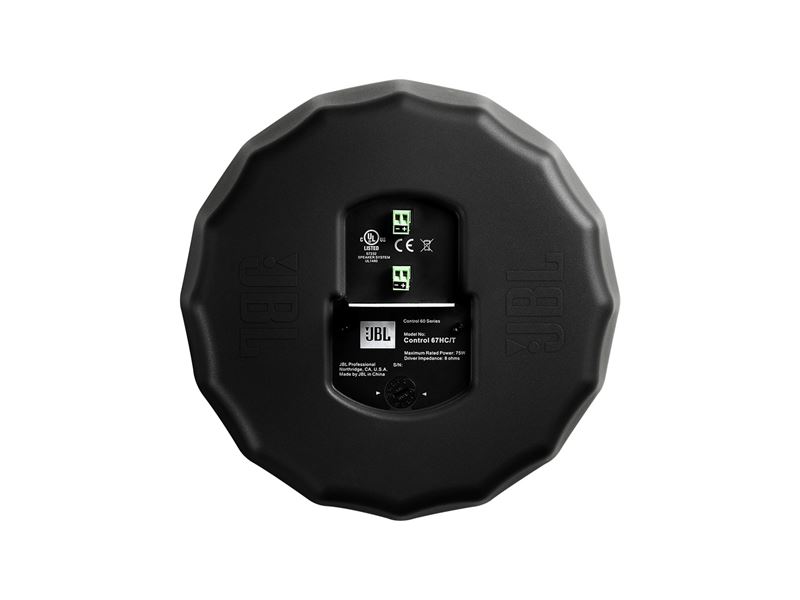

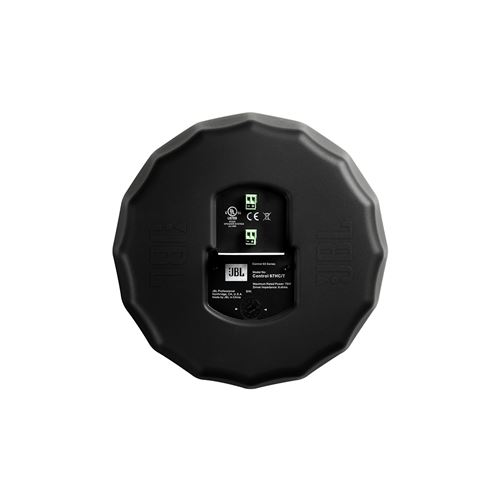

Input Connectors Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
Suspension Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).
Safety Agency Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
Dimensions (H x W x D) 333 mm (13.1 in) diameter x 344 mm (13.6 in) height to top of cabinet. 369 mm (14.5 in) to top of suspension bracket.
Net Weight (each) 5.9 kg (13 lbs)
Shipping Weight (pair) 14.1 kg (31 lbs)
Included Accessories Two suspension cable systems (see “Suspension”, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors.
Optional Accessories MTC-PC60HC top panel / terminal cover
Colors Available in black or white (-WH). Paintable.
