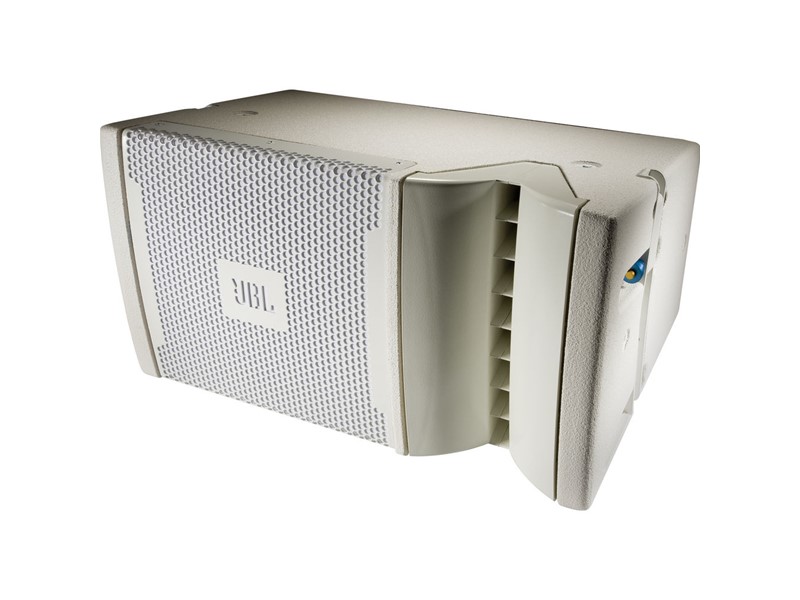

The VRX928LA is a lightweight (28 lb / 13 kg) compact 8" two-way linearray speaker system designed for use in arrays of up to six units.
Features
- Constant Curvature Array - The waveguide mounts two compression drivers on a continuous arc enabling them to work together acoustically as if they were a single driver.
- Amplitude Shading- Convenient series of switches on each enclosures that controls the output of each high frequency section in the array.
- Suspension and Rigging.
- Dual Angle Pole Socket - JBL's dual angle pole sockets allow great flexibility in aiming the enclosure
(not on - WH version) - Differential Drive® Woofer.
| Power Rating | 400 W / 800 W / 1600W |
| Frequency Range (-10dB) | 70 Hz - 20 kHz |
| Dimensions (H x W x D) | 230mm x 420mm x 270mm (9.0in x 16.5in x 10.5in) |
| Coverage Pattern | 100 x 15 nominal |
| Frequency Response (±3 dB) | 85 Hz - 19 Hz |
| Crossover Modes | Bi-amp / passive, |
| Crossover Frequency | 2.0 kHz |
| Net Weight (each) | 12.7 kg (28 lb) |
| Inputs | Neutrik® Speakon NL-4 (x2) |
| Outputs | 1 x XLR |
| Enclosure | Duraflex coated plywood |
| System Type | Constant Curvature 8" Two-Way Line Array System |
| Maximum SPL (1m) | 122 dB SPL peak (passive mode) LF: 122 dB (bi-amp mode) HF: 128 dB (bi-amp mode) |
| Nominal Impedance | Passive = 8 ohm |
| Bi-amp LF = 8 ohm | |
| Bi-amp HF = 16 ohm | |
| LF Driver | 1 x 200 mm (8 in) Differential Drive® woofer |
| HF Driver | 2 x 25 mm (1.0 in) neodymium compression driver |
| Suspension / Mounting | Dual 36 mm pole socket included. Suspension requires optional VRX-SMAF line array frame kit or M10 eyebolts. |
