| Frequency Range (-10dB) |
55 Hz - 19.5 kHz |
| Coverage Pattern (-6 dB) |
Horizontal: 60; Vertical: 60 |
| System Input Power Rating |
Passive: 1250 W Continuous (IEC / 100
hour) Active: LF: 1250 W Continuous (IEC / 100 hour)
HF: 100 W Continuous (IEC / 100 hour) |
| Maximum SPL (1m) |
136dB (Preset: VTX M20 FR) |
| System Latency3 |
3.33ms |
| System Processing |
Crown Audio I-Tech HD Series Crown
Audio I-Tech 4x3500HD |
| Nominal Impedance |
Passive: 4 ohms |
| Active
LF: 4 ohms |
| Active
HF: 8 ohms |

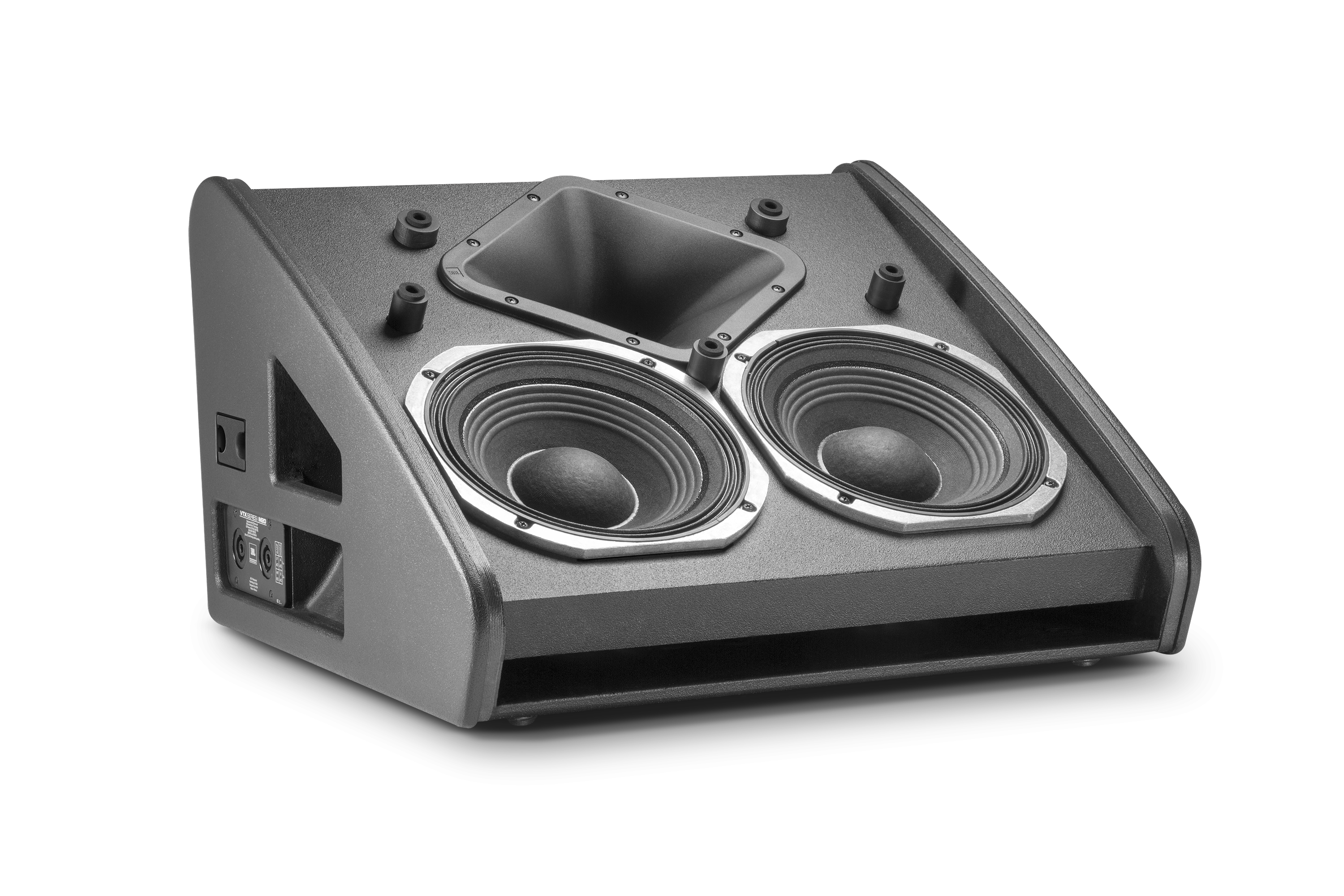

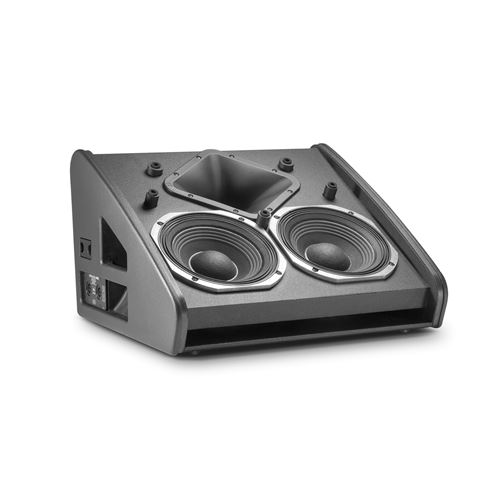

| LF Driver |
2 x 2261H, 254 mm (10 in) diameter,
dual 76 mm (3 in) diameter voice coil, NDD®, Direct Cooled™ |

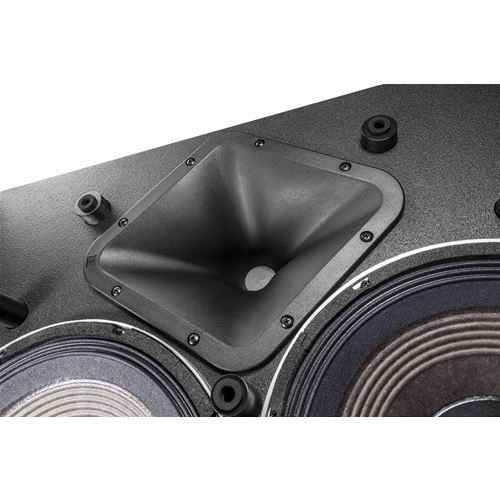

| HF Driver |
1 x D2430H, D2 dual diaphragm, dual
76mm (3 in) diameter voice coil |

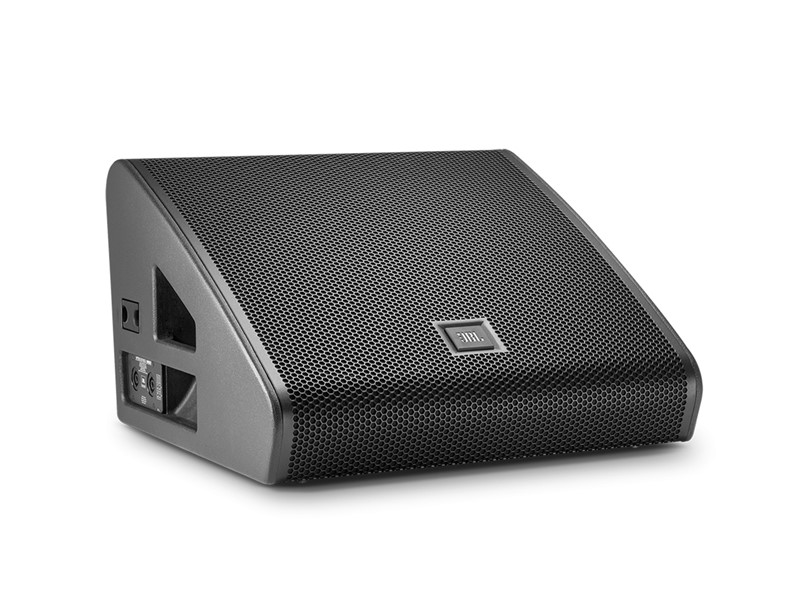

| Monitor Angle |
30 degrees |
| Enclosure |
18 mm, 11-ply Finnish birch plywood |

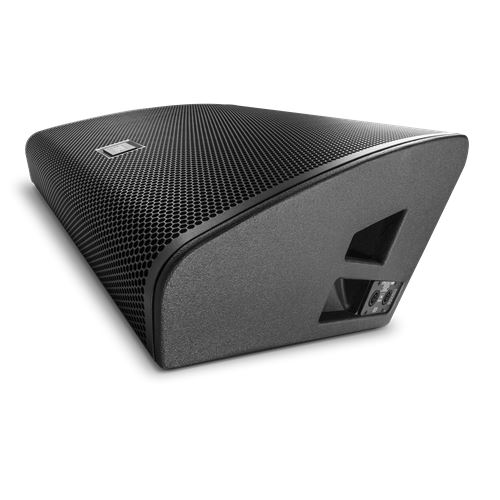

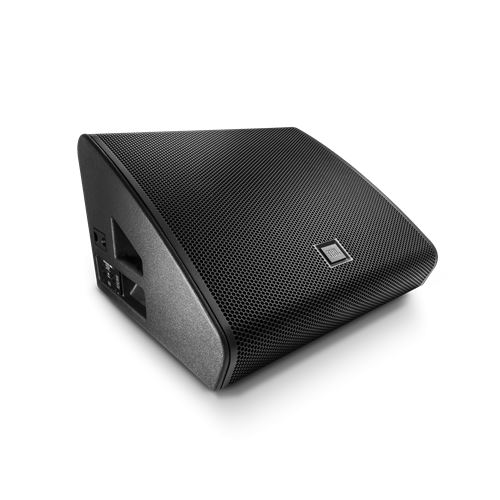

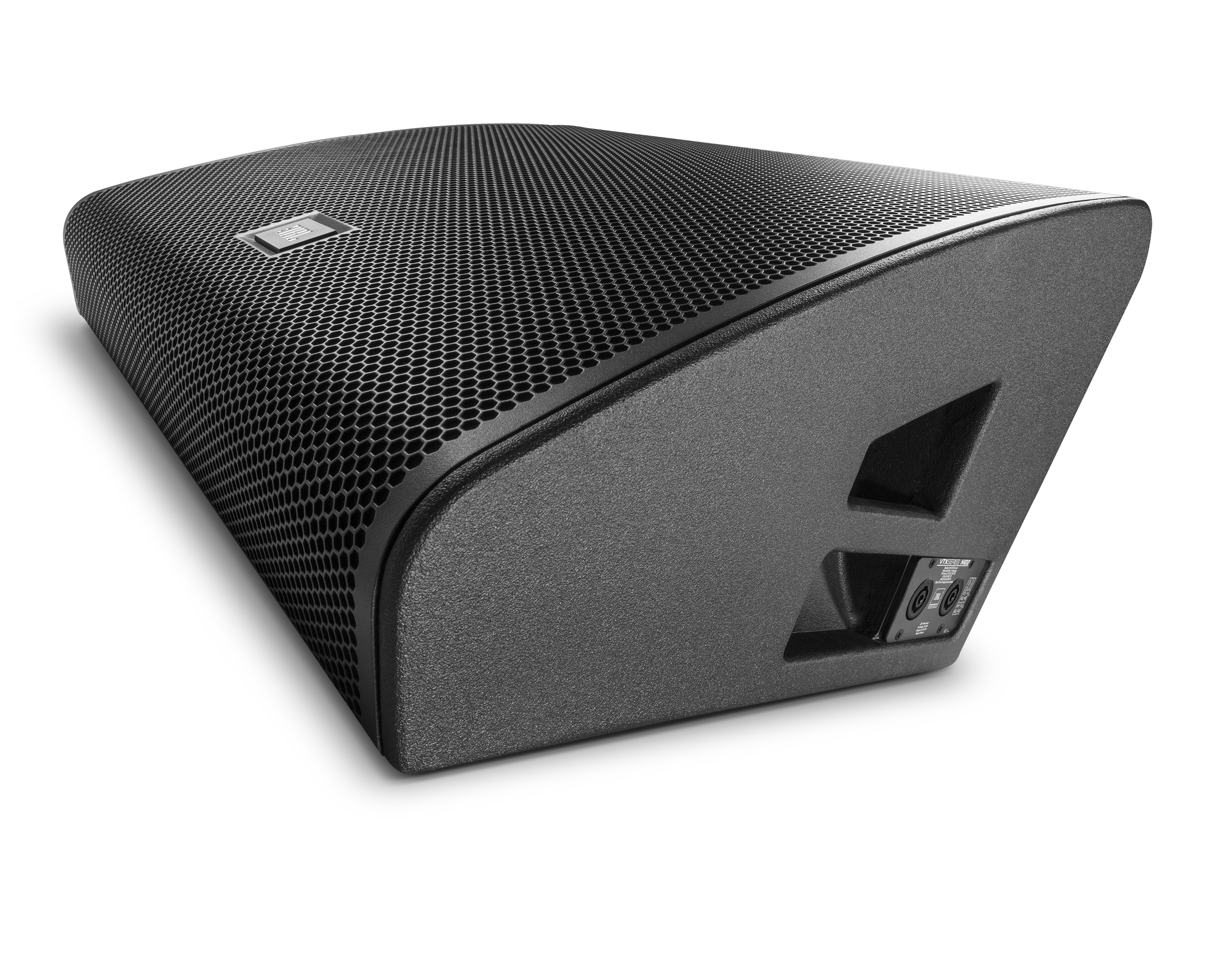

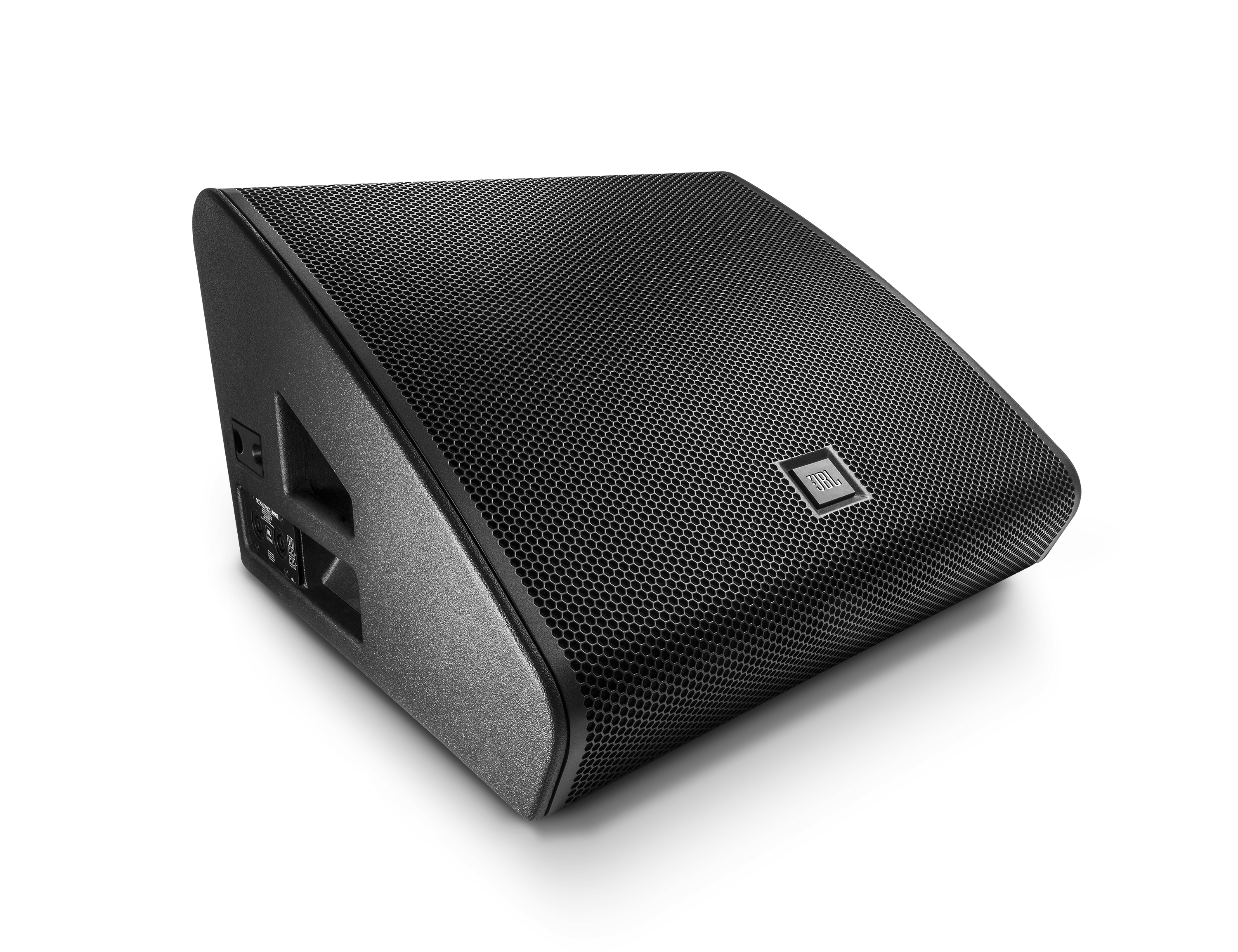

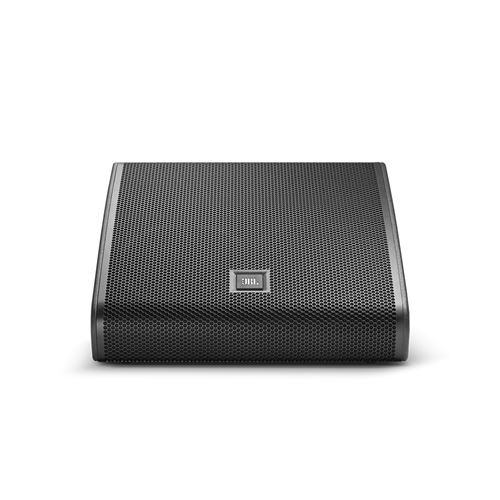

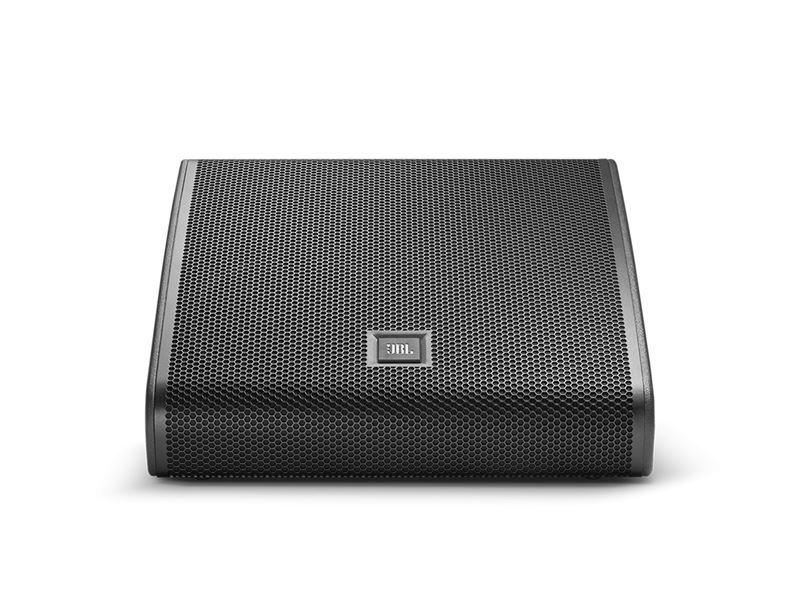

| Grille |
Powder Coated 14 gauge hex-perforated
steel with acoustically-transparent black cloth backing |

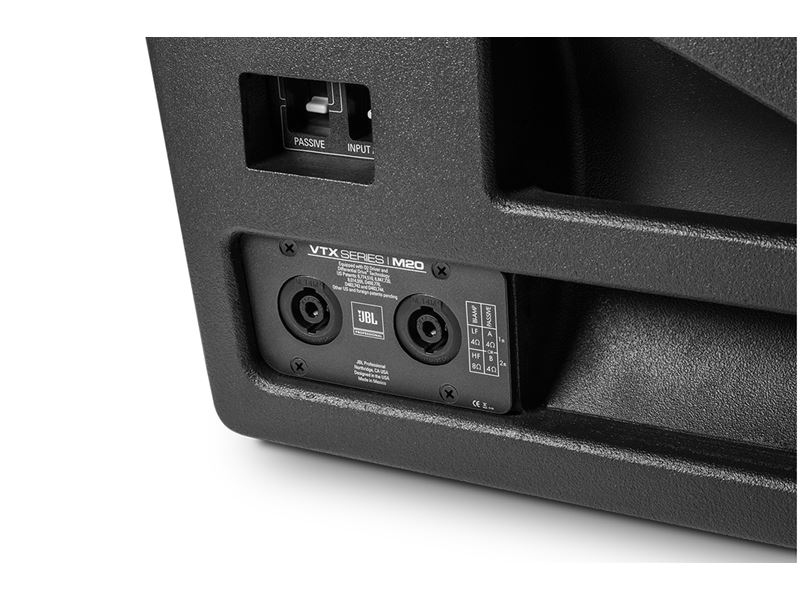

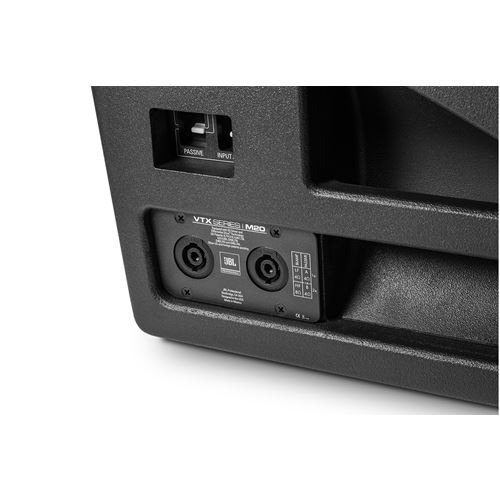

| Input Connectors |
Passive: Neutrik® Speakon® NL-4 (4x):
Selectable: Pins 1 ± or Pins 2 ± Active: Neutrik® Speakon® NL-4 (4x): Pins 1
± (LF) | Pins 2 ± (HF) |
| Dimensions (H x W x D) |
342.9 mm x 575.0 mm x 515.3 mm (13.6
in x 22.6 in x 20.3 in) |
| Net Weight (each) |
23 kg (51 lbs) |
