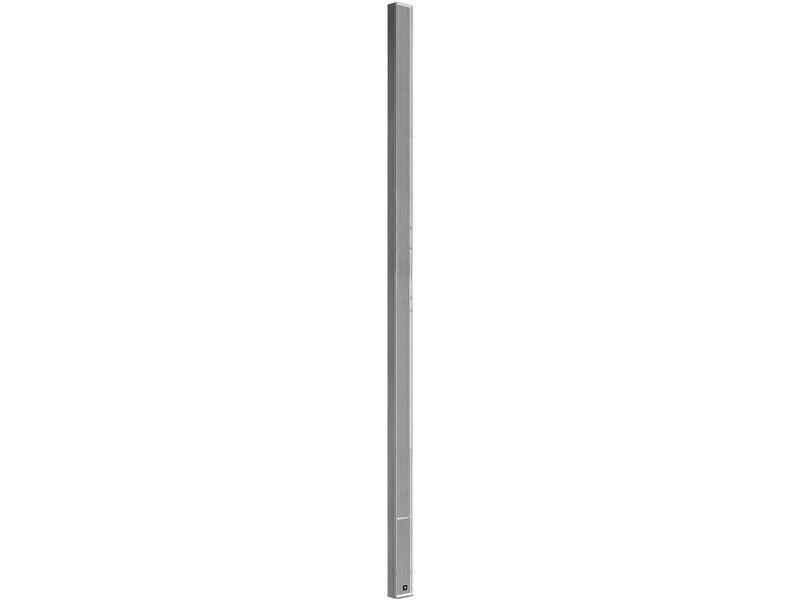

JBL Intellivox Series DC380 16 x 40 Watts RMS 20 x 4" Full Range Digitally Steerable Active Column Loudspeaker (Amp at Bottom)

IVX-585300/230

JBL Professional

Whatsapp for enquiry Email for enquiry






The Intellivox-DC380 has proven to be a versatile and effective solution for vocal reinforcement within reverberant venues, offering excellent speech intelligibility even in demanding acoustic conditions. The Intellivox-DC380 is capable of providing a constant sound pressure level over a distance of up to 45 m, although a substantial extension of this range can be achieved in less demanding acoustical conditions. The twenty, custom designed, 4” loudspeakers are driven by a sixteen channel class-D amplifier, power for which is provided by a sophisticated switched mode power supply, all of which combine to ensure years of reliable operation. The loudspeakers themselves are arranged in accordance with our patented algorithm.


An extensive set of surveillance functions have been implemented to meet the stringent demands of typical Voice Alarm (life safety) applications. The unit can be controlled using our proprietary WinControl software which offers user friendly control of the beam steering parameters, audio processing, pre-sets and surveillance features. Its compact array length makes the Intellivox-DC380 suitable for easy and unobtrusive implementation in even the most architecturally sensitive environment.


Features

  • Superb Speech Intelligibility
  • Slim Unobtrusive Design
  • Wide Horizontal Dispersion
  • Vertical Beam Steering
  • 32-bit floating point DSP
  • Control of Vertical Beam
  • Dual Line Inputs
  • Volume Control
  • Delay (up to 20 seconds)
  • 8 band parametric EQ
  • 8 user definable, password protected presets on board (recallable through third party control devices)
  • AVC (Automatic Volume Control) via build-in ambient mic.
  • Upgradeable firmware
  • Dual Lobe Software
  • Network Ready
  • Integral Surveillance
  • Simulation via DDA, Catt-Acoustic, Odeon and EASE4.3

Applications

  • Transport Hubs
  • Places of Worship
  • Conference Facilities
  • Atriums
  • Museums

Options

  • External Ambient Noise and Temperature Sensor
  • Input section with 1 x 0dBV and 1 x 100V
  • Input section with 2 x 100V
  • Full range of mounting accessories
  • Color matching service
