JBL AE Series 1000 Watts RMS Single 12" Compact High Power Subwoofer System (White)

ASB6112-WH

JBL Professional

Whatsapp for enquiry Email for enquiry

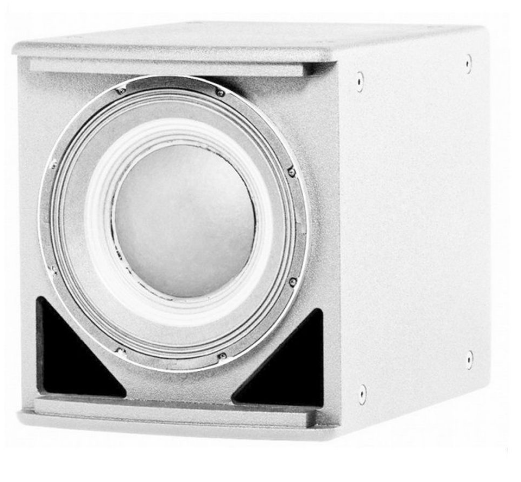

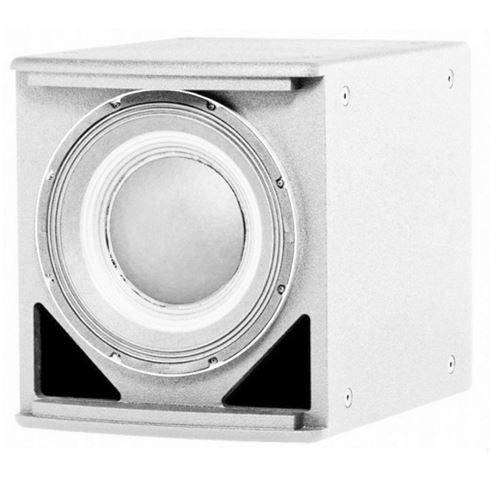

The ASB6112 is a high power, lightweight front-loaded vented subwoofer enclosure housing JBL’s 2263H Differential Drive® dual coil dual gap 12" woofer. This woofer features neodymium magnet and ultra robust cone for extra long life.


Features

  • 2263H 12" Differential Drive® dual voice coil dual gap, neodymium magnet transducer
  • 1000 watts continuous pink noise,
    4000 watts peak power handling capacity
  • Large vent area for high output with low distortion
  • FIR Tuning Set Matches Phase Profile to Full-Range Models
  • For ground-stacked or suspended applications in stand-alone arrays or in combination with other
    AE Series products


Frequency Range (-10dB) 35 Hz – 1 kHz
Frequency Response (±3 dB) 43 Hz – 1 kHz
Transducer Power Rating (AES) 1000 W (4000 W peak), 2 hrs.
System Power Rating 700 W (2800 W peak), 100 hrs.
Maximum SPL (1m) 40 Hz - 300 Hz: 126 dB-SPL cont avg (132 dB peak)
System Sensitivity 40 Hz - 300 Hz: 96 dB-SPL,1W (2.83V) @ 1m
Nominal Impedance 8 ohms
LF Driver 1 x 2263H, 305 mm (12 in) dia., 75 mm (3 in) Dual Coil Dual Gap neodymium Differential Drive® driver
Enclosure Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood
Suspension Attachment 16 points (4 top, 4 bottom, 4 each side), M10 threaded hardware
Finish Black DuraFlex™ finish.White available upon request.

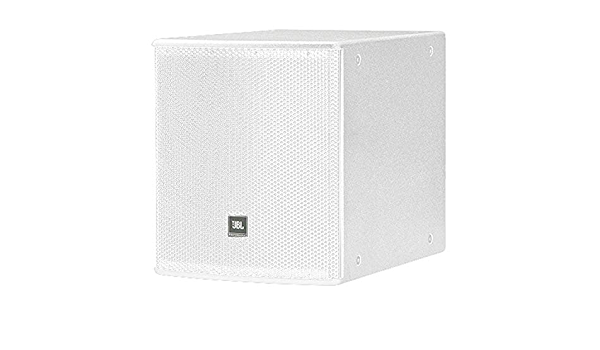

Grille Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
Input Connector NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
Environmental Mil-Std 810; IP-x3 per IEC529.
Dimensions (H x W x D in vertical orientation) 406 x 369 x 483 mm(16.0 x 14.5 x 19.0 in)
