JBL AE Series 2400 Watts RMS Dual 18" High Power Subwoofer System with Extended Response

ASB6128V

JBL Professional

Whatsapp for enquiry Email for enquiry

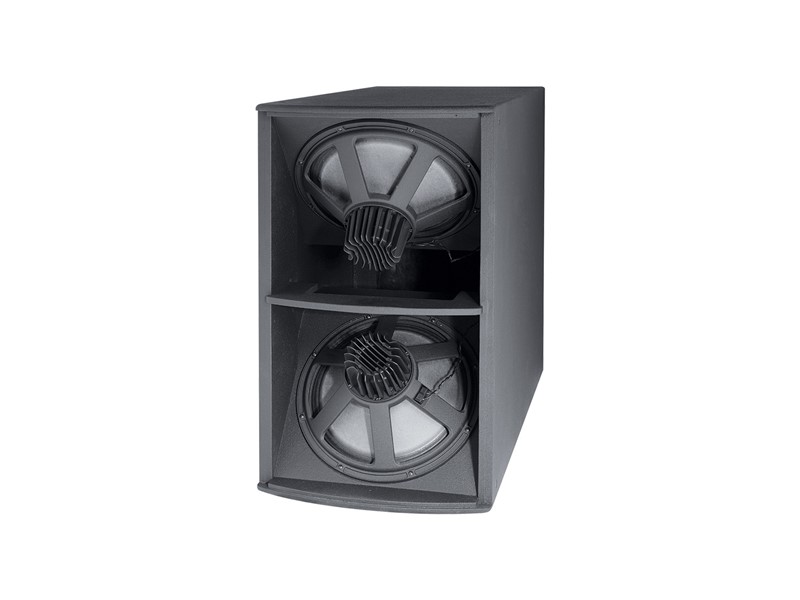

ASB6128V is a high power subwoofer system comprised of two 460 mm (18 in) NDD Neodymium Differential Drive low frequency drivers in “V”-loaded configuration.


Features

  • Driver magnets outward for maximum cooling.
  • Large vent area for high output.
  • Parallel / Discrete Switchable.
  • For fixed installation applications such as performing arts facilities, theatrical sound design, auditoriums, houses of worship, live clubs, dance-clubs/discotheques, sports facilities and themed entertainment venues.


Frequency Range (-10dB) 22 Hz – 300 Hz
Frequency Response (±3 dB) 25 Hz – 300 Hz
Input Modes Drivers Parallel / Drivers Discrete
Transducer Power Rating (AES) 2400 W (9600 W peak), 2 hrs
System Power Rating 1600 W (6400 W peak), 100 hrs
Maximum SPL (1m) 30 Hz – 100 Hz: 132 dB-SPL cont avg (138 dB peak) 100 Hz – 300 Hz: 136 dB-SPL cont avg (142 peak)
System Sensitivity (1w @ 1m) 25 Hz - 80 Hz 98 dB80 Hz - 200 Hz: 102 dB
Nominal Impedance 4 ohms in parallel-drive mode 2 x 8 ohms in discrete-drive mode
LF Driver 2 x JBL 2258H 460 mm (18 in) NDD Neodymium Differential Drive transducers with dual 75 mm (3 in) voice coil
Nominal LF Driver Impedance 4 ohms in parallel-drive mode
2 x 8 ohms in discrete-drive mode
Enclosure Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
Suspension Attachment 13 points (3 top, 3 bottom, 2 each side, 3 rear), M10 threaded hardware
Environmental Mil-Std 810; IP-x3 per IEC529.
Net Weight (each) 198 lbs. (89.8 kgs)
