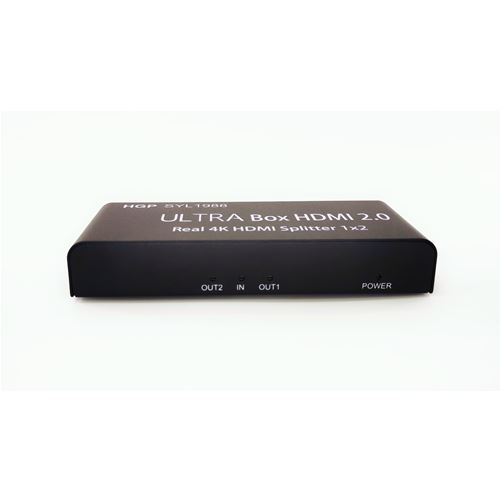

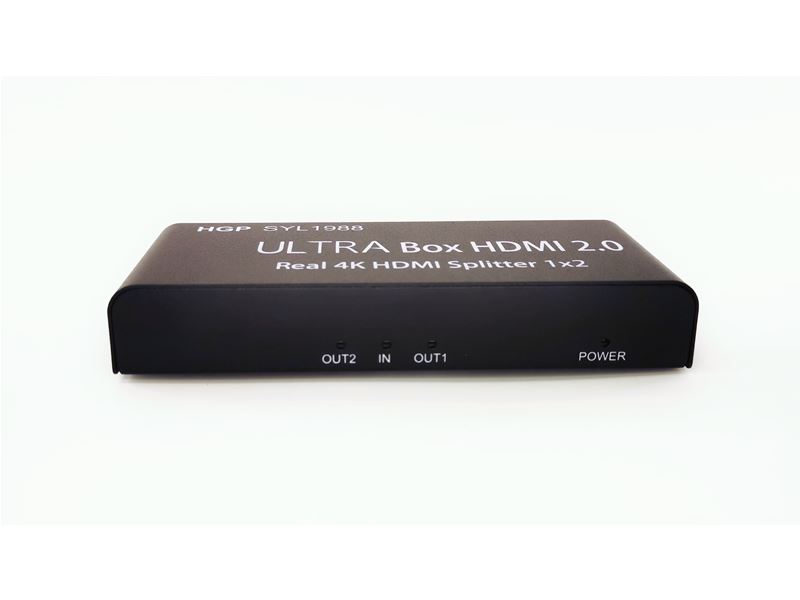

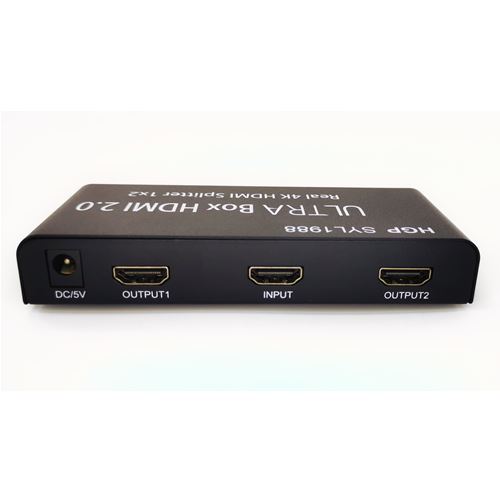

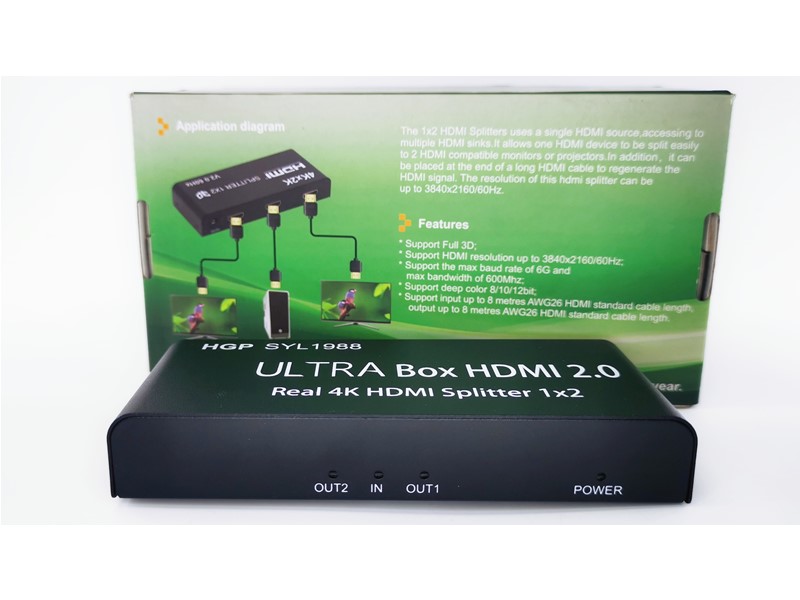

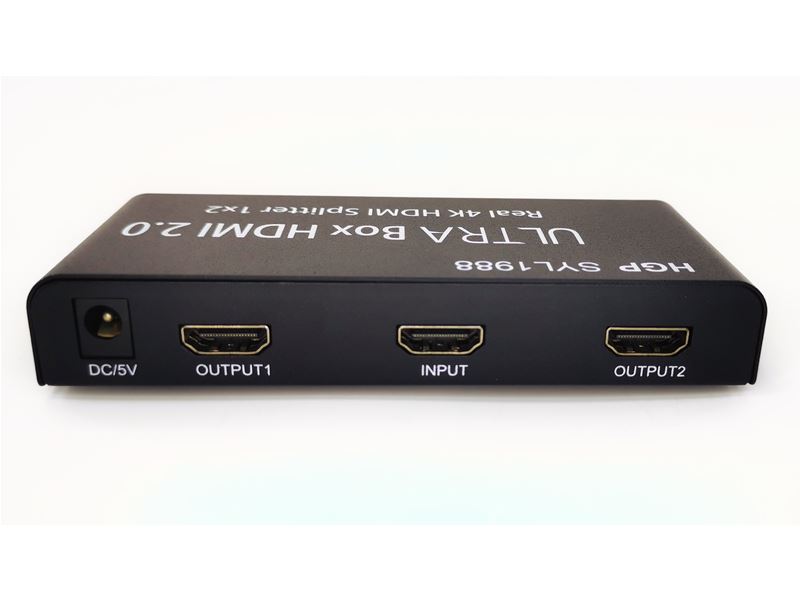

The 1x2 HDMI Splitters uses a single HDMI source, accessing to multiple HDMI sinks. It allows one HDMI device to be split easily to 2 HDMI compatible monitors or projectors. In addition, it can be placed at the end of a long HDMI cable to regenerate the HDMI signal. The resolution of this hdmi splitter can be up to 3840x2160/60Hz.
Features
- Support Full 3D
- Support HDMI Resolution up to 3840x2160/60HZ
- Support the MAX Baud Rate of 6G and Max Bandwidth of 600 Mhz
- Support Deep Color 8/10/12bit
- Support Input up to 8 Meters AWG26 HDMI Standard Cable Length, Output up to 8 Meters AWG26 HDMI Standard Cable Length
| HDMI Resolution | Up to 3840x2160/60Hz |
| Support Video Format | 8/10/12bit Deep Color |
| Support Audio Format | DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD |
| Max Bandwidth | 600Mhz |
| Max Baud Rate | 6 Gbps |
| Input Cable Distance | ≤8 AWG26 HDMI Standard Cable |
| Output Cable Distance | ≤8 AWG26 HDMI Standard Cable |
| Max Working Current | 500mA |
| Specifications of Power Adapter | Input AC (50Hz, 60Hz) 100V-240V; Output: DC5V/1A |
| Operating Temperature Range | (-15°C to +45°C) |
| Operating Humidity Range | 5 to 90%RH (No Condensation) |
| Dimension (L x W x H) | 128 x 53 x 23.5 (mm)0 |
| Weight | 139g |
