LD SYSTEMS CURV 500 Series 920 Watts RMS Portable Array System Power Set c/w Distance Bars & Speaker Cables

CURV-500PS

LD Systems

Whatsapp for enquiry Email for enquiry

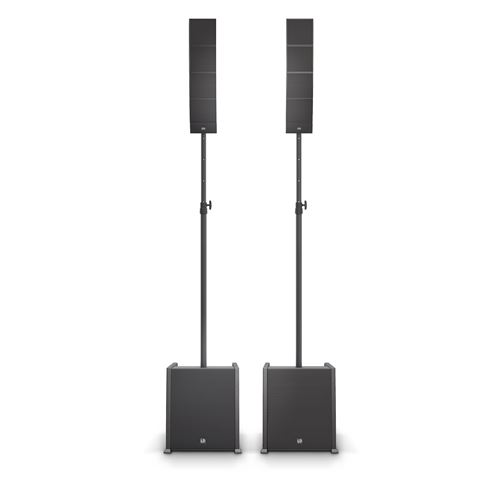

If more power is required, the patented CURV 500® Power Set can provide a power of 920 watts RMS and a maximum sound pressure of 134 dB. Two subwoofers and eight satellites offer all the advantages of the CURV 500® System and have sufficient power reserves for larger events or applications with high power requirements, especially in the bass range.

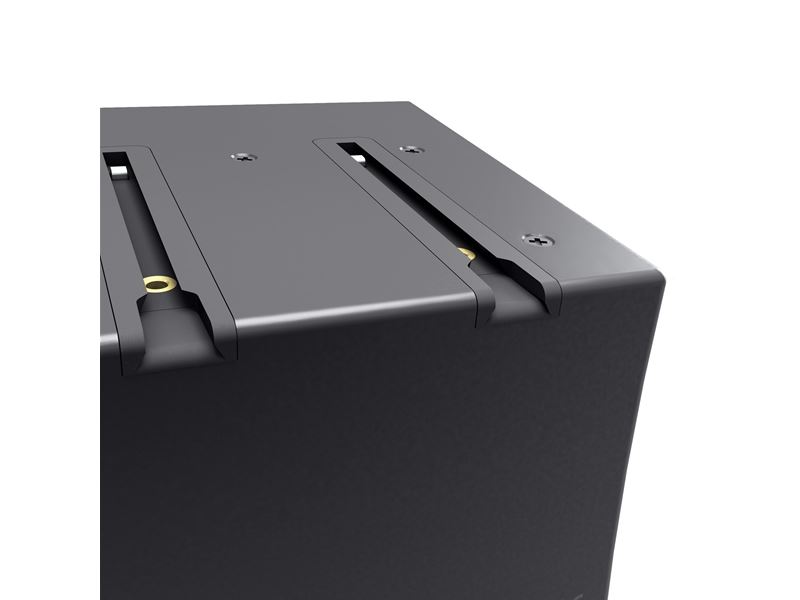

The compact, transport-friendly CURV 500® is an easily configurable array system with eight interlocking satellites, which are operated via a SmartLink® adapter. The elements, only 12 x 12 cm in size, are equipped with LD System's own WaveAhead® technology, one 4" and three 1" drivers provide a coherent and extremely detailed playback with high pressure and dynamics.

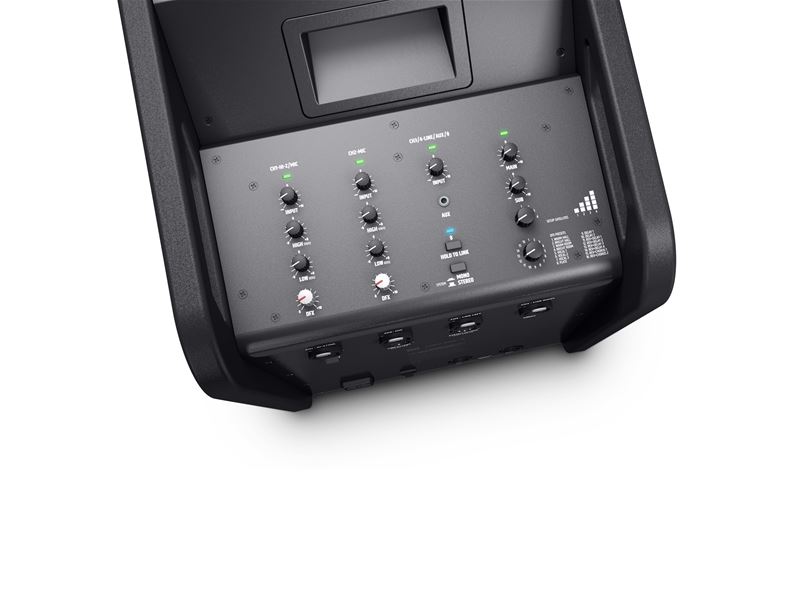

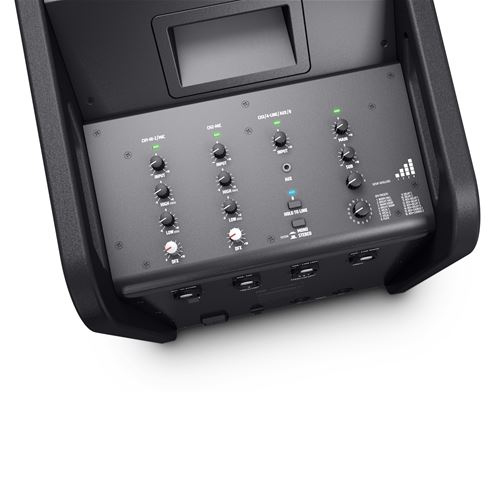

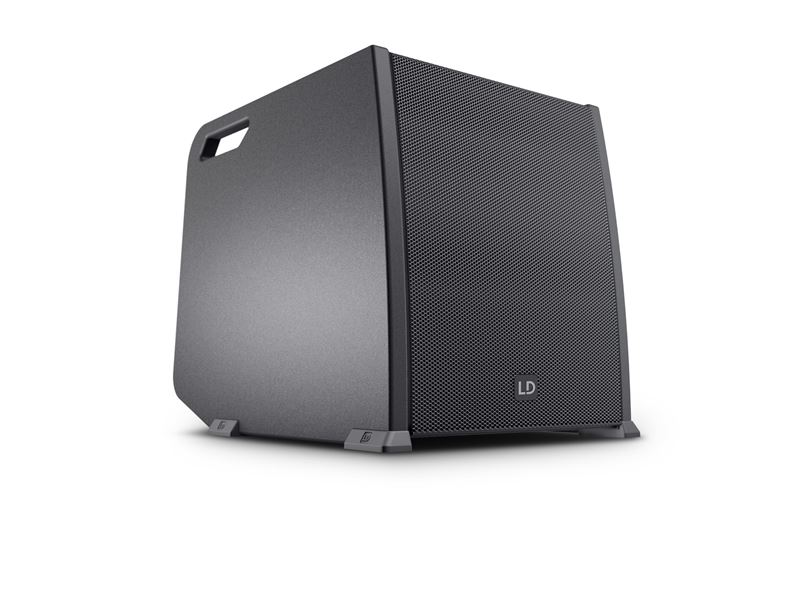

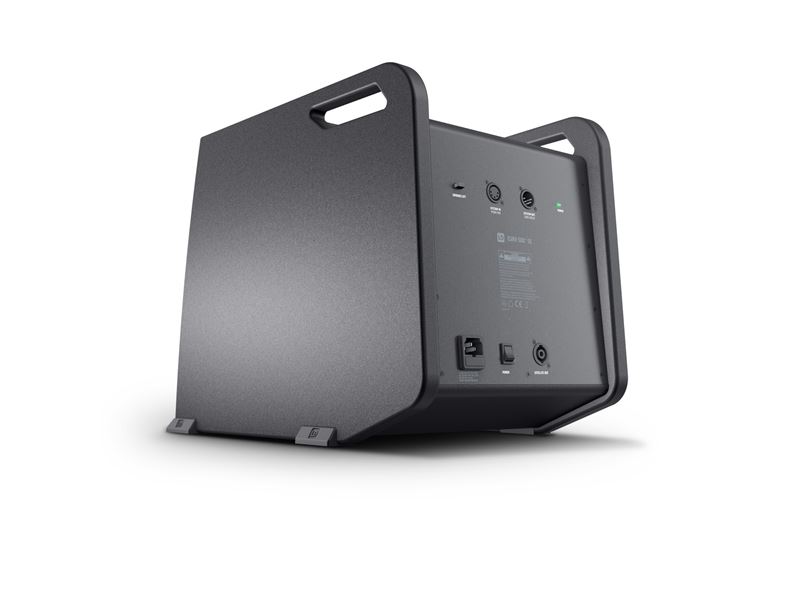

The 10" bass-reflex subwoofer houses the Class D power amplifier and includes a limiter, protection against short circuit, overheating, over-voltage, as well as a 4-channel mixer with 16 digital effect presets and Bluetooth®. Combo, and Speakon-compatible sockets offer extensive connectivity options, and the subwoofer features four digital system presets, an M20 threaded flange and three ergonomic carrying handles. The second subwoofer with its own power amplifier offers identical technical specifications, but does not require any mixer.

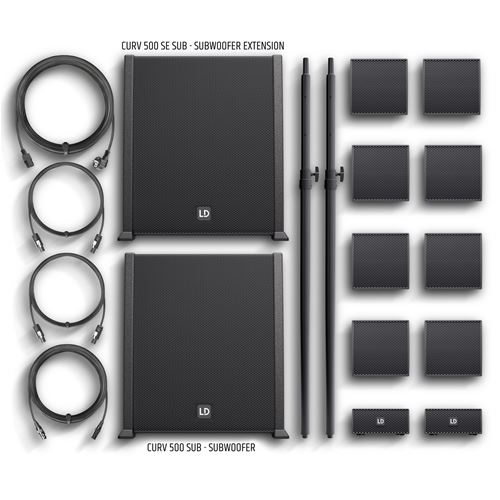

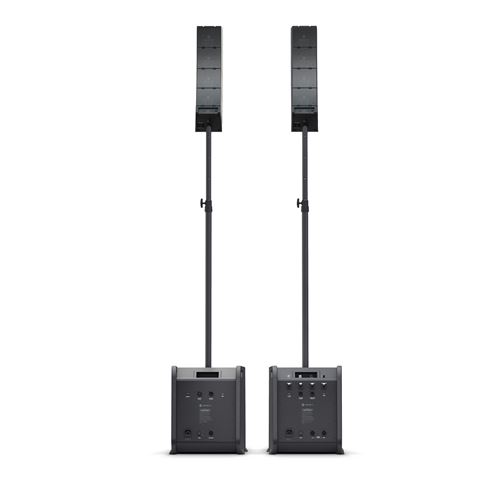

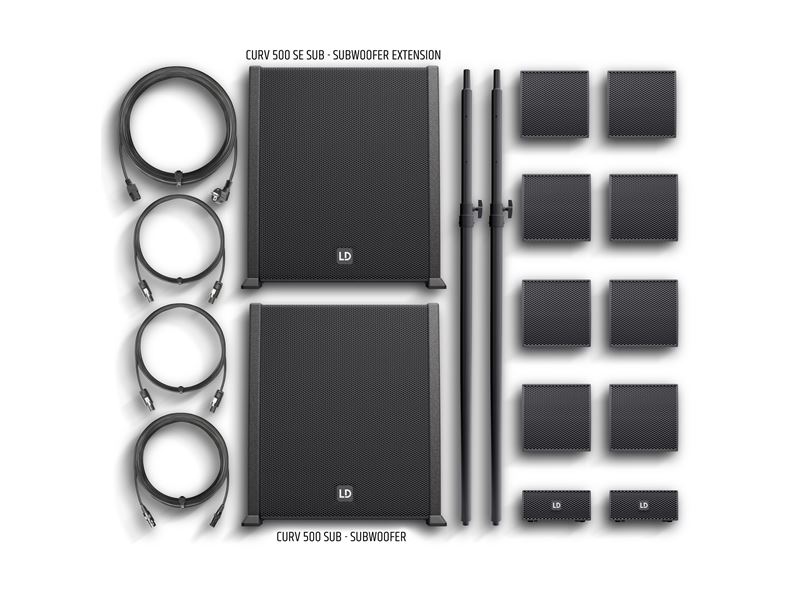

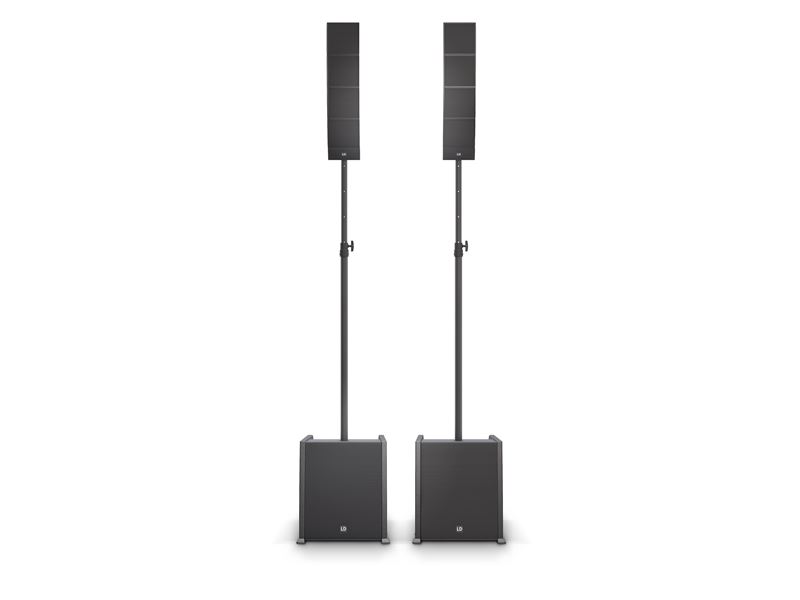

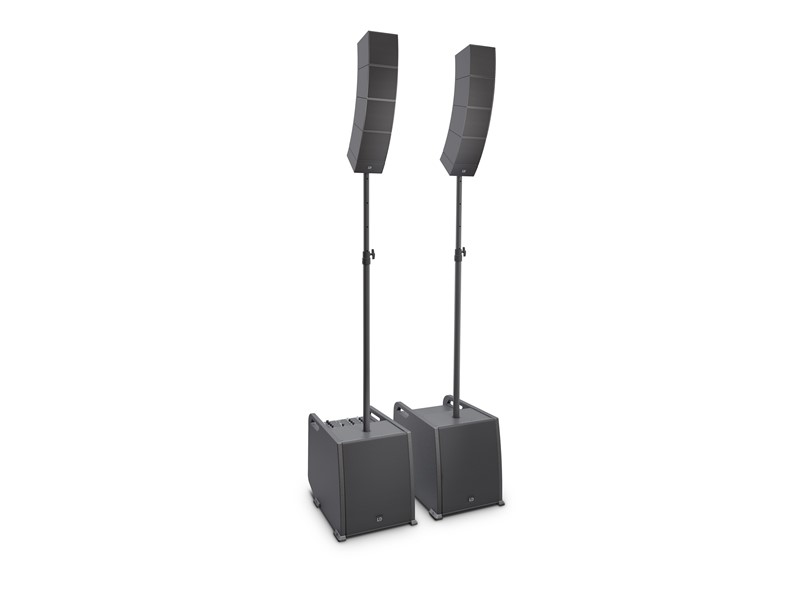

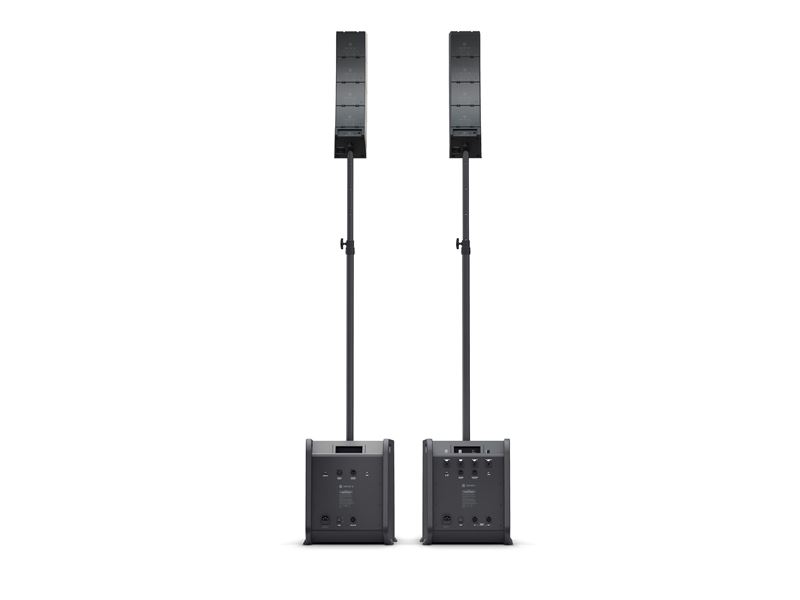

The CURV 500® Power Set includes two subwoofers, one with a mixer unit, eight satellites, two SmartLink® adapters, two extension tubes and matching speaker cables.






General
Product type PA Complete Systems
System output (RMS): 920 W
Color Black
Number of array satellites 8
Number of Smartlink adapters 2
Number of subwoofers 2
Max. SPL (continuous) 128 dB
Max. SPL (peak) 134 dB
Frequency response 47 - 20000 Hz
Dispersion (H x V) 110° horizontal, vertical (each satellite) 10 °
System Power (RMS) Subwoofer: 300 W , Array Satellites: 2 x 160 W, Subwoofer Extension 300 W
Peak power Subwoofer: 1200 W , Array Satellites: 2 x 640, Subwoofer Extension: 1200 W
Amplifier Class D
Protection circuits DSP-based multiband limiter
Weight 59,1 kg
Accessories (included) 2 x Distance bar, 2 x Power cable, 2 x Speaker cable CURV 500 CABLE 1 (2.2 m), 5-pin XLR system cable (10 m)

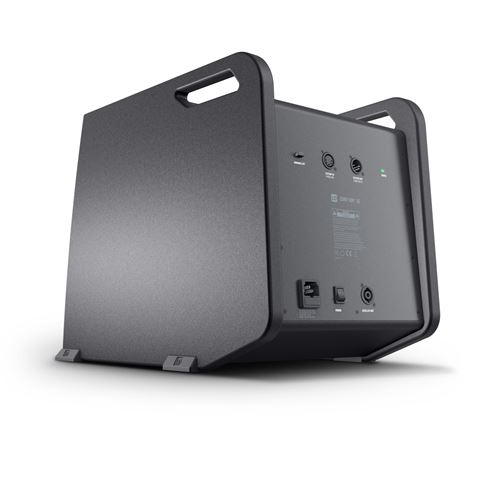

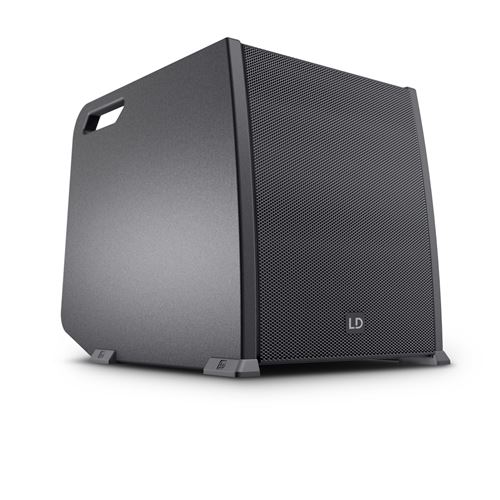

Subwoofer
Low/mid driver dimensions 10 "
Woofer size 254 mm
Cabinet construction Bass Reflex
Cabinet material plywood
Cabinet surface PA painting
Dimensions Subwoofer (W x H x D) 325 x 383 x 491 mm
Subwoofer weight 16.5 kg
Subwoofer features 16 DFX Presets, 3 ergonomic handels, 4 channel mixer, 4 System DSP Presets, Bluetooth, Threaded flange M20

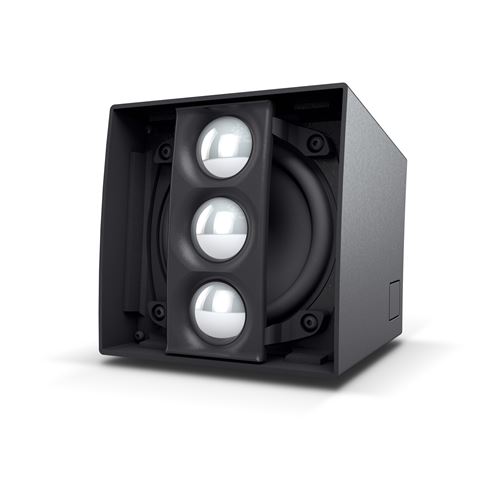

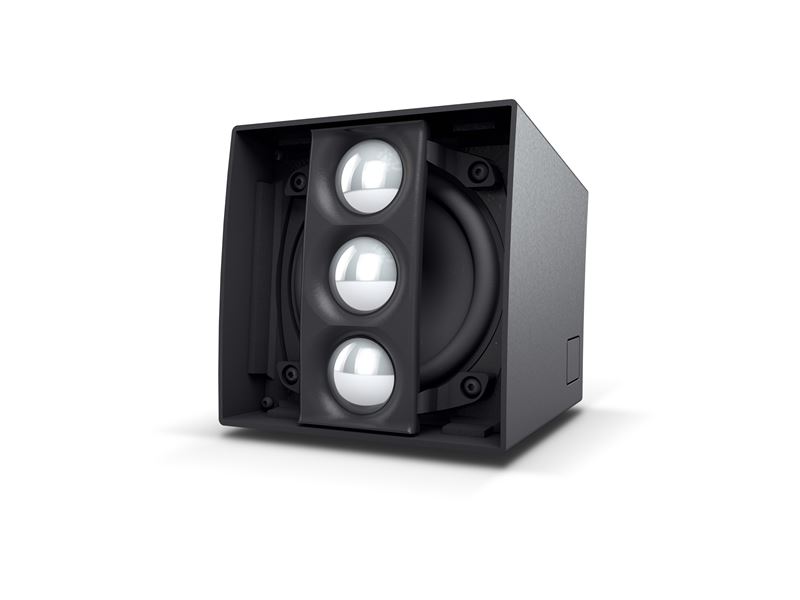

Array Satellites
Mid/Hi system MF: 1 x 4" / HF: 3 x 1" with WaveAhead® Technology / 16 ohms
Array Satellite Features internal crossover, metal grille, WaveAhead® Technology
Array Satellite Material Die-cast aluminium
Array Satellite Surface: Powder coated
Array Satellite Dimensions (W x H x D) 122 x 122 x 122 mm
Array Satellite Weight 1.7 kg

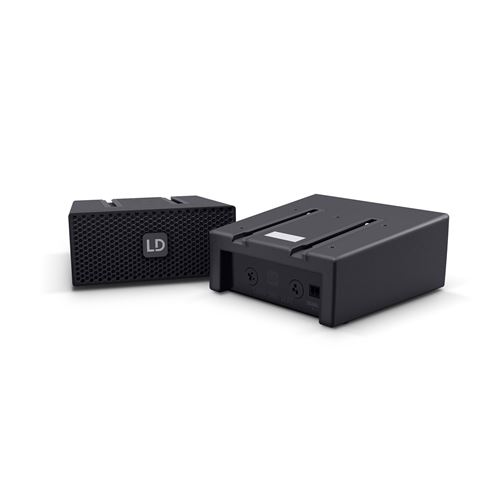

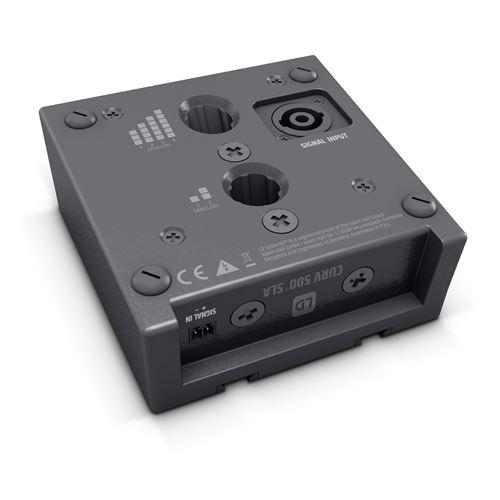

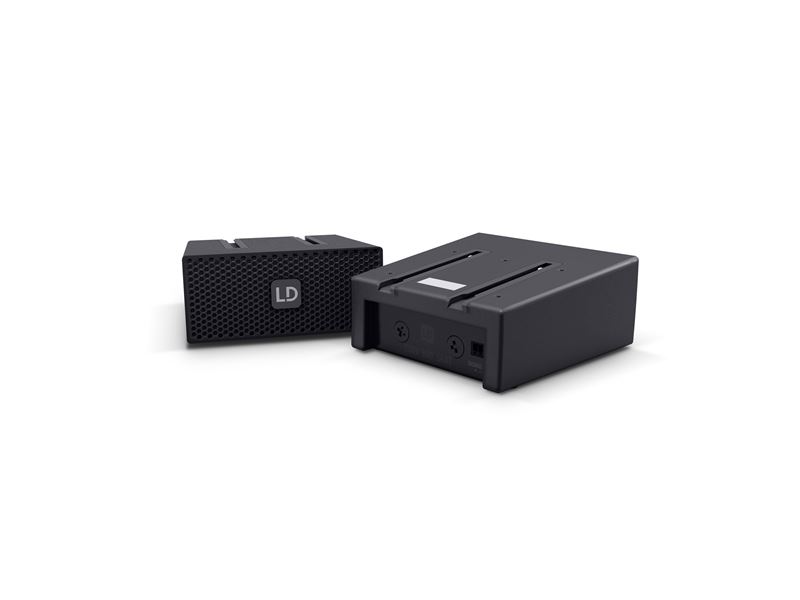

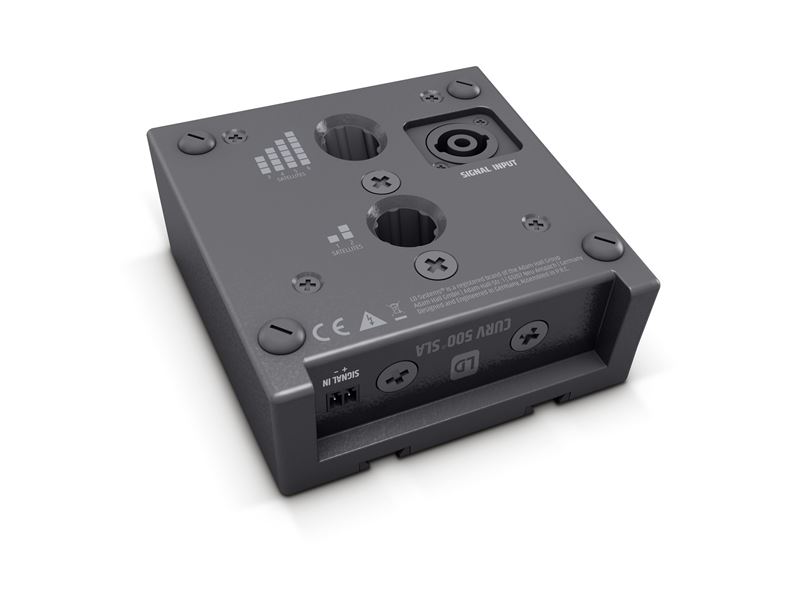

Smartlink® Adapter
Smartlink Adapter Features 2 x 16 mm pole mount socket, 2x M6 thread for optional wall mount
Smartlink Adapter Connectors 1 x Speakon-compatible, 1x Phoenix
Smartlink Adapter Material Die-cast aluminium
Smartlink Adapter Surface Powder coated
Smartlink Adapter Dimensions (W x H x D) 122 x 57 x 122 mm
Smartlink Adapter Weight 0.6 kg
