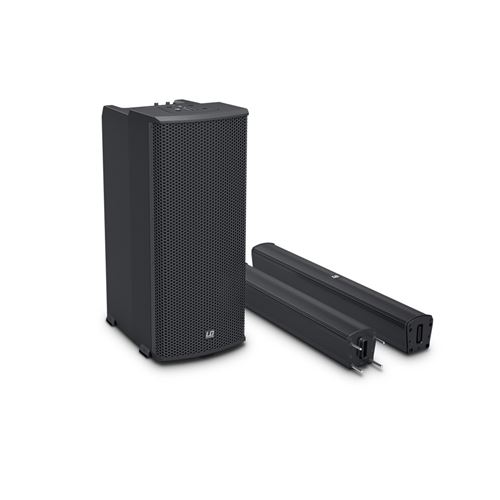

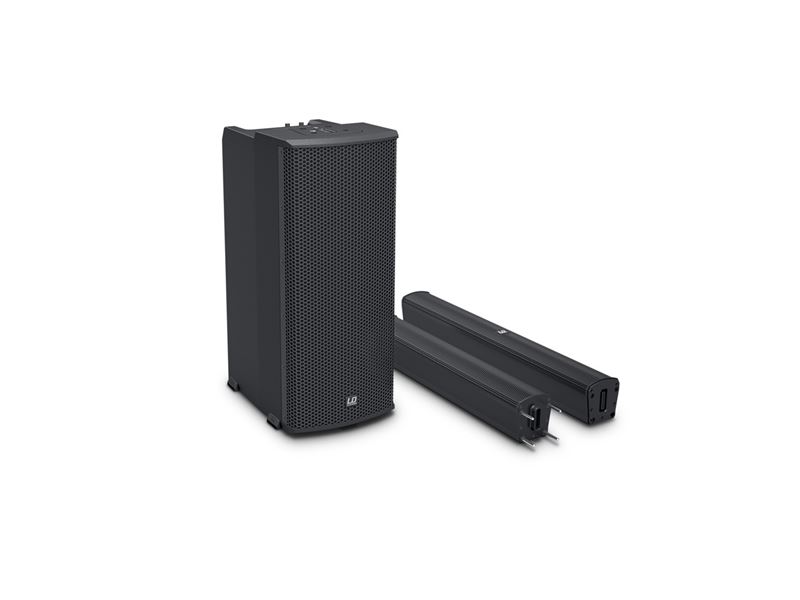

LD SYSTEMS MAUI Series 500 Watts RMS Portable Column PA System with Mixer & Bluetooth (Black)

MAUI-11/G2

LD Systems

Whatsapp for enquiry Email for enquiry






A complete sound system that you can carry together with your instrument: introducing the MAUI 11 G2. The two column elements in the padded shoulder bag, the subwoofer in one hand and the guitar or keyboard in the other - and off you go! Setting up the complete system, which doubles as a PA and monitor system is just as easy thanks to the special multi-pin cable plugs. The compact and elegant MAUI 11 G2 offers an unbeatable sound quality and wide-ranging sound distribution. It was developed after years of experience in the design of the column systems as a user-friendly solution for small to medium-sized gigs and fixed installations.

The MAUI 11 G2 is equipped with three 6.5" woofers, eight 3" full-range speakers and two 1" neodymium HF drivers. They are driven by a light Class-D power amplifier boasting 1,000 watts of peak power and producing a grunty bass, balanced mids and precise and silky highs. The DynX® DSP technology from LD Systems provides top-class performance each time and the highest level of freedom from distortion. It includes a multiband limiter which protects against overloading, an EQ, a compressor and a 3-way-crossover with run time correction.

The design of the MAUI 11 G2 line array achieves a longer range, increased resistance to feedback and a wider space coverage, which makes separate monitor speakers superfluous. The wave guide of the tweeters has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflections from the floor and ceiling and prevents sidelobe levels and thus achieves an homogeneous dispersion - Your audience hears you in the back row just as clearly as in the front.

With the integrated 4-channel mixer, system presets for mono or stereo configuration and Bluetooth® Audio Streaming, you have full control over the system. Whether you are a singer-songwriter, solo entertainer or DJ, you will be thrilled with the extraordinary sound and portability of the MAUI 11 G2. The column and the subwoofer can be set up separately: thus, the system is extremely flexible and is also an excellent choice for fixed installations. With a selection of clever transport accessories and special mounting hardware, the MAUI 11 G2 is a well thought out overall solution, down to the last details.



General
Weight 24,9 kg
Product type PA Complete Systems
Type active
Color Black
Max. SPL (peak) 124 dB
Frequency response 50 - 20000 Hz
Dispersion (H x V) 120° x 20 °
Overall height 2030 mm
Woofer characteristics
Low/mid driver dimensions 3 x 6.5 "
Woofer size 3 x 165.1 mm
Woofer magnet Ferrite
Woofer brand Custom-made
Woofer voice coil 1.5 "
Woofer voice coil (mm) 38.1 mm
Cabinet construction Bass Reflex
Cabinet material 15 mm Plywood
Cabinet surface texture paint
Subwoofer width 285 mm
Subwoofer height 650 mm
Subwoofer depth 373 mm
Subwoofer weight 16.9 kg
Mid/Hi System
Midrange size 8 x 3 "
Midrange size 8 x 76.2 mm
Midrange magnet Ferrite
Midrange brand Custom-made
Midrange voice coil 1 "
Midrange voice coil 25.4 mm
Horn Waveguide
Tweeter dimensions 2 x1 "
Tweeter dimensions (mm) 25.4 mm
Tweeter magnet Neodymium
Tweeter brand Custom-made
Tweeter voice coil 1 "
Tweeter voice coil (mm) 25.4 mm
Loudspeaker inputs 1
Speaker input connections Custom-made multipin
Cabinet construction mid/high Closed
Mid/Hi system cabinet material Aluminium
Mid/Hi system cabinet surface HD coating
Mid/Hi system width 96 mm
Mid/Hi system height 620 / 730 mm
Mid/Hi system depth 104 mm
Mid/Hi system weight 5.4 / 2.6 kg
Amplifier module (integrated in subwoofer)
Amplifier Class D
Amplifier output system (RMS) 500 W
Amplifier output system (peak) 1000 W
Protection circuits DC protection, Multiband limiter, short circuit, thermal overload
Cooling Convection
Operating Temperature 0 - 40 °C
Humidity Range 10% to 80%, (non-condensing)
Controls Bluetooth switch, Hi-Z Level, Line level, Main level, Mono/stereo switch, MP3/Bluetooth Level, Power, Sub level
Indicators Limit, mono, On, Protect (protection circuit engaged), Setup, Signal, stereo
Power connector IEC power cable (included)
Operating voltage 100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching)
Power consumption Off / On / Max. 0/11/600 W
Line inputs 2 x stereo
Line input connectors RCA, XLR/6.3 mm jack
Line outputs 1 x direct out
Line output connectors XLR
Mic inputs 1
Mic inputs XLR/6.3 mm jack
MP3 inputs 1
MP3 input connectors 3.5 mm jack
Hi-Z inputs 1
Hi-Z input connectors 6.3 mm jack
Loudspeaker outputs 1
Speaker output connections Custom-made multipin
DSP characteristics
Bit depth AD/DA converter 24 bit
Internal sampling frequency 48 kHz
Signal/noise ratio 100 dB
