LD SYSTEMS MAUI Series 200 Watts RMS Ultra-Portable Column PA System with Mixer & Bluetooth (Black)

MAUI-5

LD Systems

Whatsapp for enquiry Email for enquiry

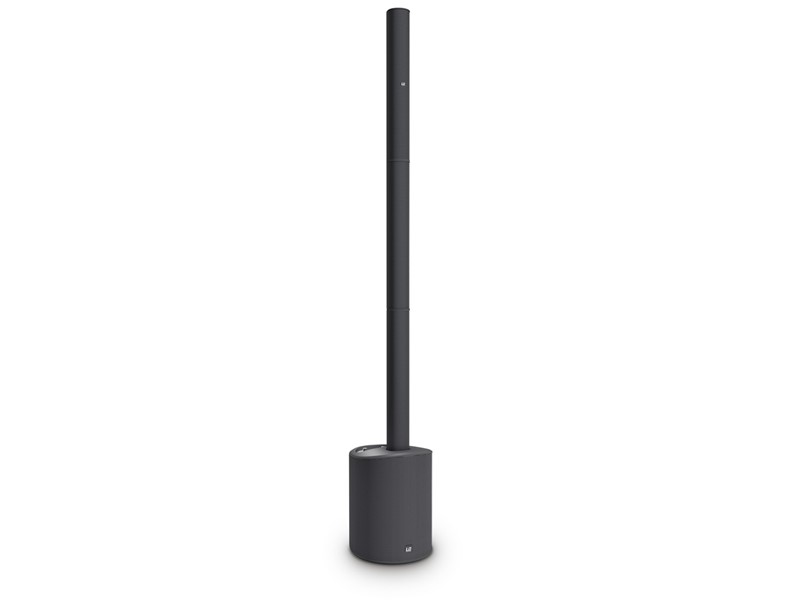

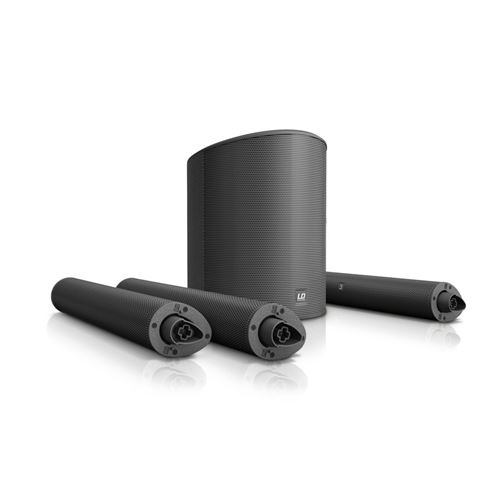

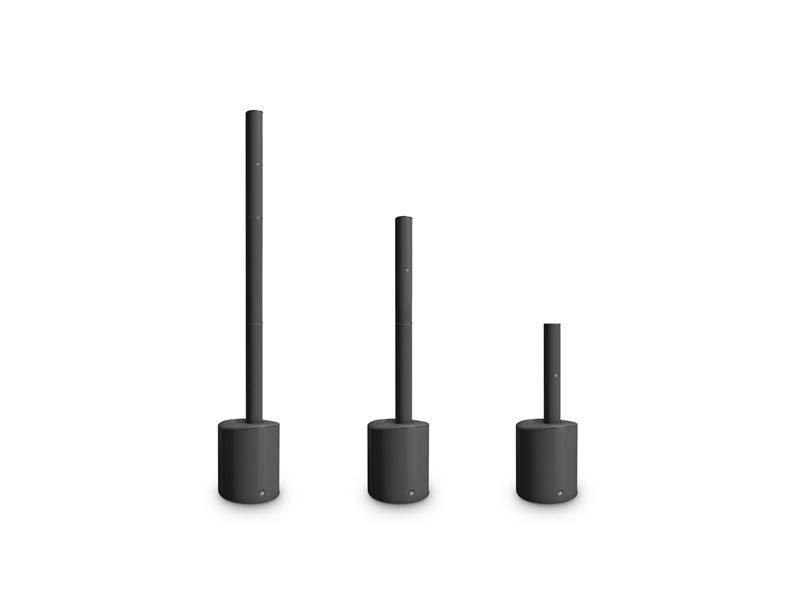

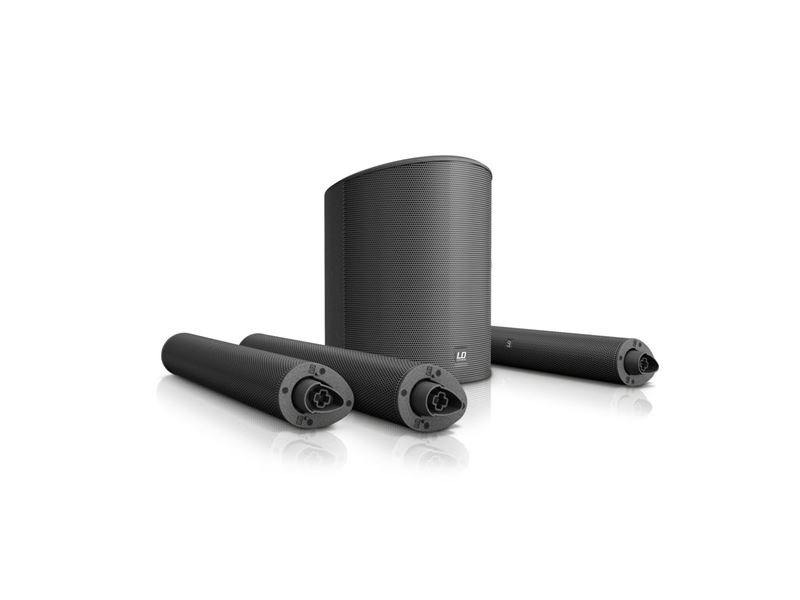

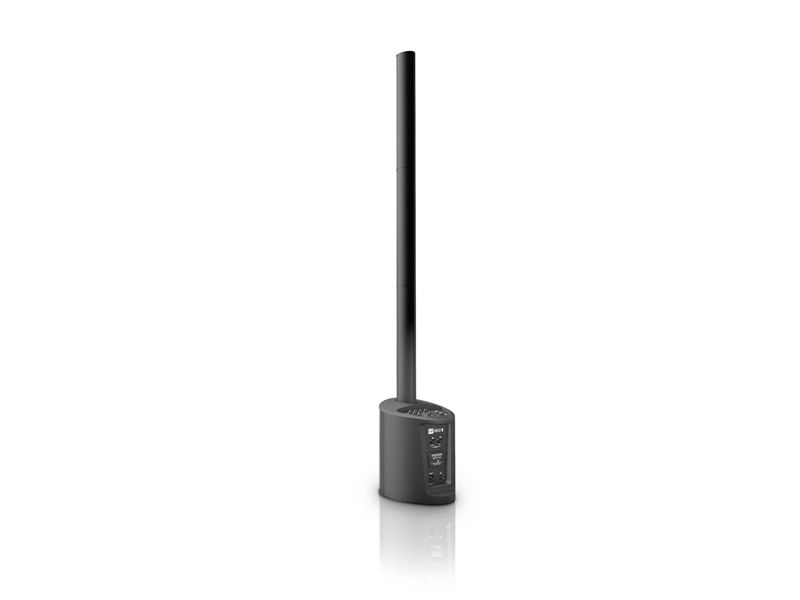

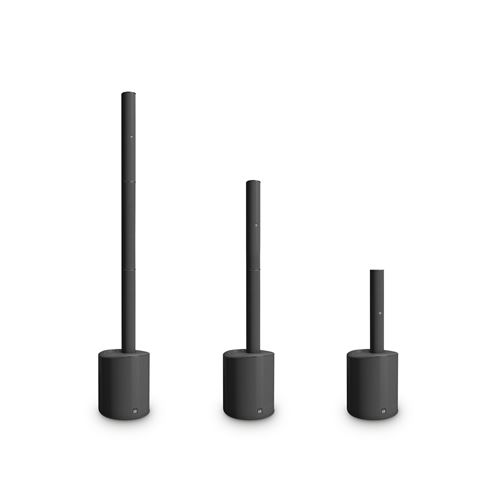

The MAUI 5 is an ultra-compact PA and monitor system in one that comes in at just under 11 kg to supply 800 watts peak performance and a maximum sound pressure of 120 dB. The smallest member of the MAUI family is assembled in a matter of seconds thanks to specially developed multi-pin connectors and only four components. It also boasts extensive sound dispersion and high feedback resistance. The MAUI 5 is easy to carry and fits on any car seat.

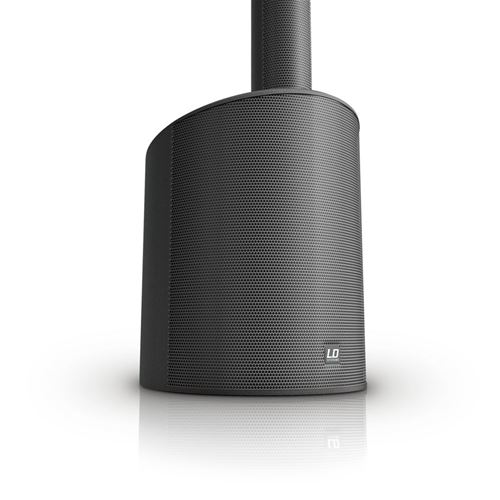

The bass reflex cabinet of the 8" subwoofer base also houses the system’s class-D amplifier unit with protection circuits against overcurrent, overheating and short-circuiting, LD Systems LECC digital signal processing, and a 4-channel mixer. Thanks to built-in Bluetooth© technology for wireless streaming alongside use of the microphone, line and high-impedance inputs, a wide variety of sound sources can be connected to the MAUI 5, including playback devices and instruments, such as keyboards or guitars. Separate level controllers, subwoofer and system volume controllers, and a high-shelf filter for adjusting treble to room acoustics ensure perfectly tuned performances. The MAUI 5 is also available in white (LDMAUI5W).



General
Weight 11,3 kg
Product type PA Complete Systems
Color Black
Max. SPL (continuous) 114 dB
Max. SPL (peak) 120 dB
Frequency response 50 - 20000 Hz
Dispersion (H x V) 120° x 20 °
Overall height 1985 mm
Other features 4 channel mixer, Bluetooth, DSP-based signal processing
Woofer characteristics
Low/mid driver dimensions 8 "
Woofer size 203.2 mm
Woofer magnet Ferrite
Woofer brand Custom-made
Woofer voice coil 2 "
Woofer voice coil (mm) 50.8 mm

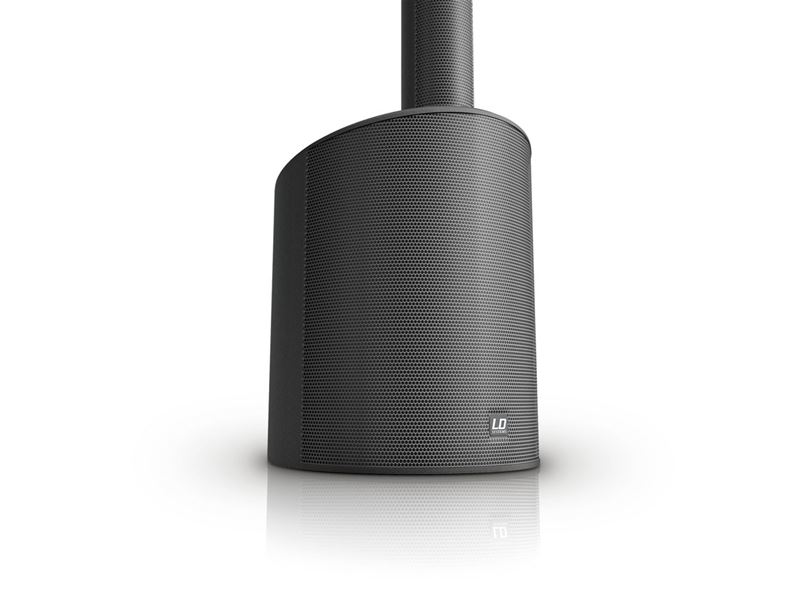

Cabinet construction Bass Reflex
Cabinet material ABS plastic
Subwoofer width 305 mm
Subwoofer height 405 mm
Subwoofer depth 395 mm

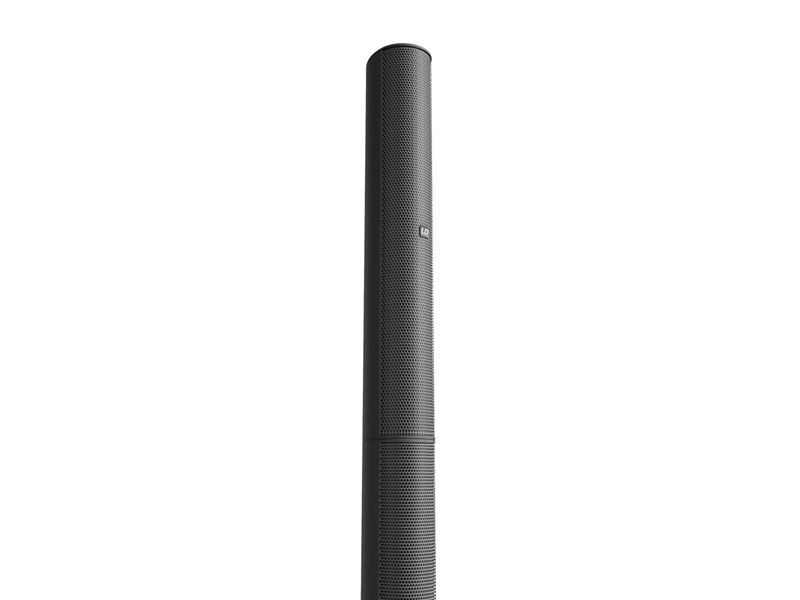

Mid/Hi System
Midrange size 4 x 3 "
Midrange size 4 x 76.2 mm
Midrange magnet Neodymium
Midrange brand Custom-made
Midrange voice coil 1 "
Midrange voice coil 25.4 mm
Mid/Hi system impedance 4 Ohm(s)
Loudspeaker inputs 1
Speaker input connections Custom-made multipin
Cabinet construction mid/high Closed
Mid/Hi system cabinet material ABS plastic
Mid/Hi system width 82 mm
Mid/Hi system height 535 mm
Mid/Hi system depth 105 mm
Amplifier module (integrated in subwoofer)
Amplifier Class D
Amplifier output system (RMS) 200 W
Amplifier output system (peak) 800 W
Protection circuits DSP-based multiband limiter, over-current, short circuit, thermal overload
Cooling Convection

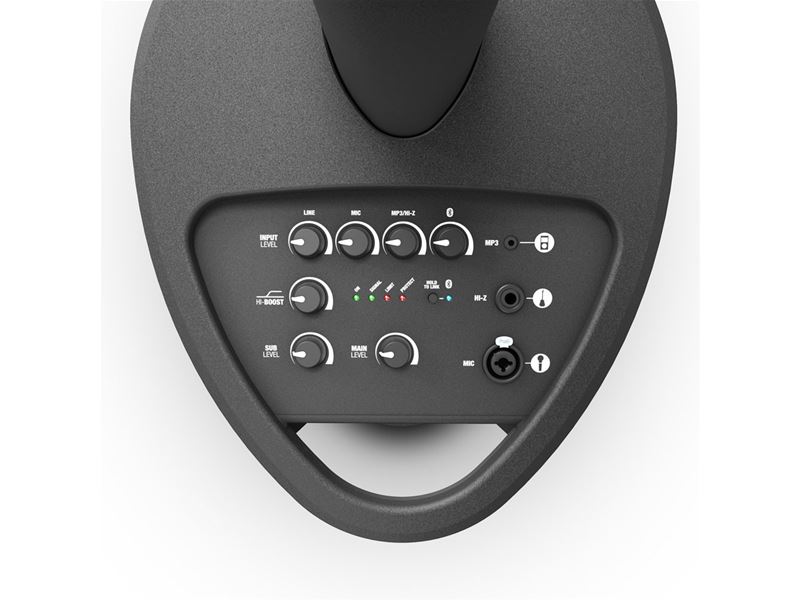

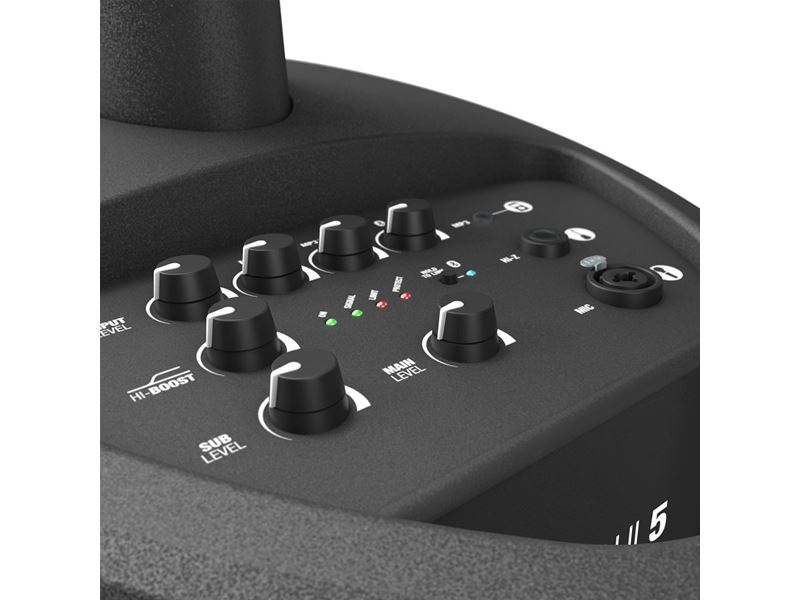

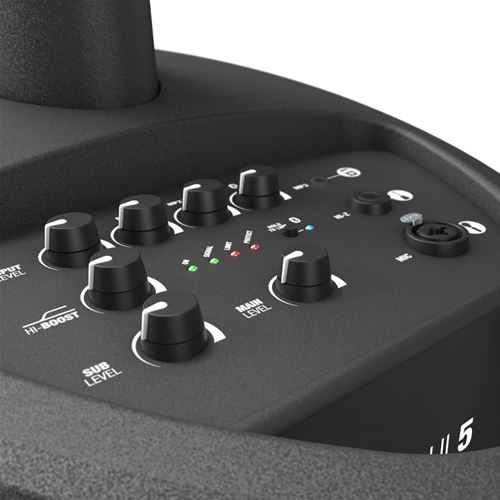

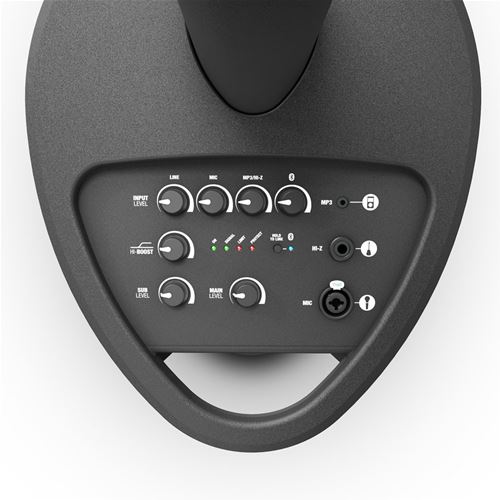

Controls BT level, BT pairing, limiter, Line level, Main level, Mic level, MP3 / Hi-Z level, On, Protect (protection circuit engaged), Signal, Sub level
Indicators Limit, On, Protect (protection circuit engaged), Signal
Operating voltage Switching power supply
Operating voltage 100 V AC - 120 V AC, 50 - 60 Hz, 200 V AC - 240 V AC, 50 - 60 Hz (Automatic conversion)

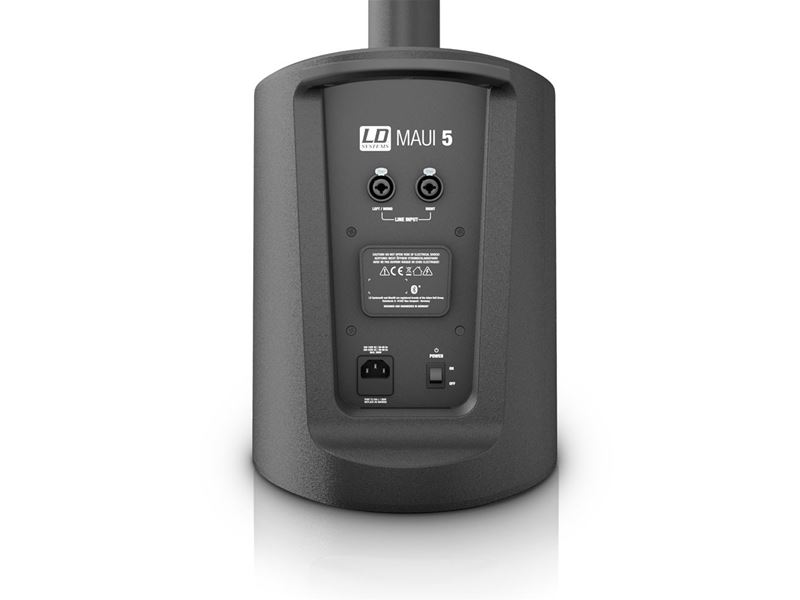

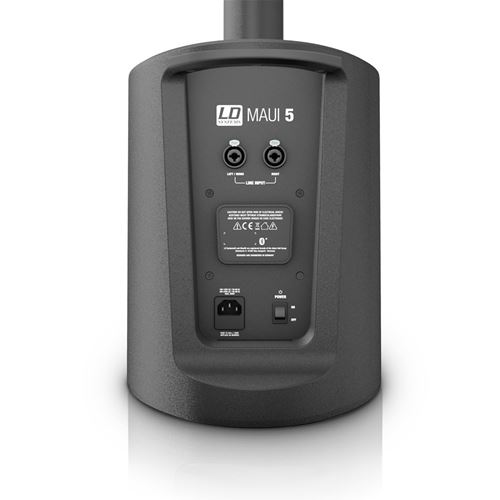

Line inputs 2 x stereo
Line input connectors 6.3 mm jack, XLR
Mic inputs 1
Mic inputs 6.3 mm jack, XLR
MP3 inputs 1
MP3 input connectors 3.5 mm jack
Hi-Z inputs 1
Hi-Z input connectors 6.3 mm jack
Loudspeaker outputs 1
Speaker output connections Custom-made multipin
DSP characteristics
Bit depth AD/DA converter 24 / 24 bit
Internal sampling frequency 48 kHz
